1 / 4SSOUNDS · SS-P15
SSOUNDS P15
Enceinte principale et de remplissage deux voies double 15″ à haut rendement, avec pavillon à directivité constante orientable.

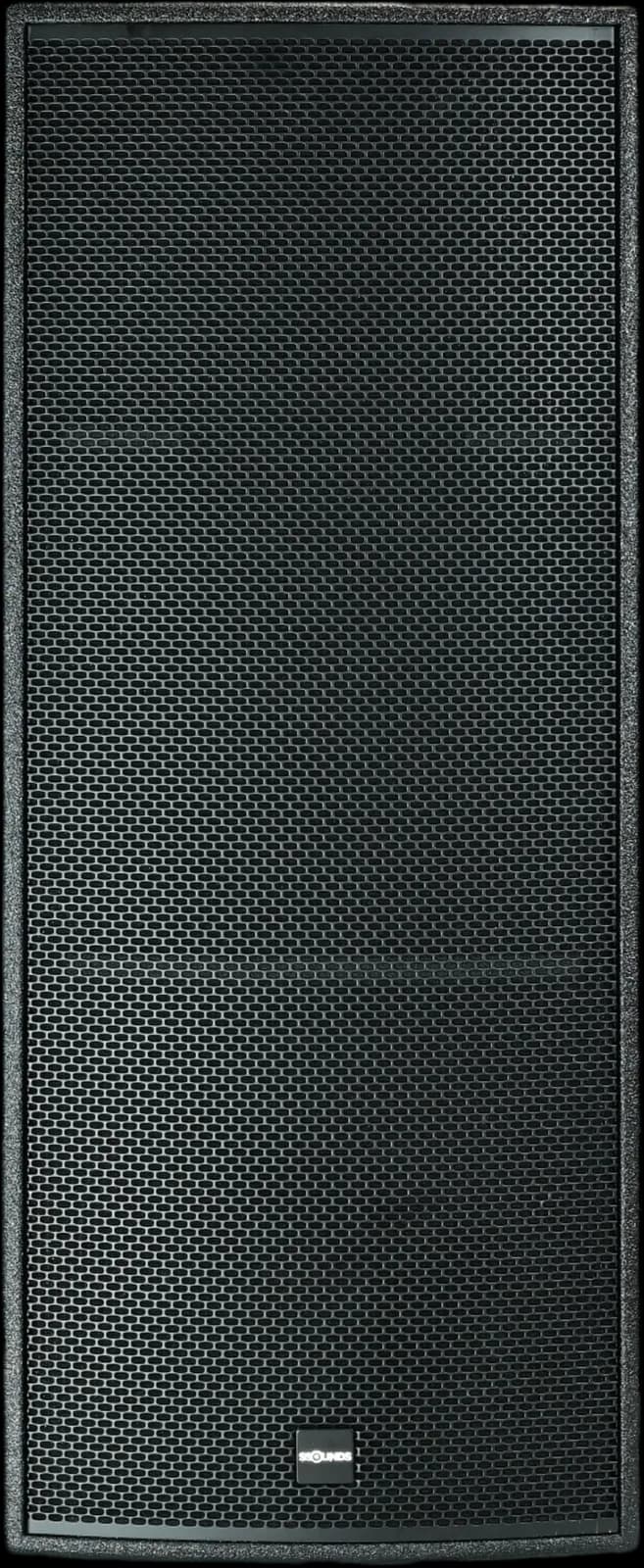

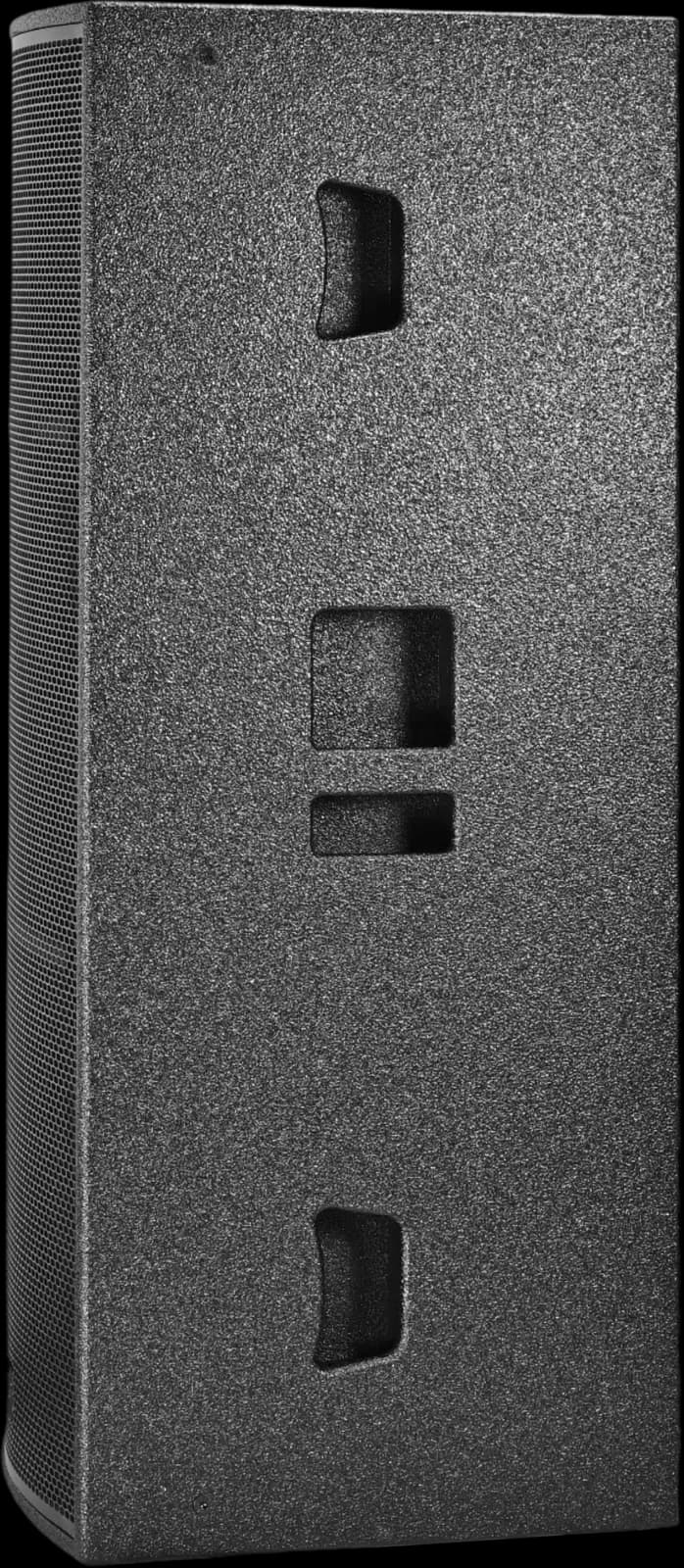

La P15 est une enceinte point source deux voies à haut rendement : deux haut-parleurs de graves de 15″ et un moteur à compression à bobine mobile de 3″ sur un pavillon à directivité constante de 90° × 60°, atteignant 138 dB en crête depuis un caisson de 47 kg. Elle constitue la version à large couverture de la P15-X trois voies à longue portée, conçue pour les applications de sonorisation principale et de remplissage où le rendement et le contrôle de directivité priment sur la distance de projection. Suspendue, empilée ou montée sur pied pour le live, l'installation et le culte.
P stands for Point Source. A single acoustic origin rather than a coupled array: coverage is set by the cabinet's own horn, and is the same whether one is deployed or several.
Key features
- 2 × 15″ low-frequency drivers with a 3″ voice-coil compression driver
- 90° × 60° constant-directivity horn
- 138 dB peak SPL
- 47 kg cabinet, 1,090 × 445 × 505 mm
- Passive, one channel of a D24X system DSP amplifier per cabinet
- Flown, stacked or pole-mounted for mains and fill
Specifications
Engineering data. The conditions each figure is specified under are stated below the table.
General
- Type
- Passive 2-way point source
- Certifications
- CE · TÜV · EAC · WEEE
Components
- Low frequency
- 2 × 15″ woofers
- High frequency
- 1 × 3″ voice-coil compression driver
Electrical
- Amplification
- Passive, one channel of a SSOUNDS D24X system DSP amplifier per cabinet (4 cabinets per amplifier)
- Nominal impedance3
- 8 Ω
- Crossover
- Passive
Connections

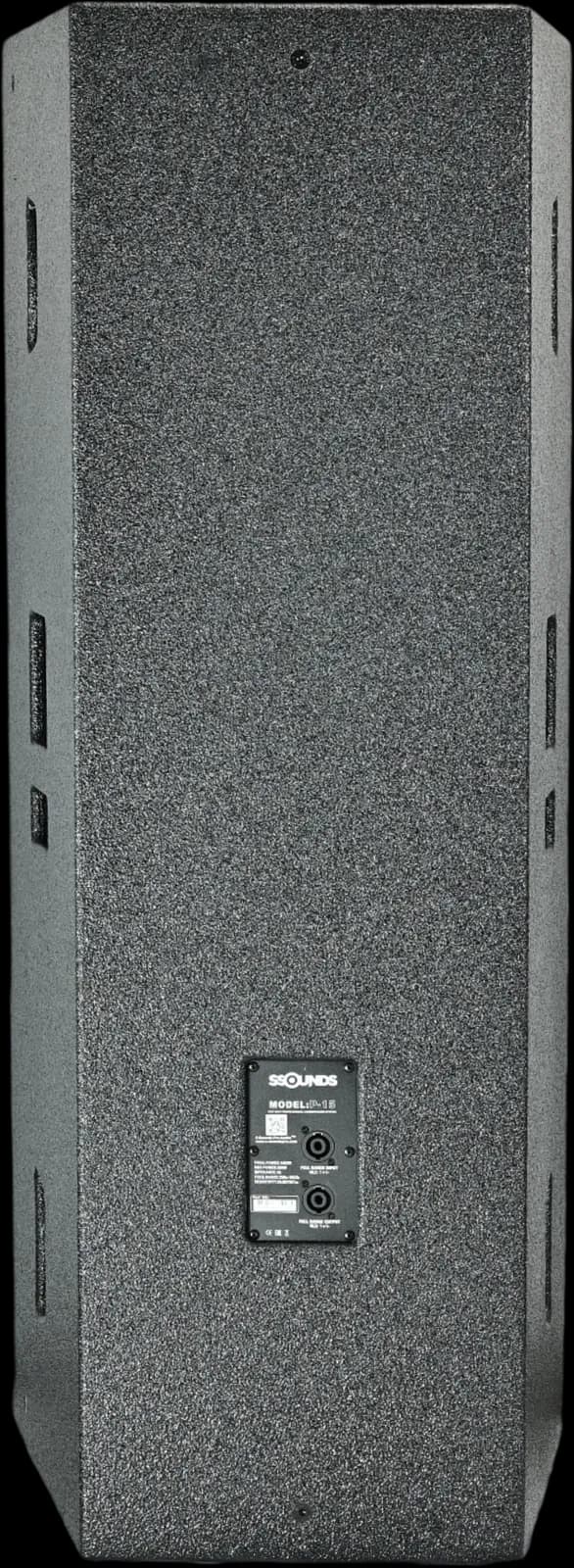

- Connectors
- 2 × NL4 speakON (in / link)
- Pin map
- 1+/1− full range · 2+/2− not linked
Rigging
- Mounting
- M10 inserts · pole socket
Physical
Measurement conditions
- Maximum SPL is the peak level at 1 m, driven with pink noise at crest factor 4 to the clipping point of the recommended amplifier, with the SSOUNDS system preset applied. Full-range enclosures are specified under free-field conditions; figures marked half-space are specified over a reflecting plane, the condition subwoofers are deployed in, which adds approximately 6 dB.
- Coverage angles are nominal −6 dB values averaged across the pass band. Per-octave directivity data is available from SSOUNDS system design support for prediction and modelling.
- Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
- Net weight excludes packaging, flight case, accessories and optional rigging hardware.
- Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
- All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.
Downloads
Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.
- Technical data sheetFull specification set with the measurement conditions for each figure, modelled response curves, safety notices and warranty terms.PDF · SS-DS-P15-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
- Technical data sheet, in your browserThe same document as a page, if you would rather read it here or print it yourself.HTML print view · SS-DS-P15-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
- Architectural and engineering specificationThe “shall be” paragraph for tender documents and bills of quantities, written from this product’s own specification rows. Section of the data sheet.HTML section · SS-DS-P15-EN-A4
- User manualUnpacking, connection, installation, operating limits, maintenance schedule and troubleshooting for this model.HTML print view · SS-UM-P15-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
