1 / 3SSOUNDS · SS-D14X

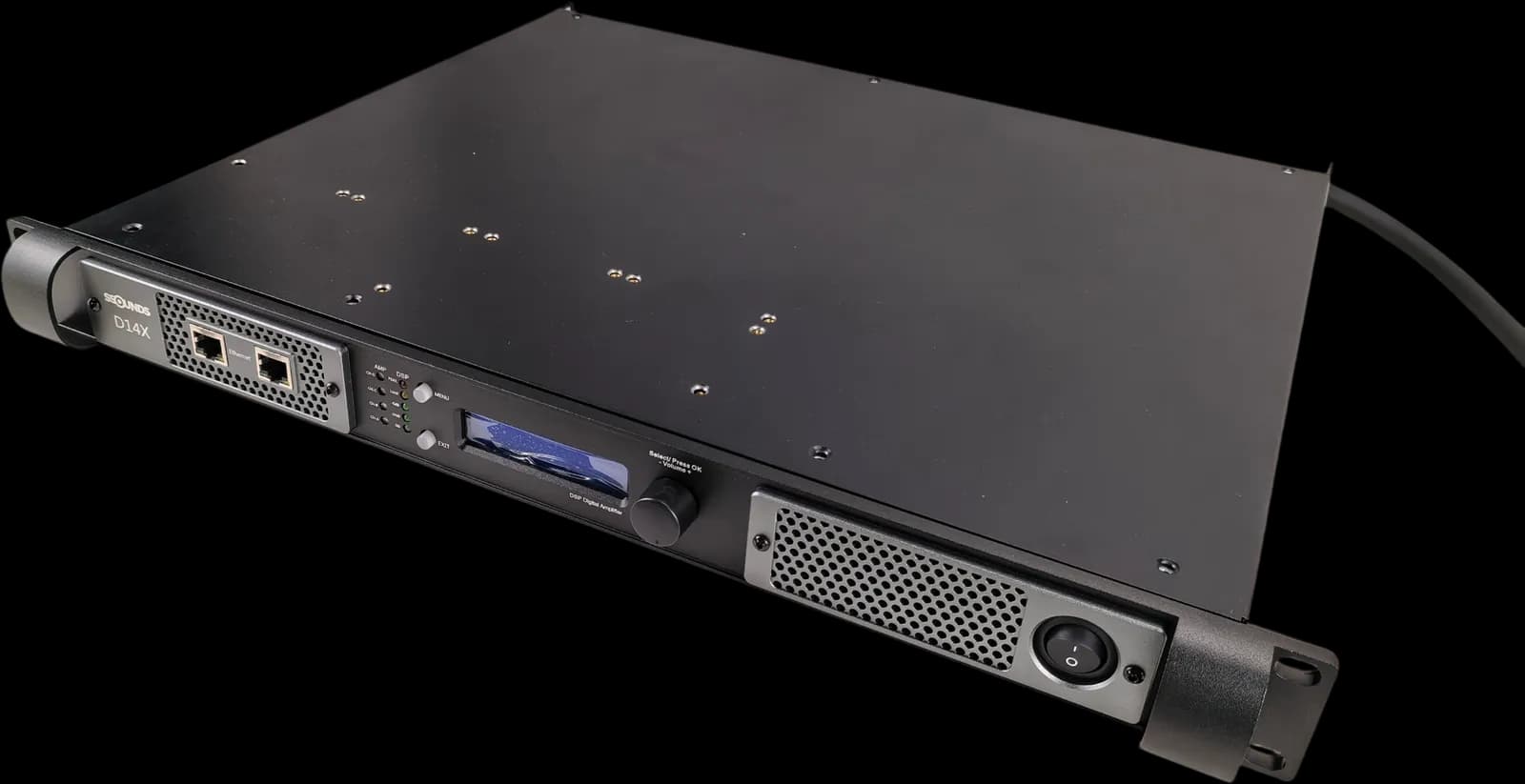

SSOUNDS D14X
FIR 기능을 갖춘 4채널 DSP 앰프, 라인 어레이 출력과 전체 시스템 처리 및 프리셋을 제공합니다.
AES3DSPamplifierFIRtouringD14X는 D 시리즈의 컴팩트한 멤버로, 4채널의 라인 어레이 파워와 완전한 FIR 지원 프로세싱, 라우드스피커 프리셋 및 네트워크 제어를 제공합니다. 하나의 장치로 랙을 완전한 SSOUNDS 시스템 엔진으로 바꿔줍니다. 예측, 배포, 제어를 한 기기에서 수행할 수 있습니다. 프로세싱은 SSOUNDS DSP 플랫폼에서 96kHz의 32비트 부동 소수점으로 실행됩니다. PhaseTrue 선형 위상 FIR 크로스오버와 IIR 셸빙, 파라메트릭 및 노치 섹션, 그리고 모든 채널에 DynaControl 피크, 열 및 엑스커전 리미팅이 포함됩니다. 아날로그 입력에서 라우드스피커 출력까지의 종단 간 지연 시간은 0.466ms입니다.
Part of the XTO, LS and M Systems
Drives the 8P and smaller counts of the 10P.
Key features
- 4 × 1,000 W into 8 Ω, 4 × 2,000 W into 4 Ω, 8,000 W total
- 0.466 ms latency, analog input to loudspeaker output
- SSOUNDS DSP, 32-bit floating point at 96 kHz
- PhaseTrue linear-phase FIR crossovers, with IIR shelving, parametric and notch
- DynaControl peak, thermal and excursion limiting per channel
- Dante audio and SNet control over one network infrastructure
- 16-band input and 16-band output EQ, parametric, notch and shelving
- Variable-speed cooling under continuous temperature monitoring, with GPIO
Specifications
Engineering data. The conditions each figure is specified under are stated below the table.
General
- Type
- 4-channel DSP power amplifier, networked
- Protection
- Over-current · thermal · DC · short-circuit
- Cooling
- Forced-air front-to-rear, variable-speed fans under continuous temperature monitoring
- Certifications
- CE · UKCA · TÜV (rack mounting) · FCC · cULus · EAC · RoHS
Electrical
- Channels
- 4 × Class-D
- Power @ 8 Ω
- 4 × 1,000 W
- Power @ 4 Ω
- 4 × 2,000 W
- Minimum load impedance1
- 2 Ω (all channels driven)
- Bridged @ 8 Ω
- 2 × 4,000 W
- Total output
- 8,000 W
- Mains
- 100–240 V switch-mode with PFC
Processing
- Presets and delay
- SSOUNDS loudspeaker presets, per-channel delay
- Converters
- 32-bit AD / DA at 96 kHz
- DSP platform
- SSOUNDS DSP, 32-bit floating point with 40-bit extended precision
- Latency
- 0.466 ms, analog input to loudspeaker output
- Crossover filters
- PhaseTrue linear-phase FIR, with IIR shelving, parametric and notch sections
- Limiting
- DynaControl peak, thermal and excursion limiting, per channel
- Equalisation
- 16 bands on the input and 16 bands on the output, parametric, notch and shelving
- Load monitoring
- Per-channel load impedance monitoring with fault reporting over SNet
- Maximum delay
- 1,000 ms per channel
Connections
- Network
- Dante audio network + control, 2 × RJ45 (primary / secondary, front panel)

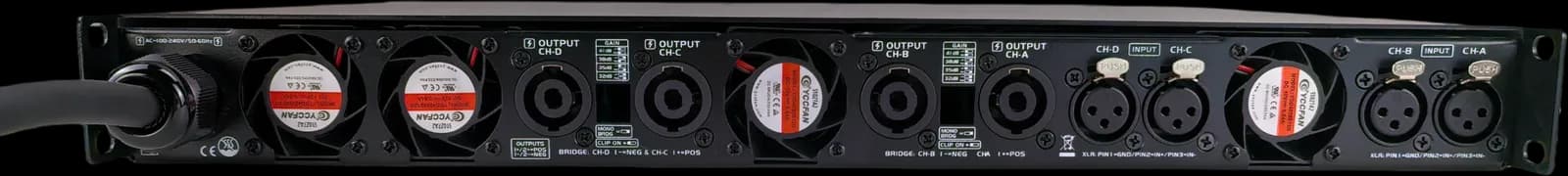

- Inputs / outputs
- 4 × XLR analog / AES3 · Dante · 4 × NL4 speakON out
- Control
- SNet remote control and monitoring (SSOUNDS Network Manager)
- GPIO
- General-purpose I/O for external monitoring and control
- Input sensitivity
- 0 dBu / 6 dBu selectable
Performance
- Frequency response
- 20 Hz – 20 kHz (±0.5 dB)
- THD+N
- < 0.02% @ 1 kHz
- S/N ratio
- > 112 dB (A-weighted)
- Damping factor
- > 500 @ 8 Ω
- Efficiency
- > 90%
- Dynamic range
- 112 dB
Physical
- Format
- 19″ 1U rack
- Net weight2
- 7 kg / 15 lb
Environment
- Operating temperature
- −10 °C to +40 °C continuous, +50 °C short term
- Storage temperature
- −20 °C to +70 °C
- Humidity
- < 70% relative humidity, non-condensing
Measurement conditions
- Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
- Net weight excludes packaging, flight case, accessories and optional rigging hardware.
- All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.
Downloads
Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.
- Technical data sheetFull specification set with the measurement conditions for each figure, modelled response curves, safety notices and warranty terms.PDF · SS-DS-D14X-EN-A4 · Rev. 2608 · Issued 14 Aug 2026
- Technical data sheet, in your browserThe same document as a page, if you would rather read it here or print it yourself.HTML print view · SS-DS-D14X-EN-A4 · Rev. 2608 · Issued 14 Aug 2026
- Architectural and engineering specificationThe “shall be” paragraph for tender documents and bills of quantities, written from this product’s own specification rows. Section of the data sheet.HTML section · SS-DS-D14X-EN-A4
- User manualUnpacking, connection, installation, operating limits, maintenance schedule and troubleshooting for this model.HTML print view · SS-UM-D14X-EN-A4 · Rev. 2608 · Issued 14 Aug 2026
Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
