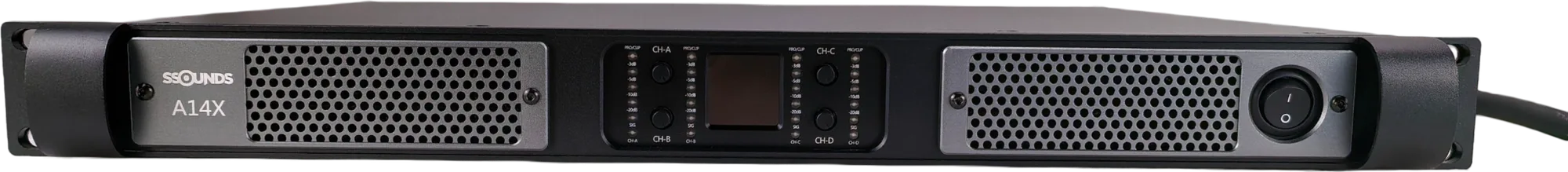

SSOUNDS A14X
| Specification | SSOUNDS A14X SS-A14X |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Channels | 4 × Class-D |
| Type | 4-Channel Analog Power Amplifier |
| Power (8 Ω stereo) | 4 × 1000 W |
| Power (4 Ω stereo) | 4 × 1700 W |
| Total Output Power | 6800W |
| Power / ch @ 4 Ω (stereo) | 1700W |
| Mains | 100–240 V switch-mode PFC |
| DSP | Onboard limiters · delay · EQ |
| Power / ch @ 8 Ω (stereo) | 1000W |
| Bridged Power @ 8 Ω | 3400W |
| Inputs / outputs | XLR / Speakon NL4 |
| Format | 2U rack |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| Weight | 12 kg |
| THD+N | < 0.05%@ 1 kHz |
| S/N Ratio | > 110dB (A-weighted) |
| Damping Factor | > 400@ 8 Ω |
| Input Sensitivity | 0 dBu / 6 dBu (selectable) |
| Connectors | 4× XLR in, 4× NL4 Speakon out |
| Protection | OCP, OTP, DC, short-circuit |
| Cooling | Forced-air, rear-to-front |
| Power Supply | 100–240 V AC, 50/60 Hz |
