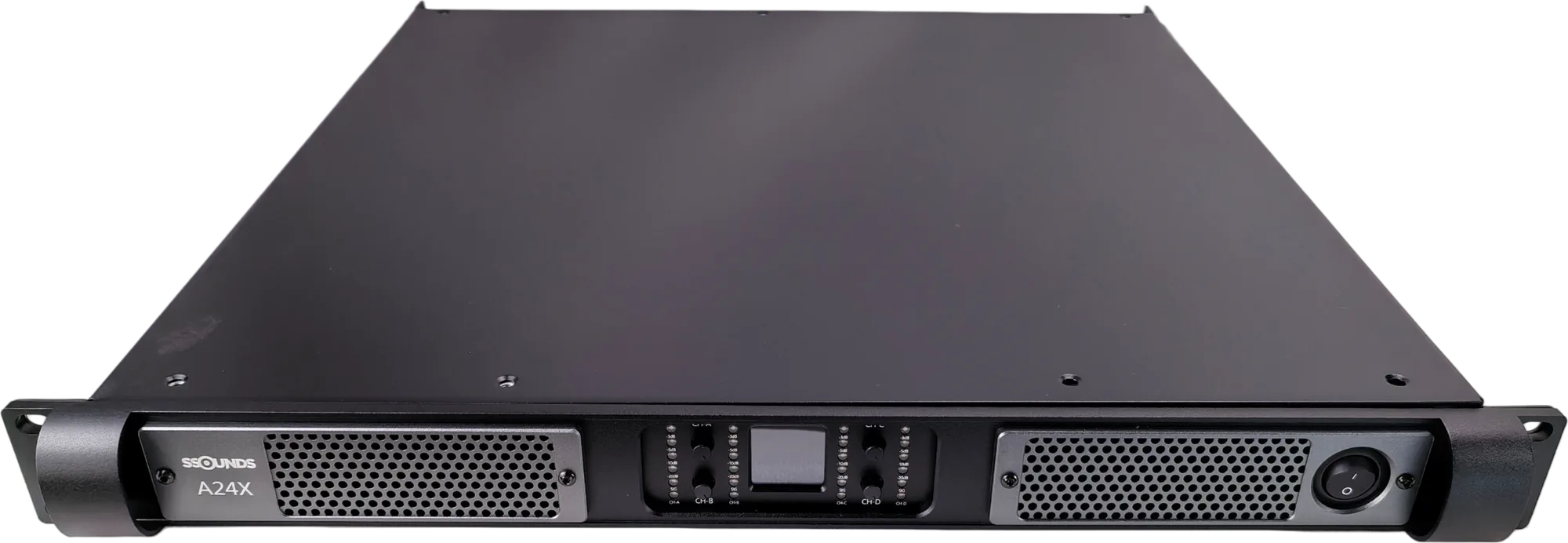

SSOUNDS A24X
| Specification | SSOUNDS A24X SS-A24X |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 4-channel Class-D power amplifier, analog input |
| Channels | 4 × Class-D |
| Power @ 8 Ω | 4 × 2,200 W |
| Power @ 4 Ω | 4 × 4,400 W |
| Minimum load impedance | 2 Ω (all channels driven) |
| Bridged @ 8 Ω | 2 × 8,800 W |
| Total output | 17,600 W |
| Frequency response | 20 Hz – 20 kHz (±0.5 dB) |
| THD+N | < 0.05% @ 1 kHz |
| S/N ratio | > 112 dB (A-weighted) |
| Damping factor | > 400 @ 8 Ω |
| Inputs / outputs | 4 × XLR in · 4 × NL4 speakON out |
| Input sensitivity | 0 dBu / 6 dBu selectable |
| Mains | 200–240 V switch-mode with PFC |
| Protection | Over-current · thermal · DC · short-circuit |
| Cooling | Forced-air front-to-rear, variable-speed fans under continuous temperature monitoring |
| Format | 19″ 1U rack |
| Net weight | 8.5 kg / 19 lb |
