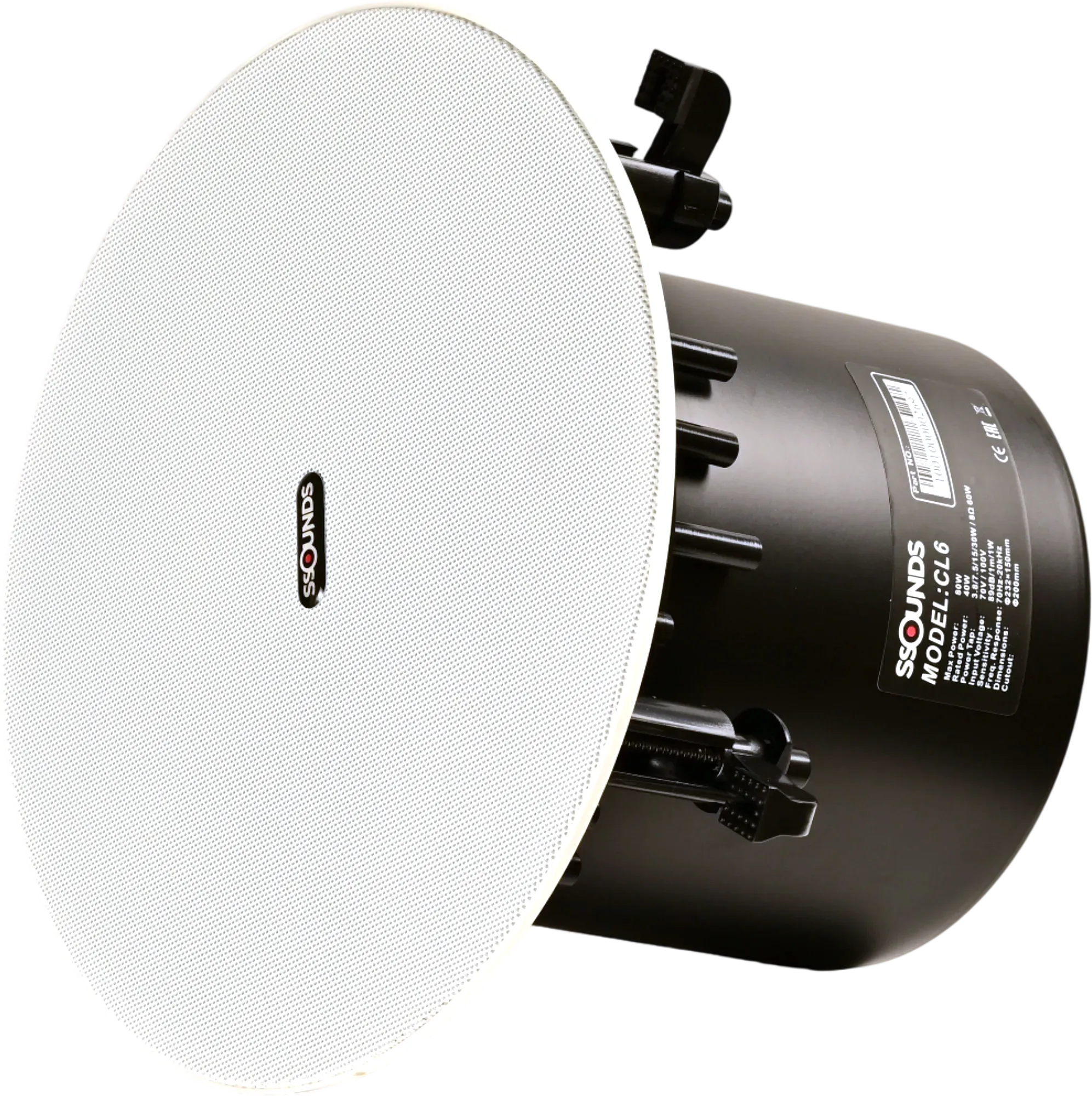

SSOUNDS CL6
| Specification | SSOUNDS CL6 SS-CL6 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Configuration | 2-way coaxial ceiling speaker |
| Type | Passive In-Ceiling Loudspeaker |
| Frequency response | 70 Hz – 20 kHz |
| Driver Configuration | 6.5" woofer + 0.75" balanced-dome tweeter |
| Coverage (H × V) | 130° conical |
| Frequency Response | 75 Hz – 20 kHz |
| Maximum SPL | 108 dB peak |
| Sensitivity | 91dB (2.83 V/1m) |
| Low–mid | 1 × 6.5″ coaxial woofer |
| Nominal Impedance | 8Ω |
| High frequency | 1 × 0.75″ coaxial tweeter |
| Programme Power | 80W |
| Operation | 70 / 100 V (tapped) or 8 Ω |
| Cutout Diameter | 196mm |
| Installation Depth Required | 75mm |
| Taps (100 V) | 15 / 7.5 / 3.75 W |
| Enclosure | ABS back-can · steel grille |
| IP Rating | IP21 (moisture-resistant grille) |
| Connectors | Screw terminal |
| Finish | Paintable steel grille · tile-bridge / tabs |
| Dimensions (H×W×D) | Ø 240 × 195 mm |
| Overall Diameter (incl. grille) | 238mm |
| Weight | 2.4 kg |
