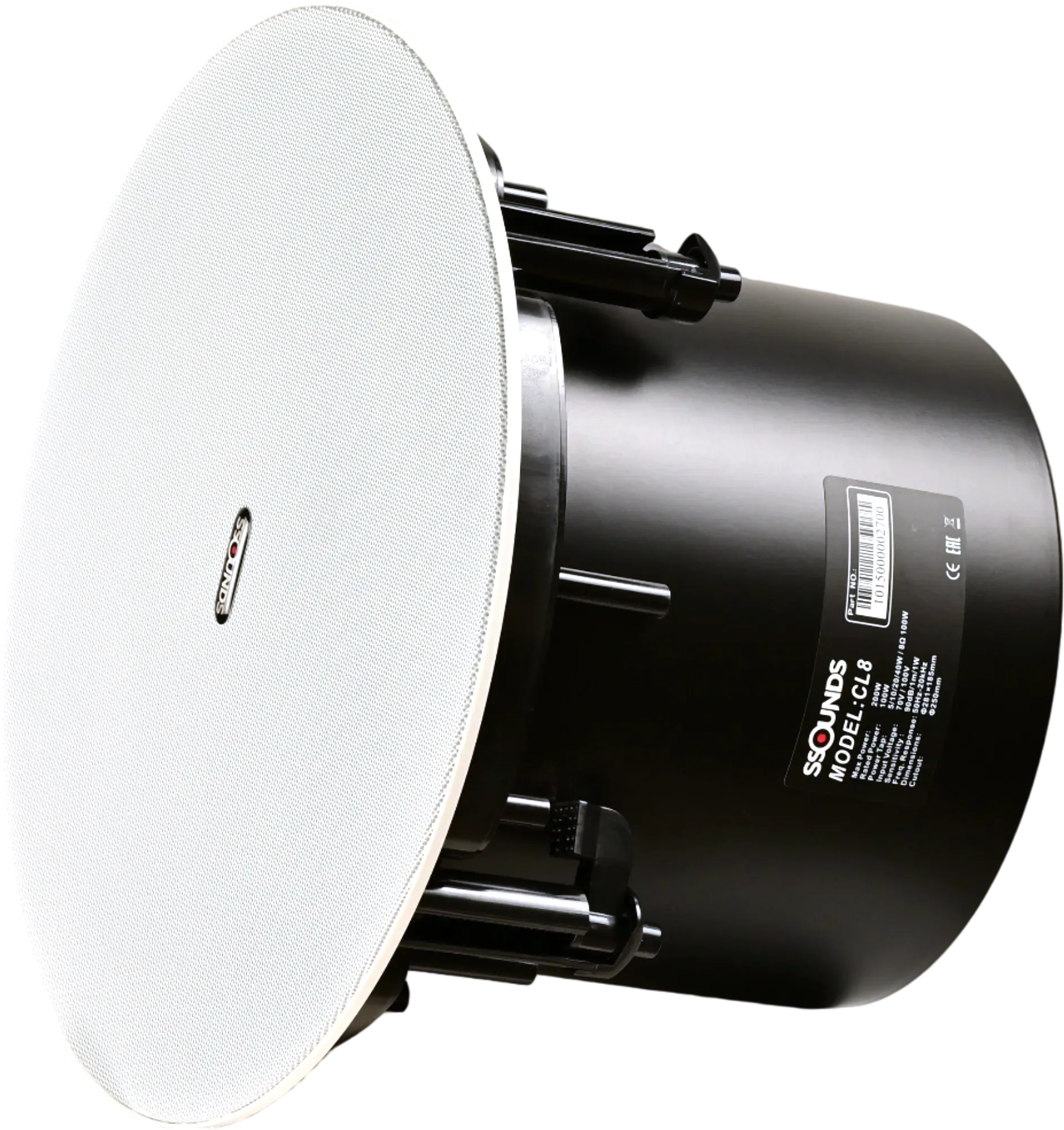

SSOUNDS CL8
| Specification | SSOUNDS CL8 SS-CL8 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Configuration | 2-way coaxial ceiling speaker |
| Type | Passive In-Ceiling Loudspeaker |
| Frequency response | 55 Hz – 20 kHz |
| Driver Configuration | 8" woofer + 1" dome tweeter |
| Coverage (H × V) | 120° conical |
| Maximum SPL | 112 dB peak |
| Frequency Response | 60 Hz – 20 kHz |
| Sensitivity | 94dB (2.83 V/1m) |
| Low–mid | 1 × 8″ coaxial woofer |
| Nominal Impedance | 8Ω |
| High frequency | 1 × 1″ coaxial tweeter |
| Programme Power | 120W |
| Operation | 70 / 100 V (tapped) or 8 Ω |
| Cutout Diameter | 248mm |
| Installation Depth Required | 85mm |
| Taps (100 V) | 30 / 15 / 7.5 W |
| IP Rating | IP21 (moisture-resistant grille) |
| Enclosure | ABS back-can · steel grille |
| Finish | Paintable steel grille · tile-bridge / tabs |
| Connectors | Screw terminal |
| Dimensions (H×W×D) | Ø 290 × 230 mm |
| Overall Diameter (incl. grille) | 292mm |
| Weight | 2.2kg |
| Datasheet | Download |
| Enquire | Request quote |
