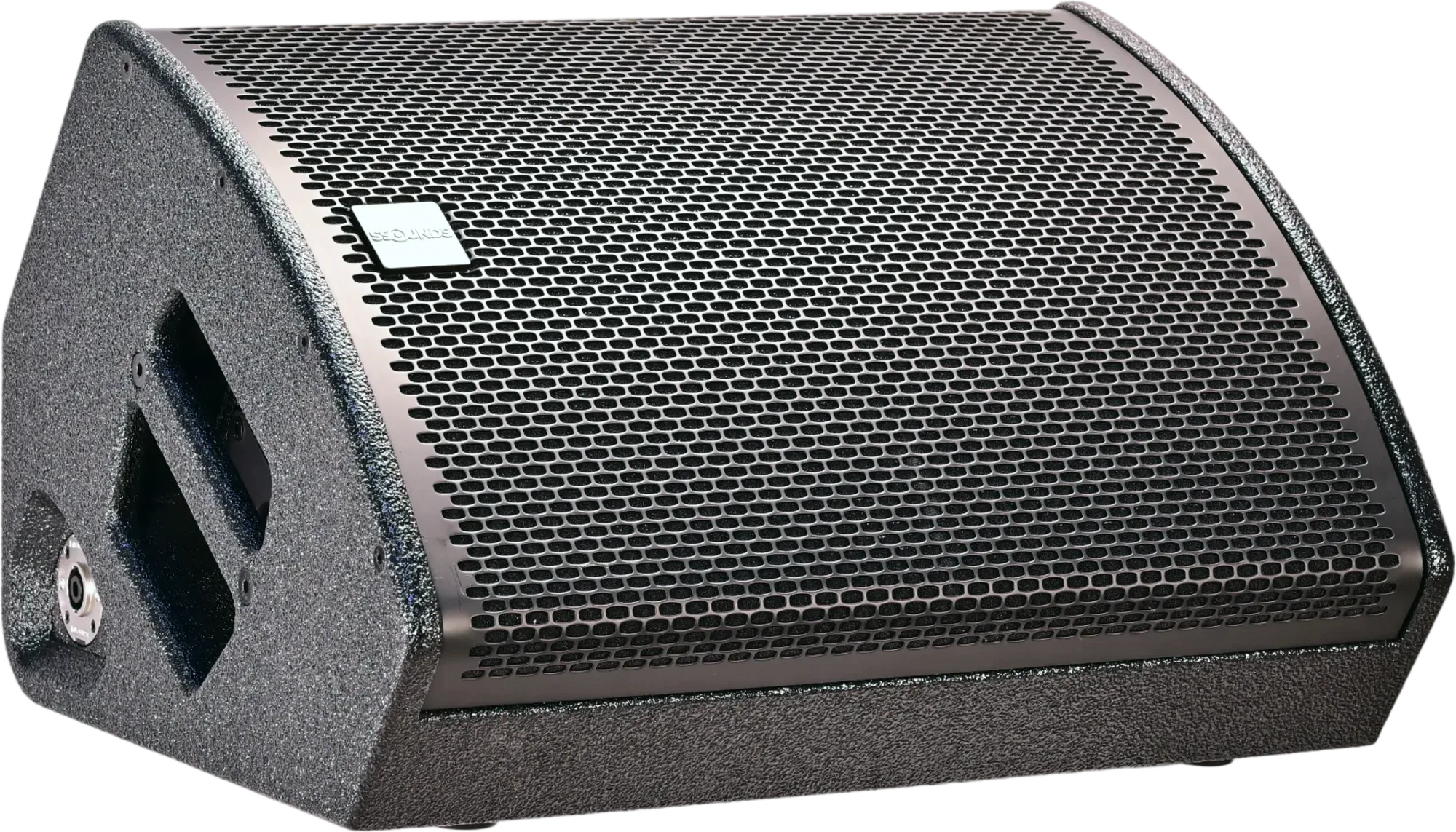

SSOUNDS CQ12
| Specification | SSOUNDS CQ12 SS-CQ12 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 12″ coaxial passive stage monitor |
| Drivers | 12″ LF with coaxial 1.4″-exit HF compression driver |
| Frequency response | 55 Hz – 20 kHz (−10 dB) |
| Coverage | 60° × 45° · rotatable coaxial horn |
| Sensitivity | 104 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 135 dB peak @ 1 m |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 700 W |
| Nominal impedance | 8 Ω |
| Connectors | 2 × NL4 speakON (link through) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Form factor | Low-profile wedge · dual floor angles |
| Dimensions (H × W × D) | 380 × 600 × 320 mm |
| Net weight | 15.5 kg / 34 lb |
| Enclosure | Baltic birch · Polyurea · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
| Datasheet | Download |
| Enquire | Request quote |
