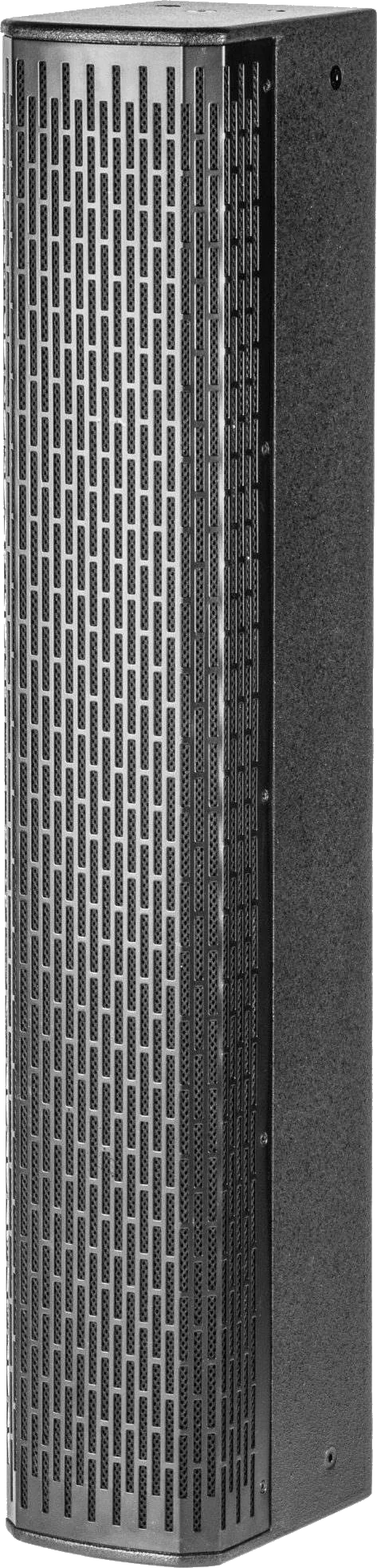

SSOUNDS LC8.4H
| Specification | SSOUNDS LC8.4H SS-LC84H |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | Passive column array, two-way |
| Drivers | LF 8 × 4.5″ cone drivers, 1.5″ voice coil · HF 8 × 1″ drivers, 1″ voice coil |
| Frequency response | 112 Hz – 19 kHz (−10 dB) |
| Coverage | 128° (H) × 27° (V) |
| Maximum SPL | 123 dB continuous · 129 dB peak @ 1 m |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Power handling (AES / peak) | 640 W / 2,560 W |
| Nominal impedance | 8 Ω |
| Mounting | Mounting bracket · wall bracket |
| Dimensions (H × W × D) | 969 × 162 × 224 mm |
| Net weight | 13.8 kg / 30 lb |
| Enclosure | Wood |
| Datasheet | Download |
| Enquire | Request quote |
