SSOUNDS LS208
| Specification | SSOUNDS LS208 SS-LS208 |
|---|---|

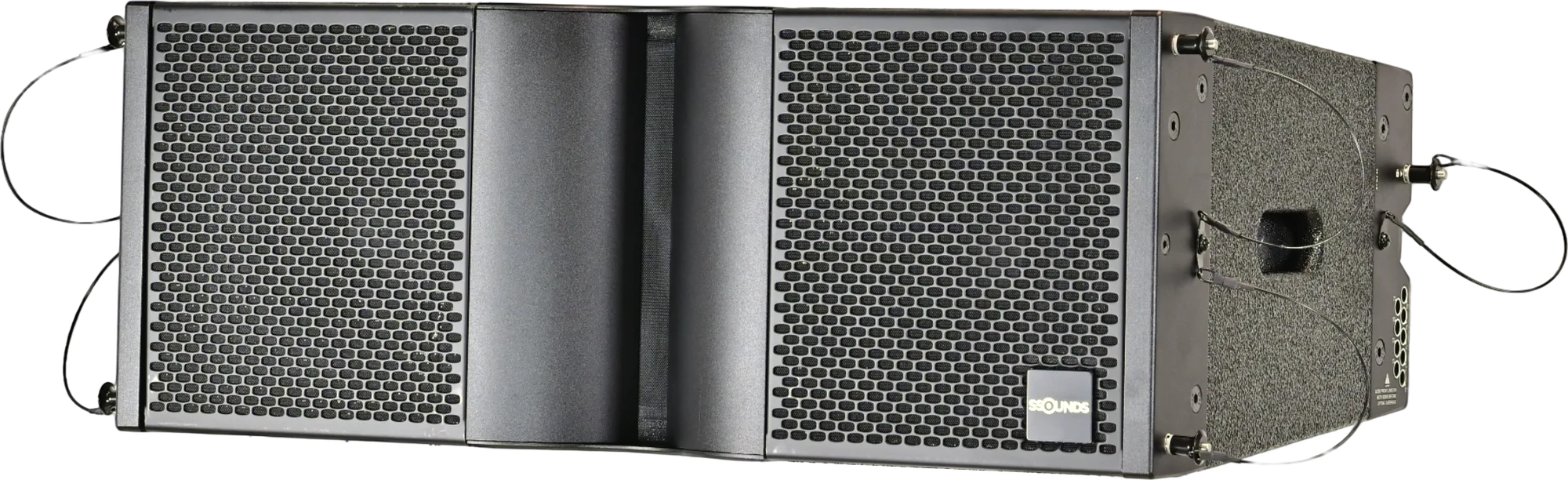

| Image |  |
| Brand | SSOUNDS |
| Type | 2-way compact line-array element · bi-amplified |
| Low frequency | 2 × 8″ cone drivers with phase plug, dipolar arrangement · 8 Ω |
| High frequency | 1 × 1.4″ exit compression driver, 3″ coil · 16 Ω |
| Frequency response | 55 Hz – 20 kHz (−10 dB) |
| Coverage | 100° × 8° |
| Sensitivity | 107 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 141 dB peak @ 1 m |
| Amplification | Bi-amplified by SSOUNDS D14X system DSP amplifier |
| Recommended amplifier power | 1,040 W |
| Nominal impedance | LF 8 Ω · HF 16 Ω |
| Crossover | 900 Hz |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− LF · 2+/2− HF |
| System | High-grade titanium captive 3-point rigging |
| Splay angles | 0° – 10° adjustable |
| Max per array | Up to 16 elements per hang |
| Dimensions (H × W × D) | 250 × 730 × 470 mm |
| Net weight | 26 kg / 57 lb |
| Enclosure | 15 mm Baltic birch · Polyurea finish |
| Grille | Powder-coated perforated steel with acoustic cloth backing |
| Handles | 2 side · 2 rear recessed |
| Colour | Black (custom RAL on request) |
| Certifications | CE · TÜV (rigging system) · EAC · WEEE |
| Datasheet | Download |
| Enquire | Request quote |
