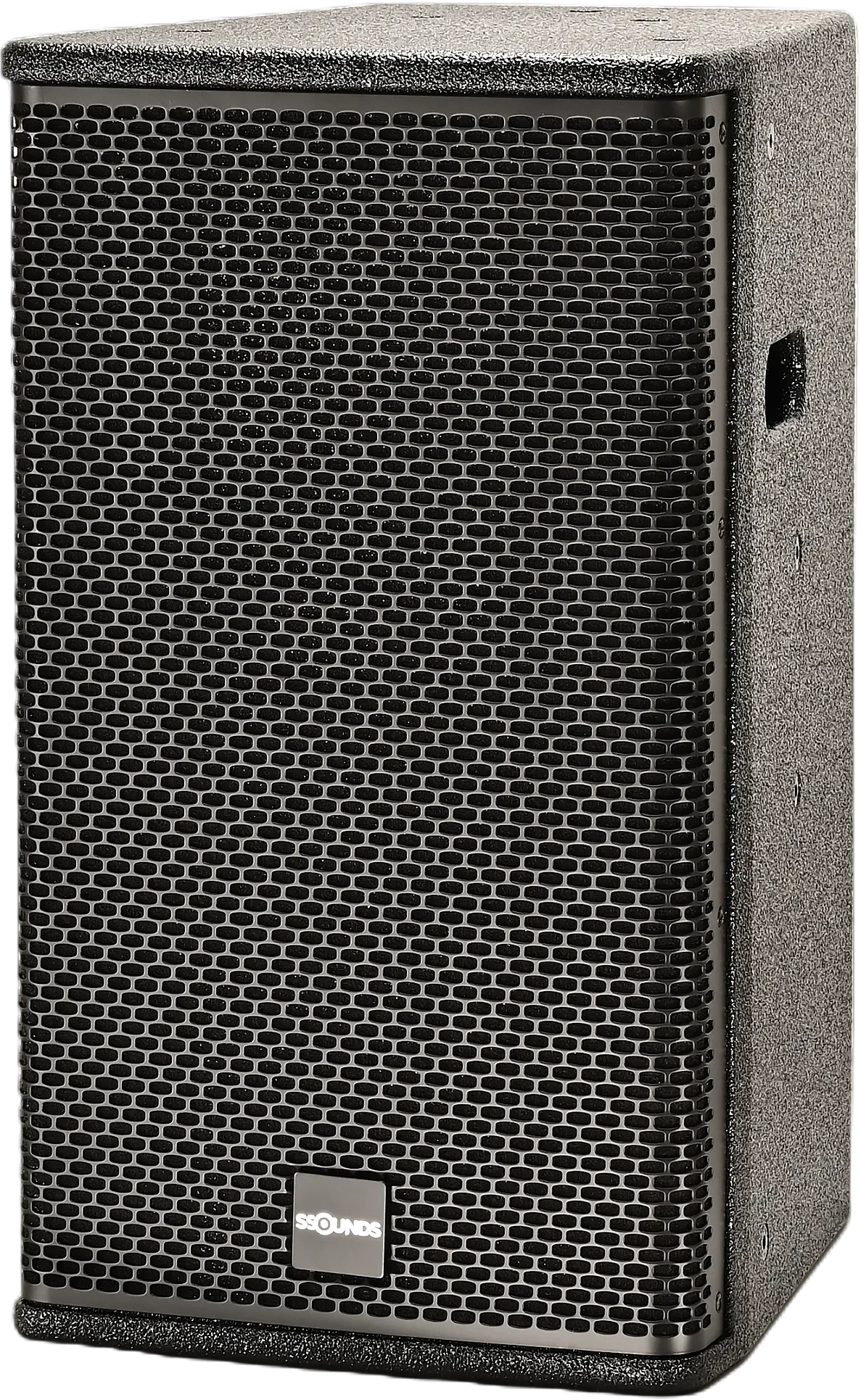

SSOUNDS M-10
| Specification | SSOUNDS M-10 SS-M10 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | Passive 2-way full-range |
| Low frequency | 1 × 10″ driver |
| High frequency | 1 × 1.4″ exit compression driver |
| Frequency response | 57 Hz – 20 kHz (−10 dB) |
| Coverage | 90° × 60° (rotatable horn) |
| Maximum SPL | 127 dB peak @ 1 m |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 700 W |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Mounting | Yoke bracket ±180° · M8 inserts · 45° monitor angle |
| Dimensions (H × W × D) | 520 × 320 × 320 mm |
| Net weight | 15 kg / 33 lb |
| Enclosure | 15 mm birch · Polyurea · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
