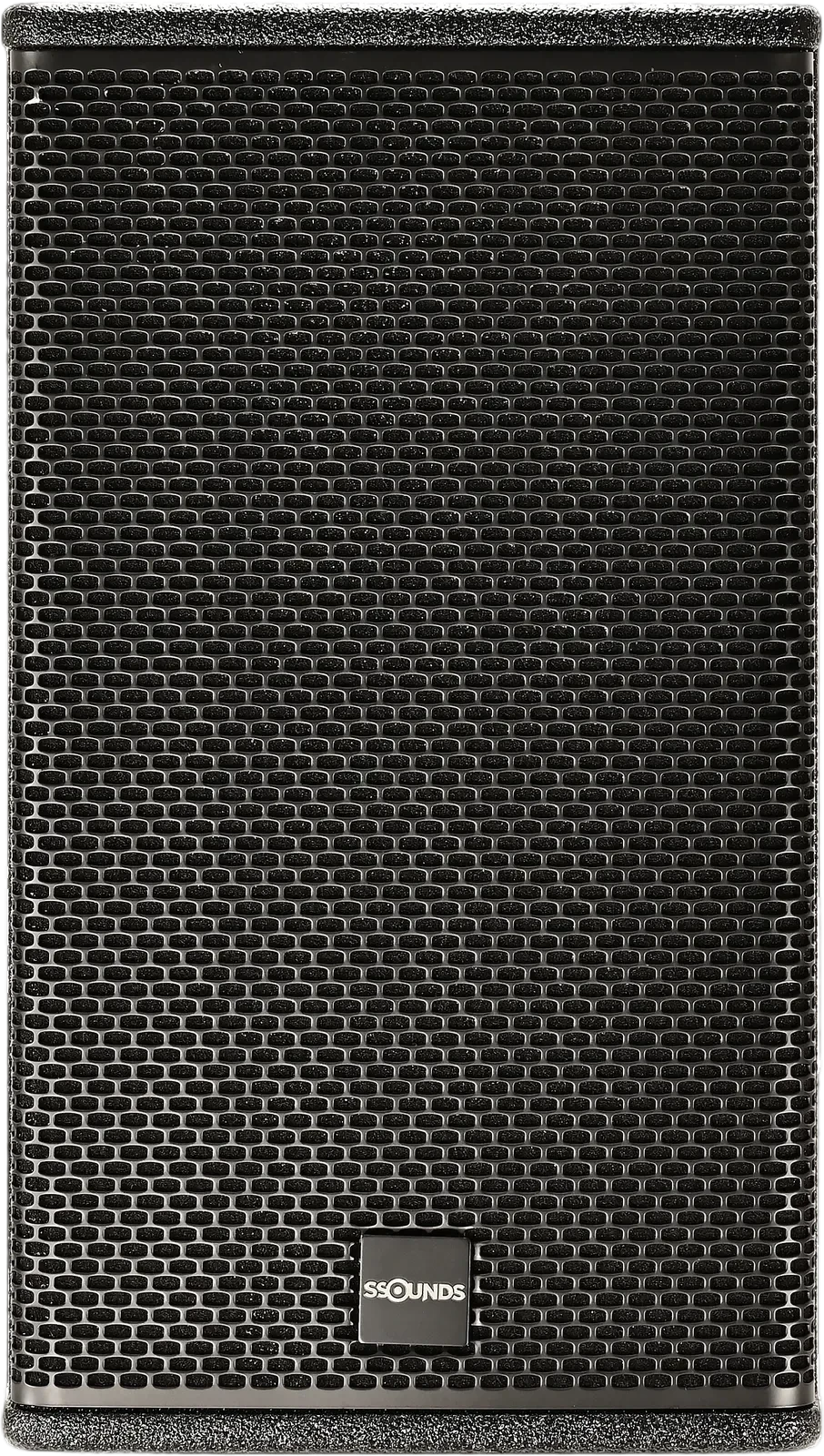

SSOUNDS M-15
| Specification | SSOUNDS M-15 SS-M15 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 2-way point source · passive or bi-amplified |
| Low frequency | 1 × 15″ cone driver · 8 Ω |
| High frequency | 1 × 1.4″ exit compression driver, 3″ coil · 8 Ω |
| Frequency response | 55 Hz – 20 kHz (−10 dB) |
| Coverage | 90° × 60° · rotatable horn |
| Sensitivity | 102 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 137 dB peak @ 1 m |
| Recommended amplifier power | 1,640 W |
| Recommended amplifier | 800 – 1,600 W into 8 Ω |
| Nominal impedance | Passive 8 Ω · bi-amp LF 8 Ω + HF 8 Ω |
| Crossover | Passive 1.2 kHz · bi-amp capable |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | Passive 1+/1− full range · bi-amp 1+/1− LF · 2+/2− HF |
| Fly points | 12 × M10 threaded inserts · yoke bracket compatible |
| Deployment | Flown · stacked · 36 mm pole socket · 45° monitor angle |
| Dimensions (H × W × D) | 700 × 450 × 420 mm |
| Net weight | 26 kg / 57 lb |
| Enclosure | 15 mm Baltic birch · Polyurea finish |
| Grille | Powder-coated perforated steel with acoustic cloth backing |
| Handles | 2 side · 2 rear recessed |
| Colour | Black (custom RAL on request) |
| Certifications | CE · TÜV · EAC · WEEE |
