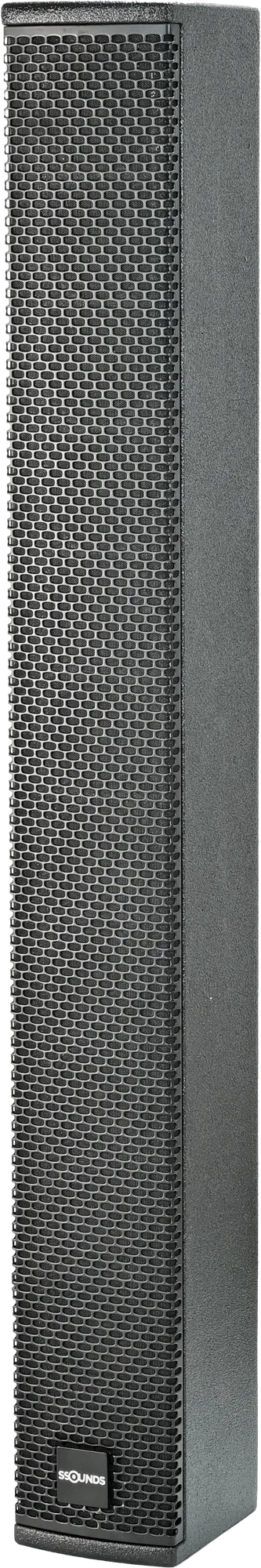

SSOUNDS M3.12P
| Specification | SSOUNDS M3.12P SS-M312P |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | Passive column array, full-range |
| Drivers | 12 × 3″ full-range |
| Frequency response | 120 Hz – 20 kHz (−10 dB) |
| Coverage | 120° (H) × 15° (V) |
| Maximum SPL | 126 dB peak @ 1 m |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 720 W |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Mounting | 35 mm pole mount · wall / array brackets |
| Dimensions (H × W × D) | 1080 × 110 × 120 mm |
| Net weight | 9 kg / 20 lb |
| Enclosure | Extruded aluminium · powder-coat |
| Certifications | CE · TÜV · EAC · WEEE |
