SSOUNDS M3.6P
| Specification | SSOUNDS M3.6P SS-M36P |
|---|---|

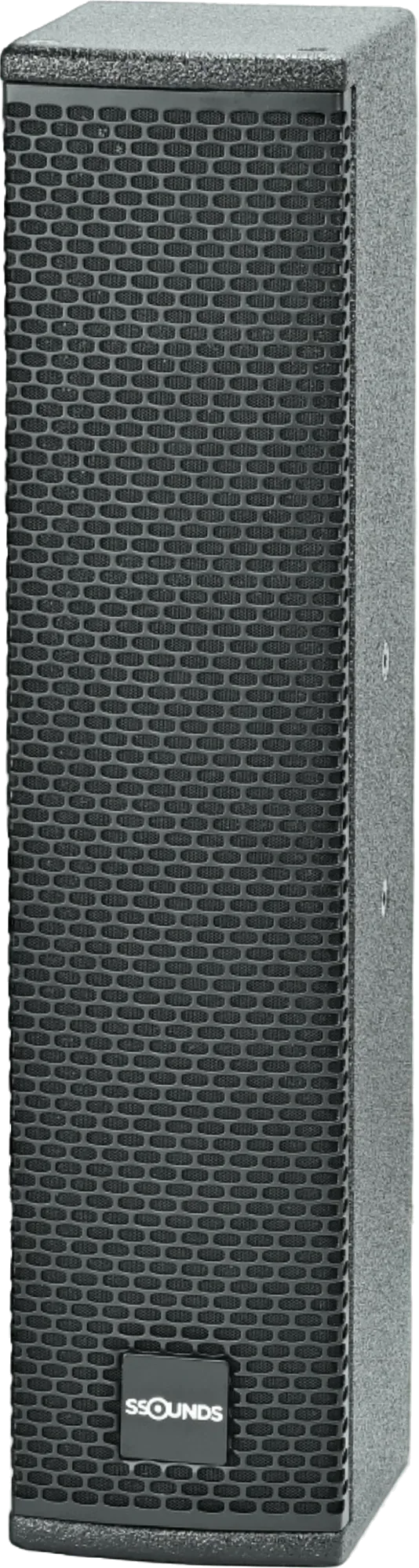

| Image |  |
| Brand | SSOUNDS |
| Configuration | Passive column array · full-range |
| Frequency response | 120 Hz – 20 kHz |
| Type | Passive Compact Full-Range Speaker |
| Coverage (H × V) | 120° H × 30° V |
| Driver Configuration | 6" woofer + 1" tweeter |
| Maximum SPL | 118 dB peak |
| Frequency Response | 80 Hz – 20 kHz |
| Sensitivity | 90dB (1W/1m) |
| Nominal Impedance | 8Ω |
| Drivers | 6 × 3″ full-range |
| Programme Power | 100W |
| High frequency | Waveguide HF section |
| Power handling | 180 W AES / 720 W peak |
| Mounting | 35 mm pole-mount compatible |
| Connectors | NL4 Speakon |
| Nominal impedance | 8 Ω |
| Dimensions (H×W×D) | 220 × 175 × 175mm |
| Crossover | Passive |
| Weight | 3.2kg |
| Enclosure | Extruded aluminium |
| Finish | Powder-coat aluminium · wall / array brackets |
