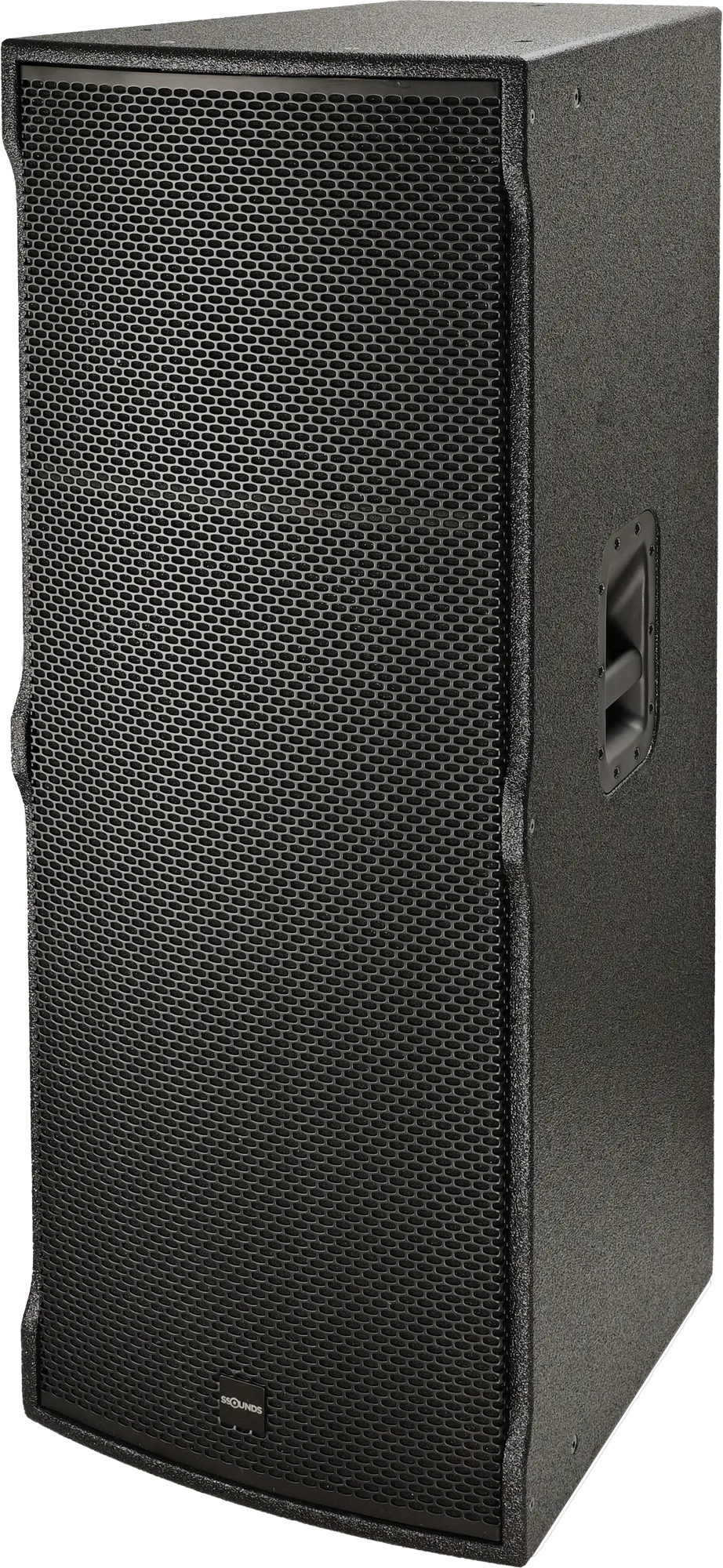

SSOUNDS P15-XA
| Specification | SSOUNDS P15-XA SS-P15XA |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 3-way point source · actively tri-amplified |
| Low frequency | 2 × 15″ cone drivers · 8 Ω |
| Mid frequency | 4 × 6.5″ forward-facing cone drivers with phase plug, 50% waveguide-loaded · 8 Ω |
| High frequency | 2 × 1.4″ exit compression drivers, 3″ coil · 16 Ω |
| Frequency response | 45 Hz – 20 kHz (−10 dB) |
| Coverage | 70° × 40° constant-directivity waveguide |
| Sensitivity | 106 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 145 dB peak @ 1 m |
| Recommended amplifier power | 4,480 W |
| Nominal impedance | LF 8 Ω · MF 8 Ω · HF 16 Ω |
| Amplification | Tri-amplified via system DSP amplifier |
| Connectors | 2 × NL8 speakON (in / link) |
| Pin map | 1+/1− LF · 2+/2− MF · 3+/3− HF · 4+/4− not linked |
| Mounting | M10 fly points · yoke bracket · flown or ground-stacked |
| Dimensions (H × W × D) | 1180 × 470 × 560 mm |
| Net weight | 58 kg / 128 lb |
| Enclosure | 18 mm Baltic birch · Polyurea finish |
| Grille | Powder-coated perforated steel with acoustic cloth backing |
| Handles | 2 side · 2 rear recessed |
| Colour | Black (custom RAL on request) |
| Certifications | CE · TÜV · EAC · WEEE |
