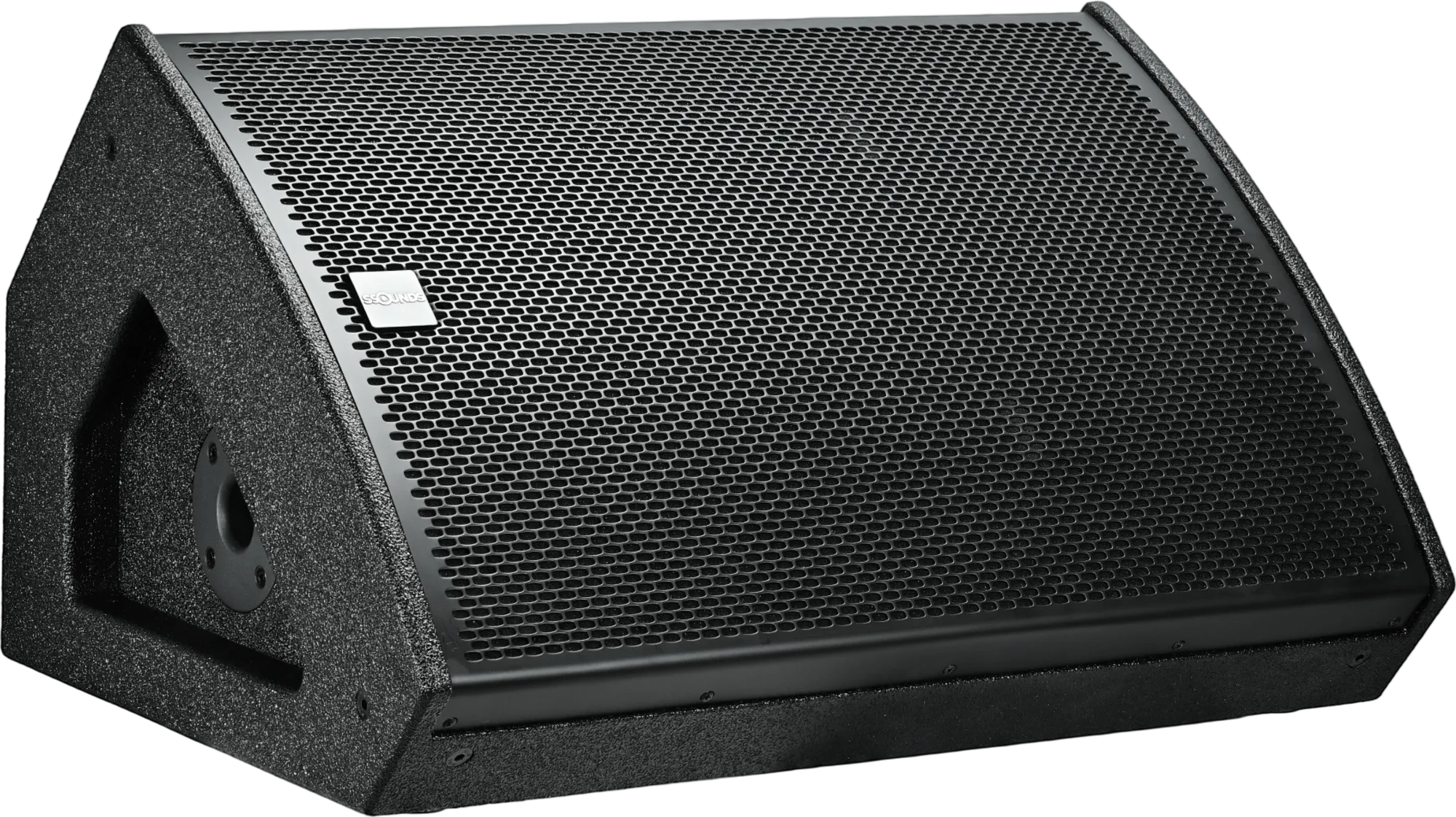

SSOUNDS SM15
| Specification | SSOUNDS SM15 SS-SM15 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 15″ two-way stage monitor |
| Drivers | 15″ LF + 1.4″-exit HF compression driver |
| Frequency response | 45 Hz – 20 kHz (−10 dB) |
| Coverage | 70° × 50° |
| Sensitivity | 99 dB (1 W @ 1 m) |
| Maximum SPL | 132 dB peak @ 1 m |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 800 W |
| Nominal impedance | 8 Ω |
| Connectors | 2 × NL4 speakON (link through) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Form factor | Low-profile wedge · pole-mount socket for upright use |
| Dimensions (H × W × D) | 580 × 430 × 375 mm |
| Net weight | 20 kg / 44 lb |
| Enclosure | Baltic birch · Polyurea · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
| Datasheet | Download |
| Enquire | Request quote |
