Compare
Side-by-side comparison
Select up to 3 SSOUNDS systems and compare specifications, coverage, and performance data.

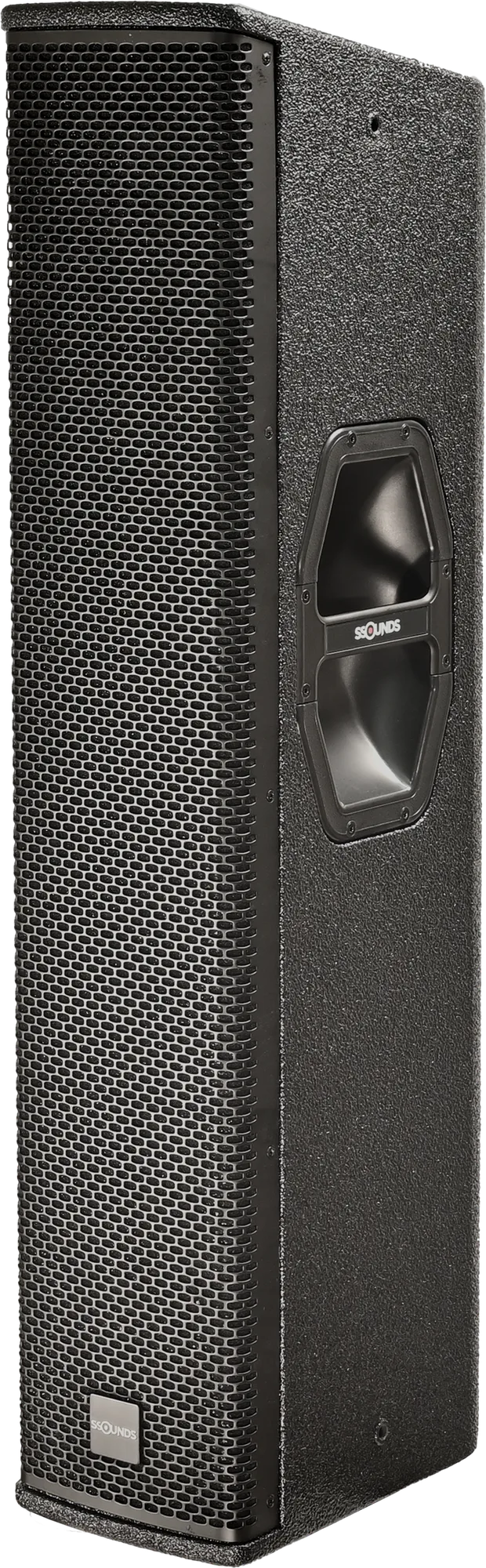

SSOUNDS XTO 4.6
| Specification | SSOUNDS XTO 4.6 SS-XTO-46 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Configuration | Passive modular column array element |
| Frequency response | 60 Hz – 20 kHz |
| Type | Passive Compact Line Array Element |
| Driver Configuration | 4× 6" LF + 2× 1" HF compression driver |
| Coverage (H × V) | 120° H × 10° V (per module) |
| Frequency Response | 100 Hz – 18 kHz |
| Maximum SPL | 128 dB peak |
| Sensitivity | 98 dB (1W/1m) |
| Low–mid | 4 × 6.5″ drivers |
| Peak SPL | 127dB |
| High frequency | Waveguide-loaded compression tweeter array |
| Coverage (H×V) | 110° × 8° |
| Power handling | 400 W AES / 1600 W peak |
| Nominal Impedance | 16Ω |
| Nominal impedance | 8 Ω |
| Programme Power | 600W |
| Connectors | 2× NL4 Speakon |
| Crossover | Passive |
| Dimensions (H×W×D) | 520 × 180 × 260mm |
| Weight | 11.2kg |
| System | Inter-module coupling · array bracket / pole mount |
| Enclosure | Multi-laminate · Polyurea |
| Finish | Polyurea + powder-coat steel grille |
| Datasheet | Download |
| Enquire | Request quote |
