SSOUNDS XTO 12P

Elemento de gran formato del sistema XTO, trifónico cuadruplemente amplificado, 149 dB de SPL pico desde un elemento de gira con cableado Socapex.

touringconcertline-array

Solicitar presupuesto Hablar con un ingeniero Compare

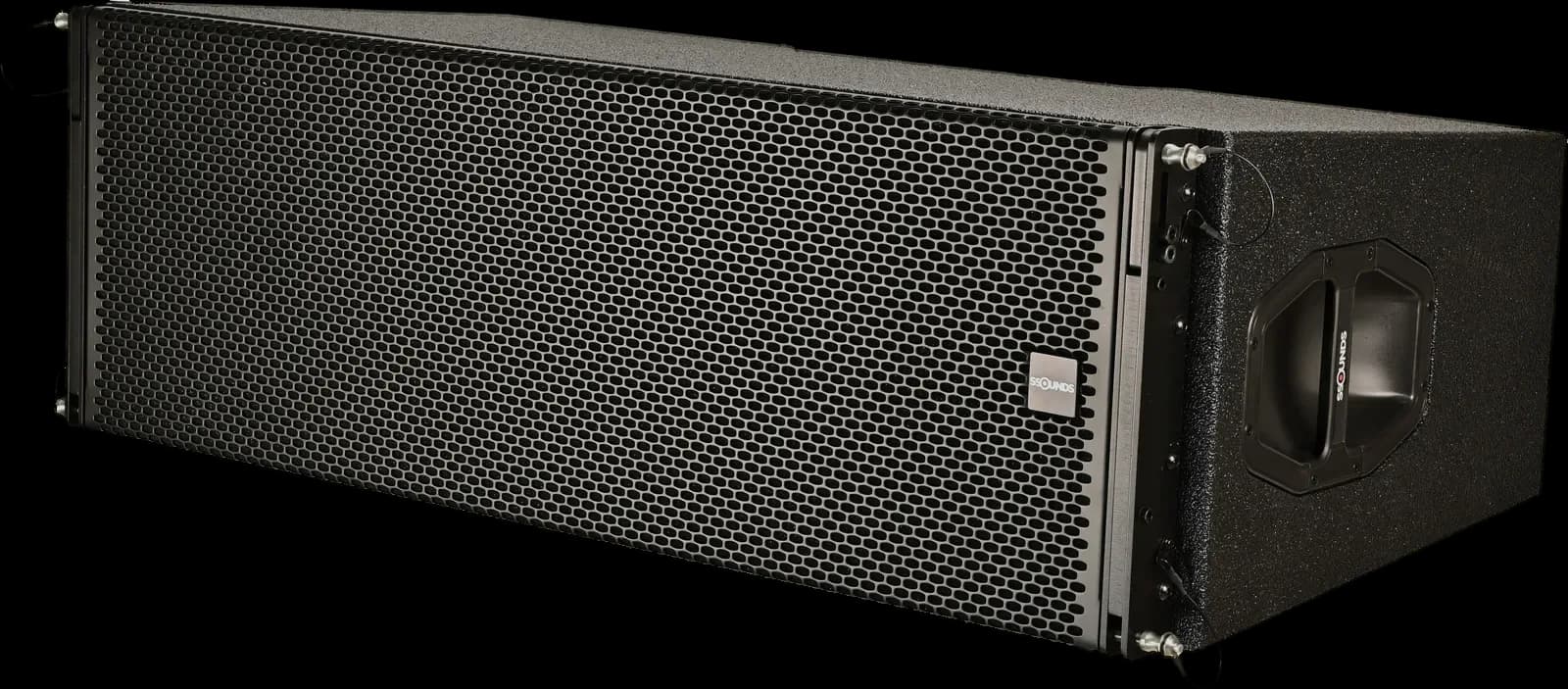

El XTO 12P es el elemento de trabajo del sistema XTO, la plataforma de gira de gran formato de SSOUNDS. Dos drivers de 12", un medio de alta excursión de 10" y dos drivers de compresión de 3" ofrecen 149 dB de SPL pico con respuesta que alcanza los 35 Hz. Cuadruplemente amplificado mediante DSP de sistema con un cableado de gira Socapex de 8 polos, rigging Fast-Set con ángulos de 0° a 7° en herrajes de titanio de alta calidad, y construcción en abedul báltico de 18 mm con acabado de poliurea. Vuela con el mismo lenguaje de rigging, la misma plataforma de amplificación y la misma biblioteca de presets que cualquier otro módulo del sistema, por lo que un diseño se amplía o reduce sin cambiar el método. Por encima se encuentra el XTO 14P para colgadas a escala de estadio. Por debajo de aproximadamente 18,000 de capacidad, el 12P suele ser la respuesta correcta, y es la caja que volamos cuando el espectáculo no puede ser menos que perfecto.

Part of the XTO System

The large-format workhorse. Arena and festival main hangs, and the outfill section under a 14P.

XTO stands for Xtended Touring Output. The large-format touring platform: the elements built for the longest throws and the highest output in the range, rigged and amplified as one system.

The XTO System

Key features

2 × 12″ LF, 10″ MF and 2 × 3″ HF compression drivers
149 dB peak SPL, 35 Hz – 20 kHz (−10 dB)
Quad-amplified via system DSP with 8-pole Socapex touring loom
High-grade titanium rigging with Fast-Set 0°–7° splay
Up to 24 elements per hang
18 mm Baltic birch enclosure with Polyurea finish
DynaControl holds the tuned response flat at maximum SPL
PhaseTrue FIR crossovers keep the impulse response coherent

Specifications

Engineering data. The conditions each figure is specified under are stated below the table.

General

Type: 3-way line-array element · quad-amplified
Certifications: CE · TÜV (rigging system) · EAC · WEEE

Components

Low frequency: 2 × 12″ cone drivers, dipolar arrangement · 8 Ω
Mid frequency: 1 × 10″ horn-loaded cone driver · 8 Ω
High frequency: 2 × 1.4″ exit compression drivers, 3″ coil · 8 Ω

Acoustic

Frequency response²: 35 Hz – 20 kHz (−10 dB)
Coverage⁴: 70° or 100° × 8°
Directivity control⁴: Nominal horizontal maintained to 350 Hz
Sensitivity³: 109 dB SPL nominal (1 W @ 1 m)
Maximum SPL¹: 149 dB peak @ 1 m

Electrical

Recommended amplifier power⁵: 5,480 W
Nominal impedance⁶: LF 8 Ω · MF 8 Ω · HF 8 Ω
Crossover: 220 Hz · 900 Hz
Amplification: Quad-amplified by SSOUNDS D24X system DSP amplifier (LF1 · LF2 · MF · HF)
Cabinets per amplifier: 2 per quad amplifier · two 8 Ω sections in parallel present 4 Ω per channel

Connections

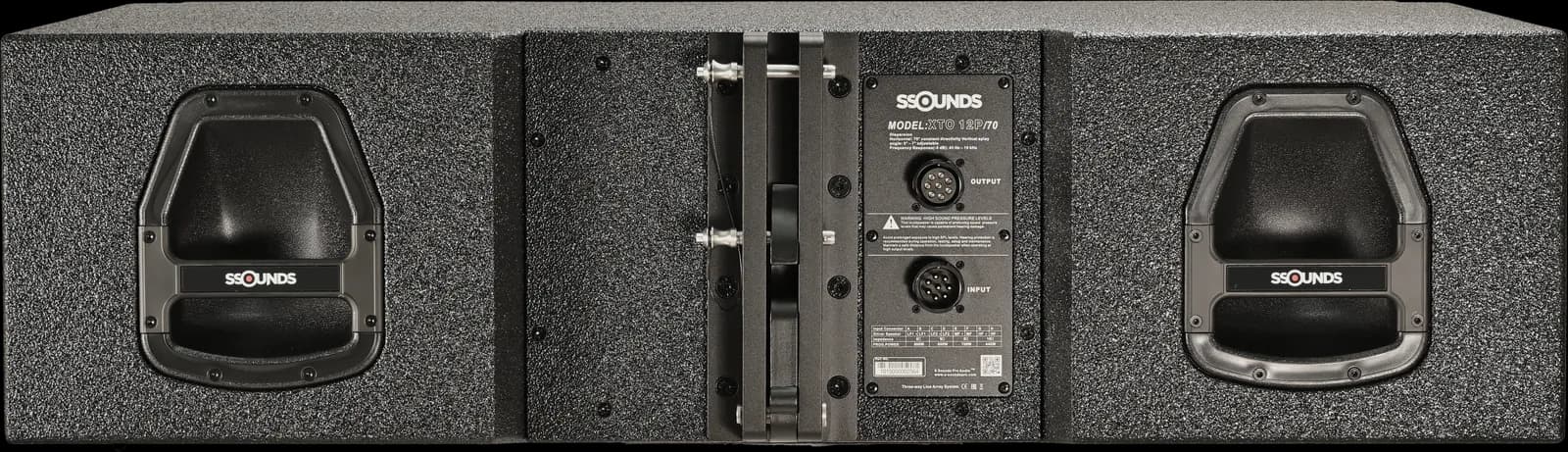

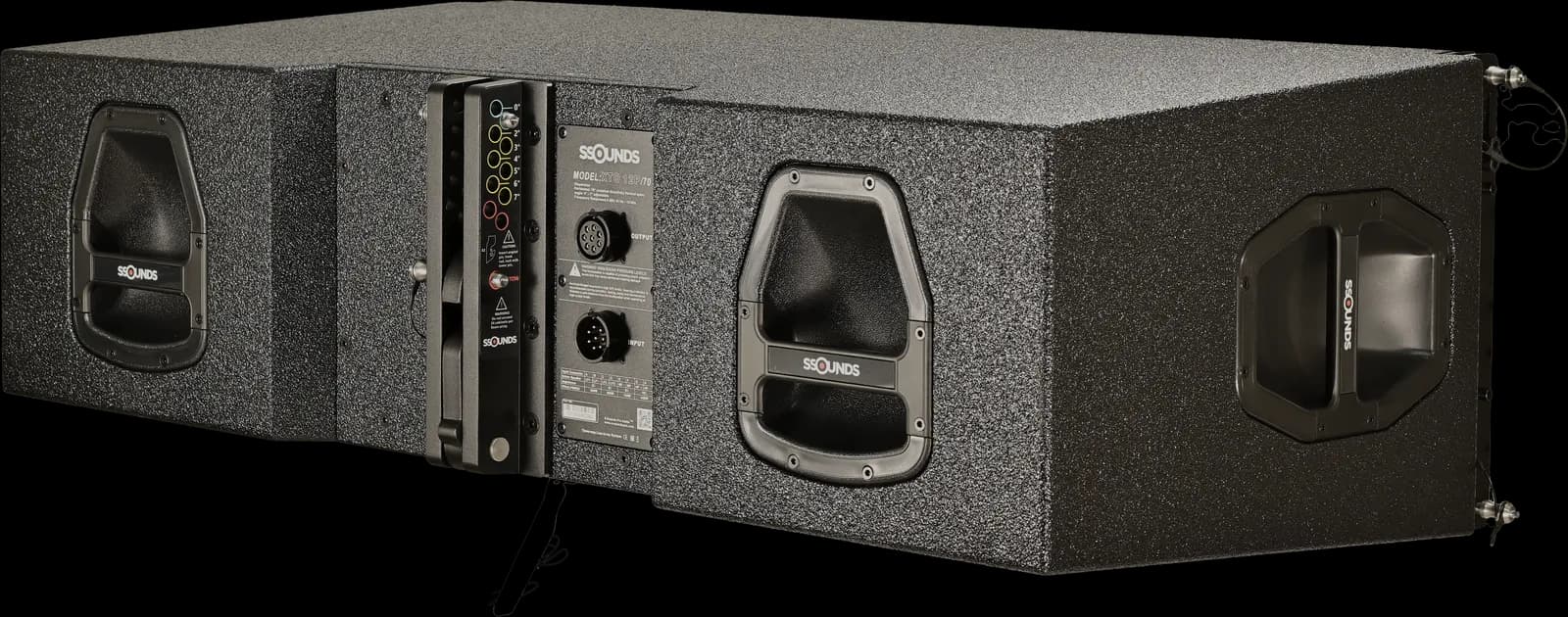

Connectors: 8-pole Socapex input + link output
Pin map: A/B LF1 · C/D LF2 · E/F MF · G/H HF (8-pole Socapex)

Rigging

System: High-grade titanium 3-point captive rigging · Fast-Set splay
Splay angles: 0° – 7° adjustable
Array compatibility: Locks with XTO 10P and XTO 8P via transition hardware for far-throw and downfill sections
Max per array: Up to 24 elements per hang

Physical

Dimensions (H × W × D)⁸: 360 × 1123 × 620 mm
Net weight⁷: 67 kg / 148 lb
Enclosure: 18 mm Baltic birch · Polyurea finish
Grille: Powder-coated perforated steel with acoustic cloth backing

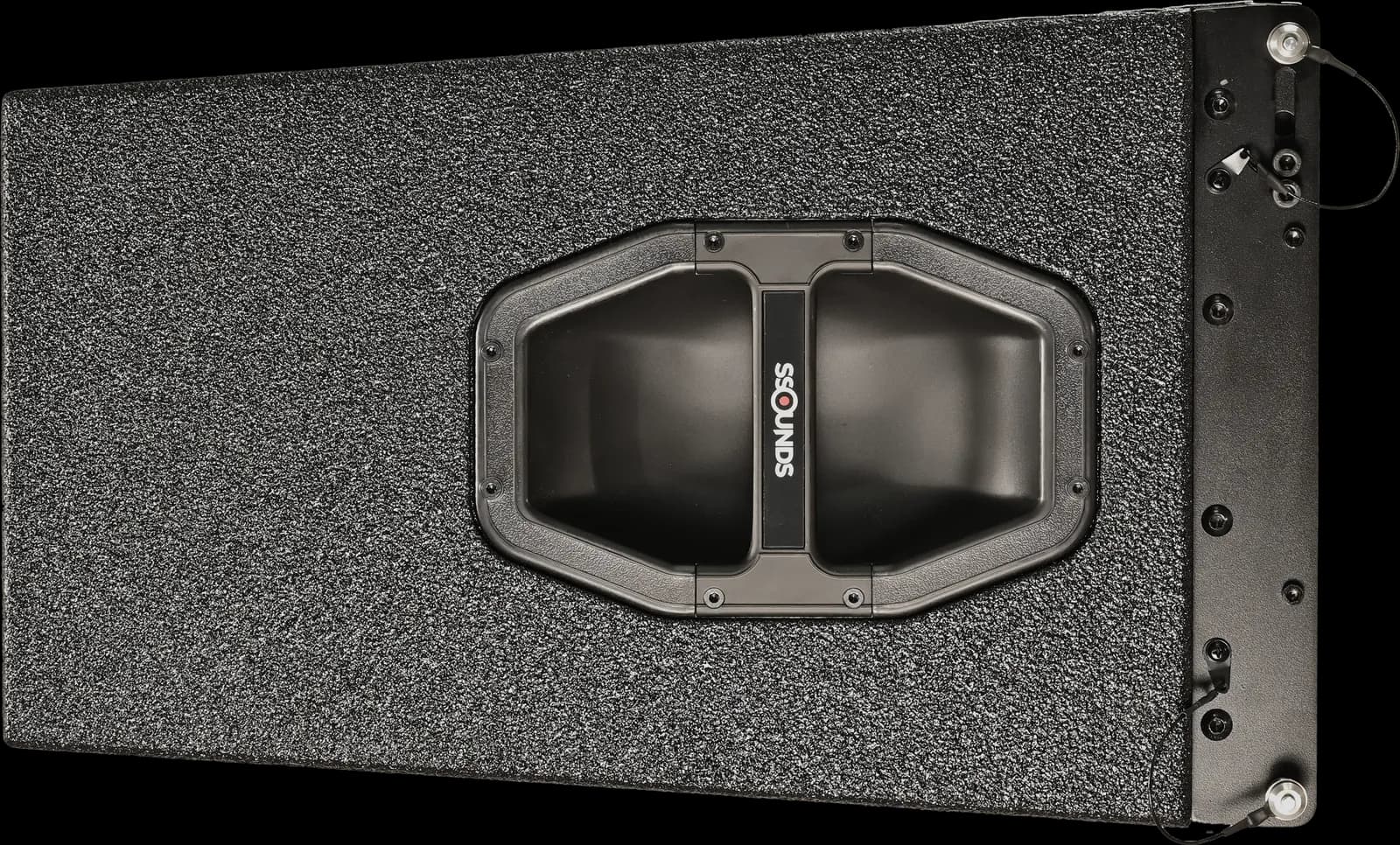

Handles: 2 side · 2 rear recessed
Colour: Black (custom RAL on request)

Measurement conditions

Maximum SPL is the peak level at 1 m, driven with pink noise at crest factor 4 to the clipping point of the recommended amplifier, with the SSOUNDS system preset applied. Full-range enclosures are specified under free-field conditions; figures marked half-space are specified over a reflecting plane, the condition subwoofers are deployed in, which adds approximately 6 dB.
Frequency response is specified on axis at 1 m in a free field. The tolerance the figure is referenced to is stated alongside it; where no tolerance is given, the figure is the −6 dB bandwidth.
Sensitivity is specified at 1 W into the nominal impedance at 1 m on axis, averaged across the pass band of the enclosure.
Coverage angles are nominal −6 dB values averaged across the pass band. Per-octave directivity data is available from SSOUNDS system design support for prediction and modelling.
Recommended amplifier power is the amplifier output SSOUNDS specifies for this enclosure, driven with the SSOUNDS system preset. It guides amplifier selection and is not an AES power-handling rating for the transducers.
Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
Net weight excludes packaging, flight case, accessories and optional rigging hardware.
Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.

Directivity

35 Hz15.8 kHz

Directivity computed by the SSOUNDS system prediction engine from this product's driver complement, the same dataset the printed data sheet uses. 1/24-octave band-power resolution; values are dB relative to on-axis.

System operation

Recommended: SSOUNDS D24X quad amplifier, two XTO 12P per amplifier, each channel driving the same section (LF1, LF2, MF, HF) across both cabinets. Two 8 Ω sections in parallel present 4 Ω per channel. Two cabinets per amplifier is a design choice, not a limit: it gives the resolution to gain-shade and HF-shade the array zone by zone, and to set far-throw and downfill sections independently of the main hang. Load the XTO 12P preset and run the Socapex loom carrying LF1, LF2, MF and HF. The XTO 12P locks with XTO 10P and XTO 8P via transition hardware, so a single hang can carry a 12P main section over a 10P/8P downfill. Typical deployments, 12 × XTO 12P flown per side with 6 × XTO S218 ground-stacked: stadium and festival main hangs. 8 × XTO 12P with 4 × S218: arena and large open-air. 6 × XTO 12P over 4 × S218: large auditoria and stadium worship.

Downloads

Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.

Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
