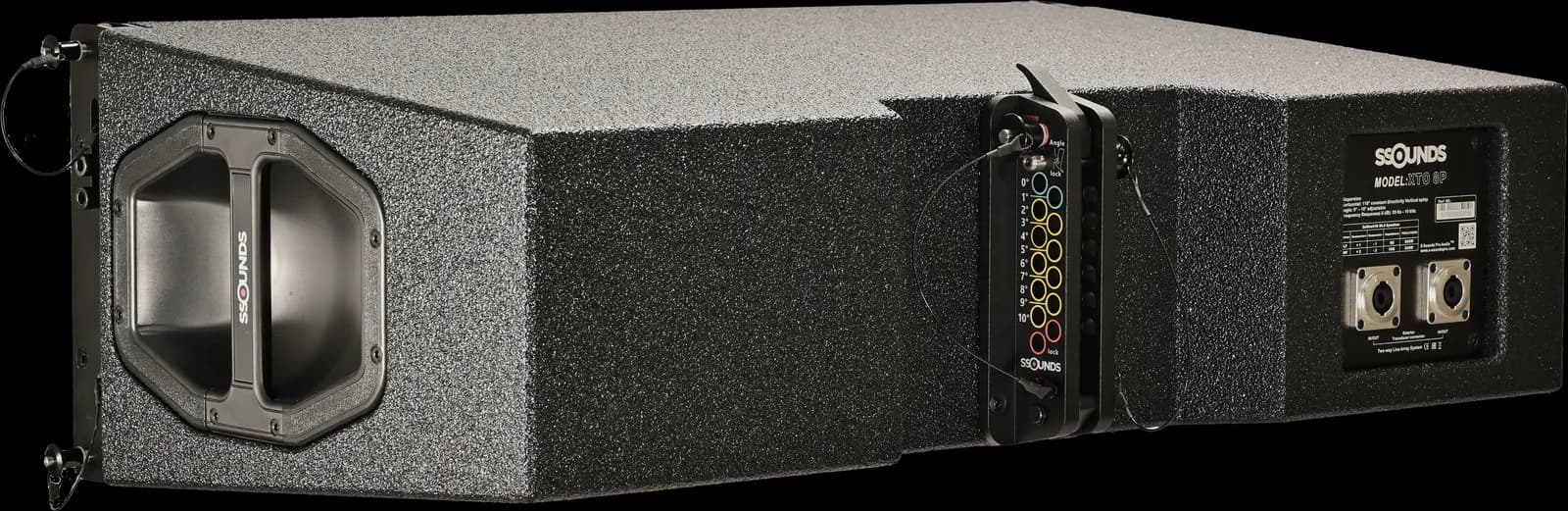

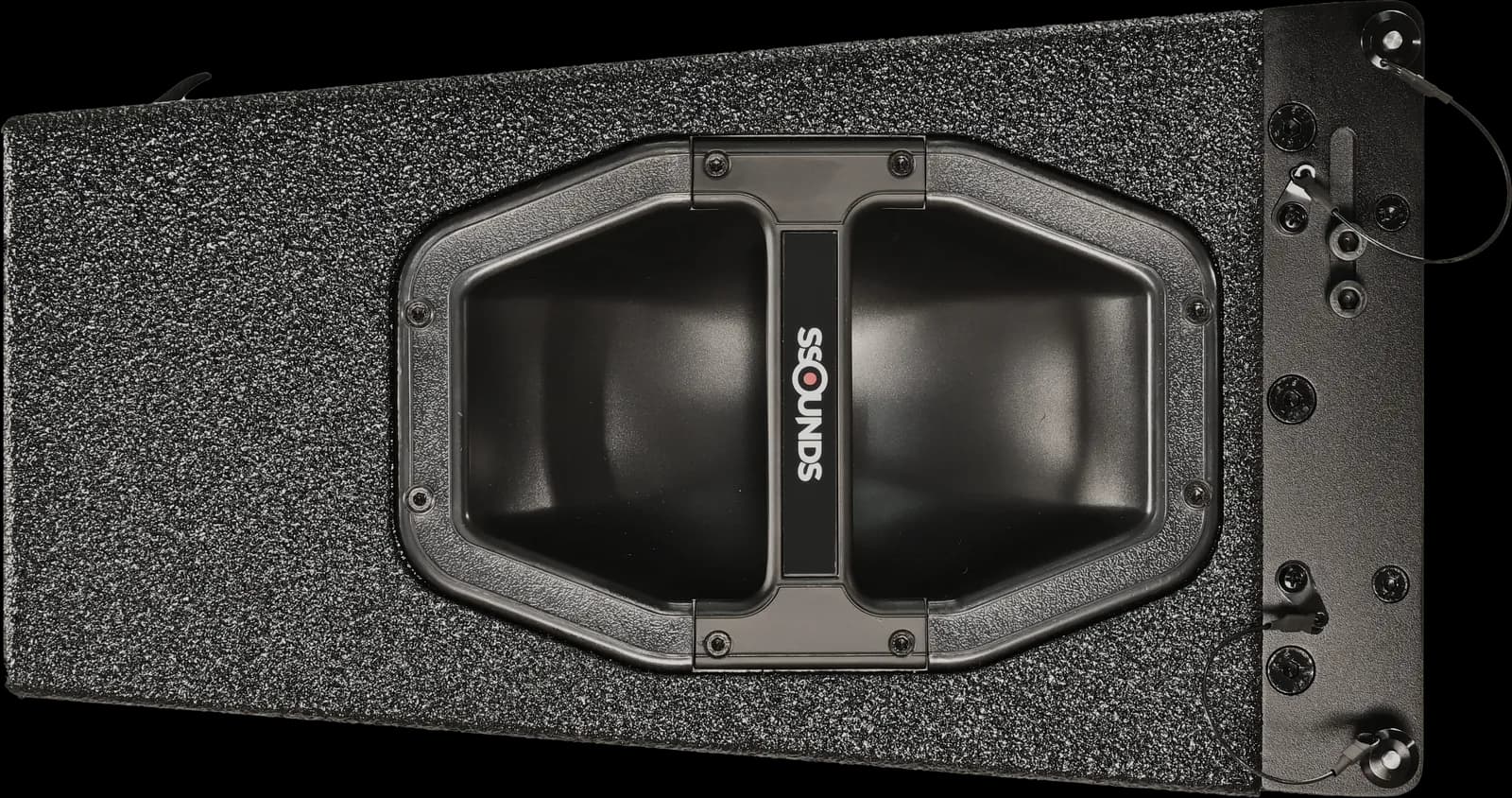

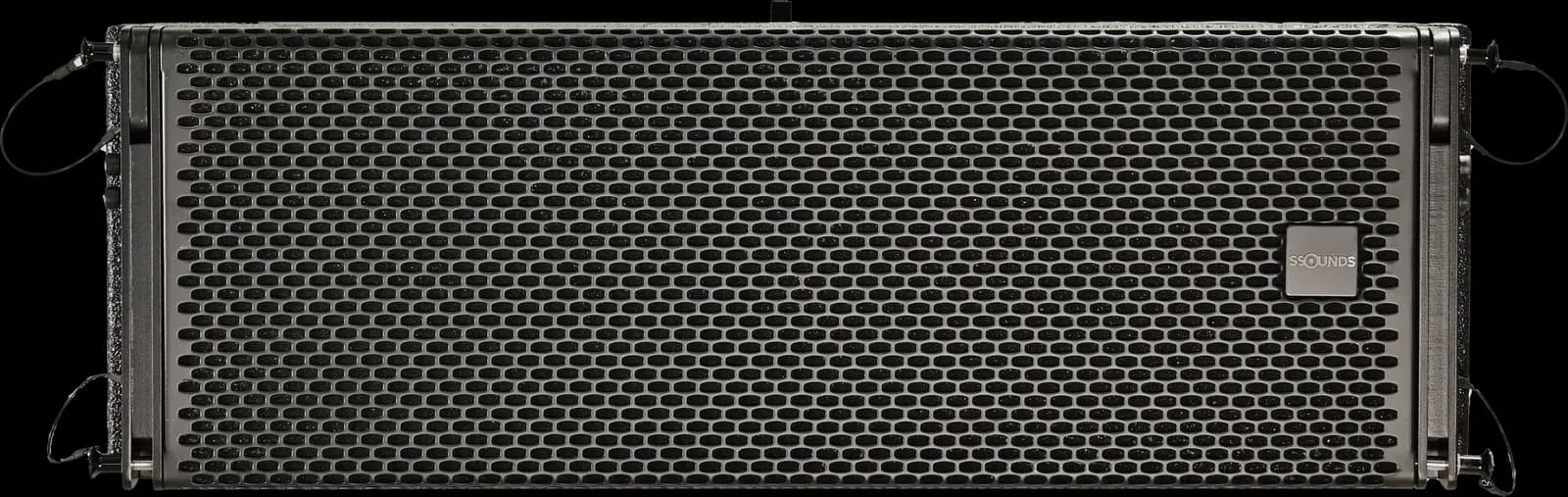

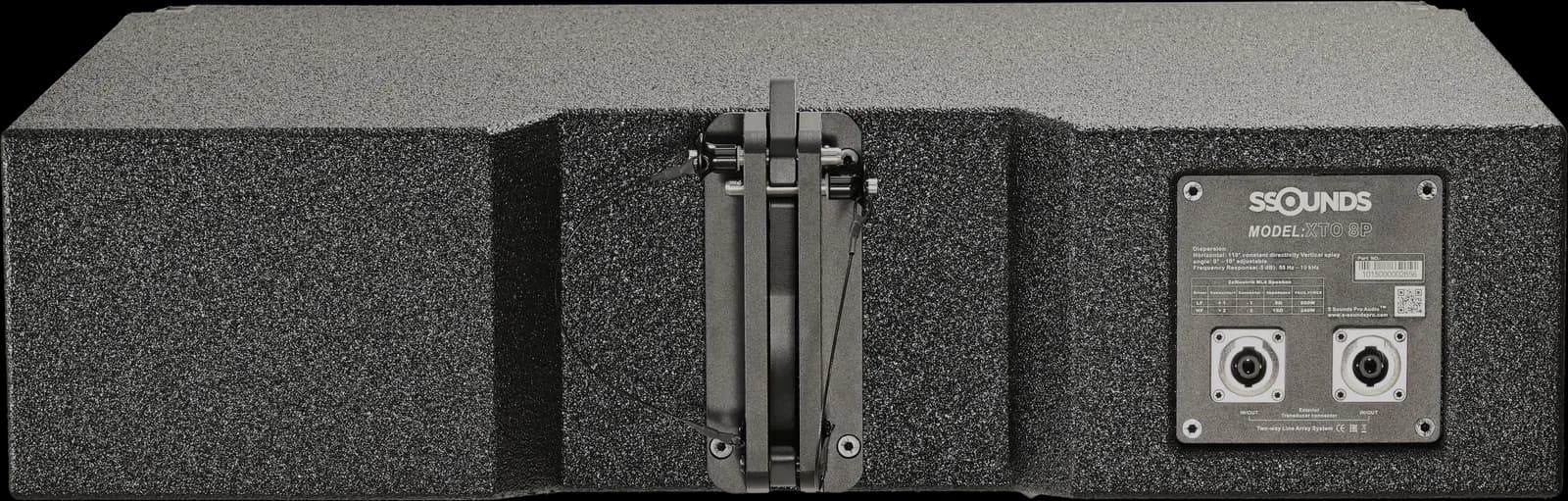

SSOUNDS XTO 8P

XTO 시스템의 컴팩트 요소, 2웨이 바이앰프 8인치, 110° 일정 지향성, 141dB 피크, 0°~10° 스플레이.

worshipinstallcompactline-array

XTO 8P는 XTO 시스템의 컴팩트 요소입니다. 듀얼 8인치 드라이버와 900Hz에서 크로스오버되는 3인치 컴프레션 드라이버가 55Hz에서 20kHz까지 107dB 감도와 141dB 피크를 제공합니다. XTO 10P와 캐비닛 형식 및 리깅을 공유하며, 다운필로 그 바로 아래에 잠기고, 색상으로 구분된 0°~10° 스플레이 핀과 NL4 연결을 갖추고 있습니다. 극장, 예배당, 기업용 AV: 전체 시스템의 혈통과, 레인지에서 가장 큰 행잉과 동일한 리깅 및 프리셋 언어를 제공합니다.

Part of the XTO System

Compact element for theatre, side hangs, delays and downfill.

XTO stands for Xtended Touring Output. The large-format touring platform: the elements built for the longest throws and the highest output in the range, rigged and amplified as one system.

The XTO System

Key features

2 × 8″ LF and a 3″ compression driver crossed at 900 Hz
141 dB peak SPL from a 30 kg cabinet, 55 Hz – 20 kHz (−10 dB)
110° constant directivity with colour-coded 0°–10° splay pins
Locks directly beneath the XTO 10P as downfill, identical cabinet and rigging
Bi-amplified over NL4 (LF 8 Ω · HF 16 Ω), high-grade titanium rigging
Up to 24 elements per hang

Specifications

Engineering data. The conditions each figure is specified under are stated below the table.

General

Type: 2-way line-array element · bi-amplified
Certifications: CE · TÜV (rigging system) · EAC · WEEE

Components

Low frequency: 2 × 8″ cone drivers with phase plug, dipolar arrangement · 8 Ω
High frequency: 1 × 1.4″ exit compression driver, 3″ coil · 16 Ω

Acoustic

Frequency response²: 55 Hz – 20 kHz (−10 dB)
Coverage⁴: 110° × 8°
Sensitivity³: 107 dB SPL nominal (1 W @ 1 m)
Maximum SPL¹: 141 dB peak @ 1 m

Electrical

Amplification: Bi-amplified by SSOUNDS D14X system DSP amplifier
Recommended amplifier power⁵: 1,040 W
Nominal impedance⁶: LF 8 Ω · HF 16 Ω
Crossover: 900 Hz

Connections

Connectors: 2 × NL4 speakON (in / link)
Pin map: 1+/1− LF · 2+/2− HF

Rigging

System: High-grade titanium 3-point captive rigging · colour-coded splay pins
Splay angles: 0° – 10° adjustable
Array compatibility: Shares cabinet dimensions and rigging with XTO 10P, locks directly as far-throw and downfill; locks with XTO 12P via transition hardware
Max per array: Up to 24 elements per hang

Physical

Dimensions (H × W × D)⁸: 320 × 780 × 560 mm
Net weight⁷: 30 kg / 66 lb
Enclosure: 15 mm Baltic birch · Polyurea finish
Grille: Powder-coated perforated steel with acoustic cloth backing
Handles: 2 side · 2 rear recessed
Colour: Black (custom RAL on request)

Measurement conditions

Maximum SPL is the peak level at 1 m, driven with pink noise at crest factor 4 to the clipping point of the recommended amplifier, with the SSOUNDS system preset applied. Full-range enclosures are specified under free-field conditions; figures marked half-space are specified over a reflecting plane, the condition subwoofers are deployed in, which adds approximately 6 dB.
Frequency response is specified on axis at 1 m in a free field. The tolerance the figure is referenced to is stated alongside it; where no tolerance is given, the figure is the −6 dB bandwidth.
Sensitivity is specified at 1 W into the nominal impedance at 1 m on axis, averaged across the pass band of the enclosure.
Coverage angles are nominal −6 dB values averaged across the pass band. Per-octave directivity data is available from SSOUNDS system design support for prediction and modelling.
Recommended amplifier power is the amplifier output SSOUNDS specifies for this enclosure, driven with the SSOUNDS system preset. It guides amplifier selection and is not an AES power-handling rating for the transducers.
Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
Net weight excludes packaging, flight case, accessories and optional rigging hardware.
Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.

Directivity

55 Hz15.8 kHz

Directivity computed by the SSOUNDS system prediction engine from this product's driver complement, the same dataset the printed data sheet uses. 1/24-octave band-power resolution; values are dB relative to on-axis.

System operation

Recommended: SSOUNDS D14X, one channel pair per XTO 8P in bi-amplified mode with the XTO 8P preset loaded. Typical deployments, 6 × XTO 8P per side over 2 × XTO S18: theatres, houses of worship and corporate AV. 4 × XTO 8P as downfill beneath an XTO 10P or 12P hang: front-fill for the first rows.

Downloads

Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.

Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
