SS-M12

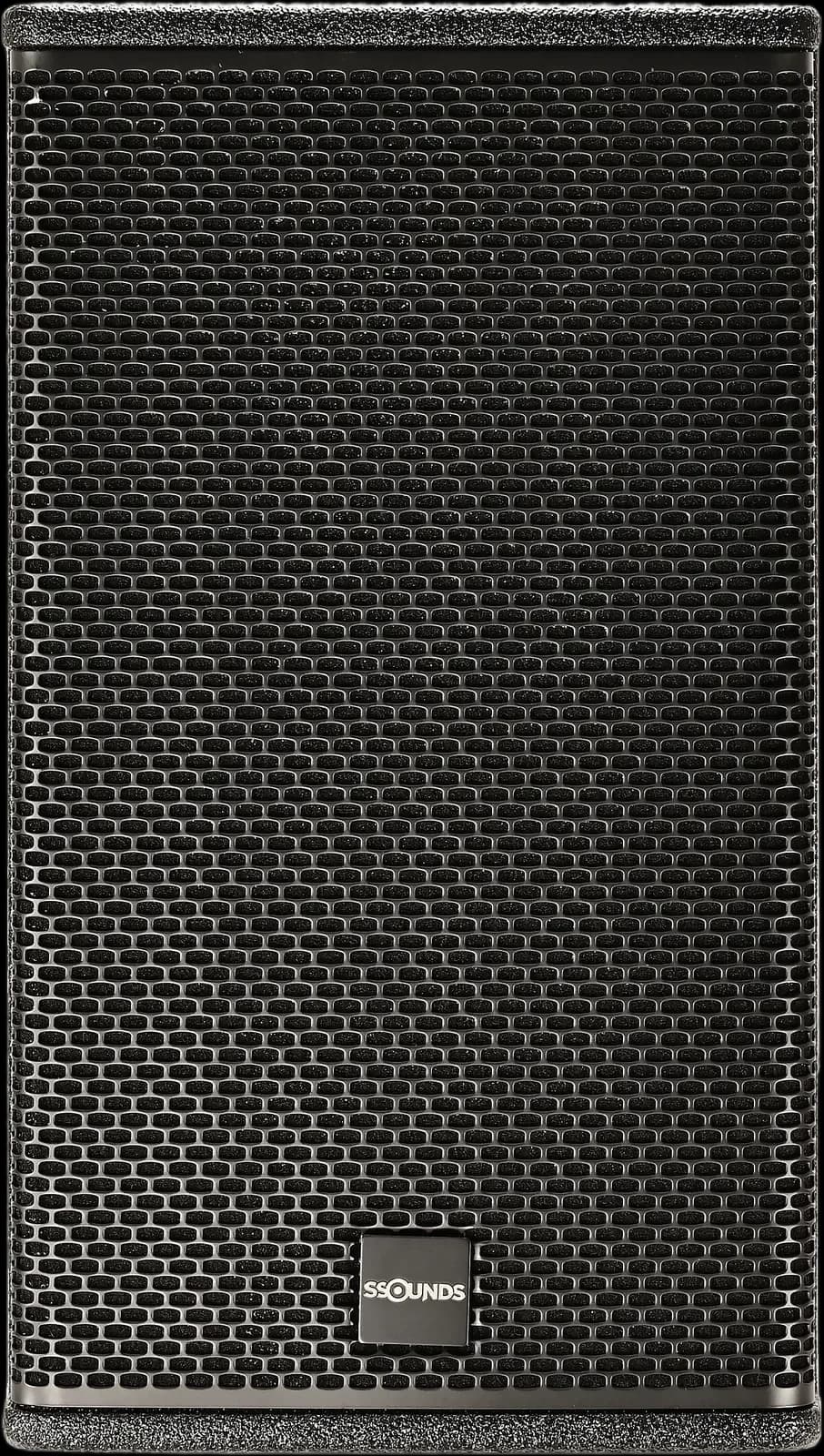

SSOUNDS M-12
12″ full-range — high-headroom mains or monitor, the all-rounder of the M-series.
portableFOHmonitorinstall
- Model / SKU
- SS-M12
- Brand
- SSOUNDS
- Condition
- new
- Type
- Passive
The M-12 is the all-rounder of the M-series: a 12″ full-range cabinet with the headroom for main PA in medium rooms and the angle for wedge-monitor duty — fly, stack or pole with M10 rigging.
Acoustic
| Configuration | 2-way passive full-range |
| Frequency response | 55 Hz – 20 kHz |
| Coverage (H × V) | 90° × 60° (rotatable) |
| Frequency Response | 55 Hz – 18 kHz |
| Maximum SPL | 131 dB peak |
| Sensitivity | 97 dB (1W/1m) |
| Sensitivity | 98 dB (1W/1m) |
General
| Type | Passive 2-Way Speaker |
| Driver Configuration | 12" woofer + 1.4" compression tweeter |
| Mounting | Yoke bracket ±180° tilt |
Components
| Low–mid | 1 × 12″ driver |
| High frequency | 1 × 1.4″ exit compression driver |
Electrical
| Nominal Impedance | 8 Ω |
| Programme Power | 400 W |
| Power handling | 450 W AES / 1800 W peak |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × Speakon NL4 |
Connections
| Connectors | 2× NL4 Speakon |
Physical
| Dimensions (H×W×D) | 390 × 310 × 310 mm |
| Weight | 14.5 kg |
| Enclosure | 15 mm birch · Polyurea |
| Finish | Polyurea + steel grille · M10 rigging · 45° monitor |
| Dimensions (H×W×D) | 600 × 380 × 360 mm |
| Weight | 20 kg |
