SSUNDS
Technical Datasheet
SSOUNDS
SS-M12SUB

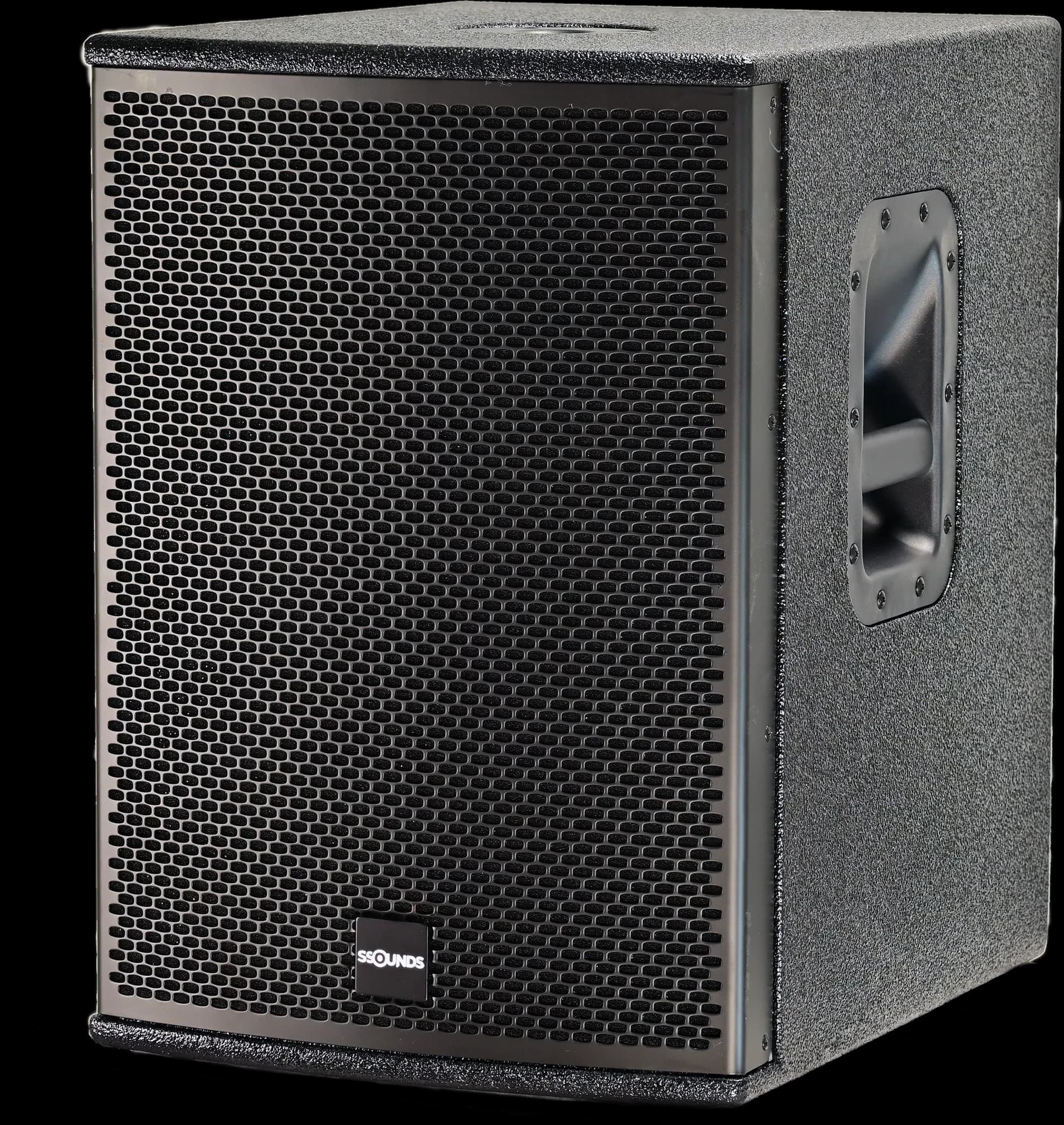

SSOUNDS M-12SUB
Ultra-compact 12″ subwoofer — discreet low-frequency support for small rooms and AV.
portablesubwoofercompactinstall
- Model / SKU
- SS-M12SUB
- Brand
- SSOUNDS
- Condition
- new
- Type
- Passive
The M-12SUB is an ultra-compact 12″ subwoofer for discreet low-frequency support under the smaller M-series tops — tight, articulate bass for corporate AV, hospitality and compact worship systems.
Acoustic
| Configuration | Bass-reflex 12″ subwoofer |
| Frequency response | 45 Hz – 150 Hz |
| Coverage (H × V) | Omni |
| Maximum SPL | 130 dB peak |
| Frequency Response | 45 Hz – 120 Hz |
| Sensitivity | 98 dB (1W/1m) |
| Peak SPL | 129 dB |
General
| Type | Passive Subwoofer |
| Driver Configuration | 1× 12" long-excursion LF |
| Enclosure | Vented bass-reflex |
Components
| Low frequency | 1 × 12″ neodymium long-excursion |
Electrical
| Power handling | 600 W AES / 2400 W peak |
| Nominal impedance | 8 Ω |
| Nominal Impedance | 8 Ω |
| Connectors | 2 × Speakon NL4 (in / link) |
| Programme Power | 1000 W |
Physical
| Enclosure | 15 mm birch · Polyurea |
| Finish | Polyurea + steel grille · pole socket + handles |
| Dimensions (H×W×D) | 430 × 500 × 500 mm |
| Dimensions (H×W×D) | 500 × 420 × 480 mm |
| Weight | 24 kg |
| Weight | 21 kg |
Connections
| Connectors | 2× NL4 Speakon |
