SSUNDS
Technical Datasheet
SSOUNDS
SS-M6

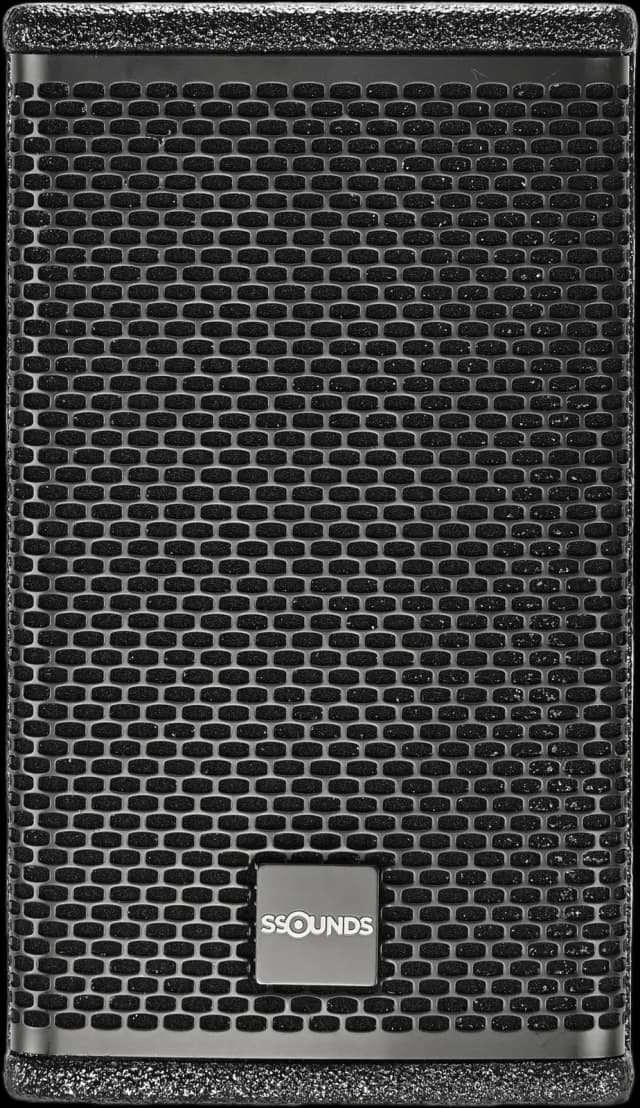

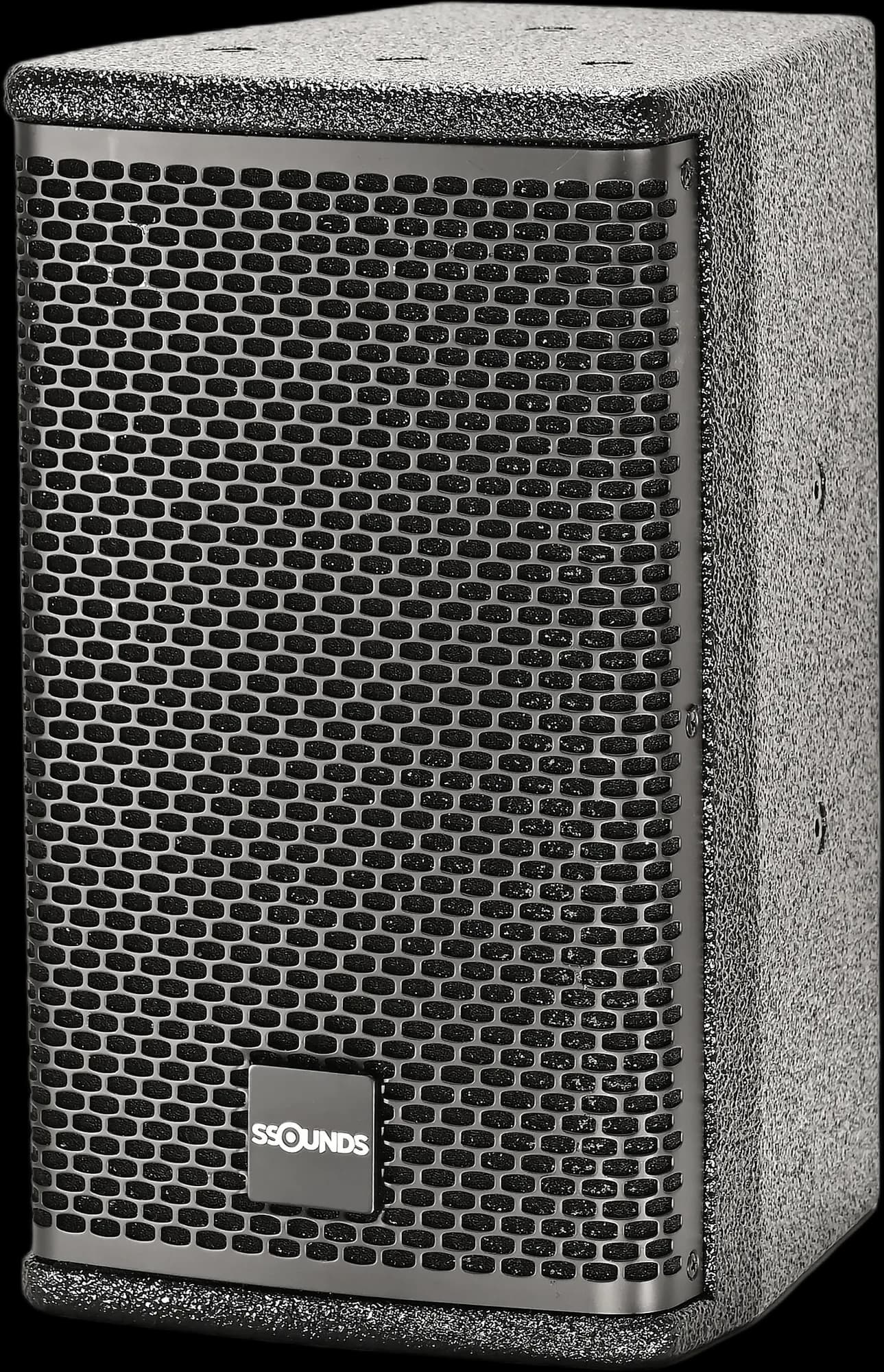

SSOUNDS M-6
Compact 6.5″ full-range — versatile install and portable speaker with M8 rigging.
installfillcompactcommercial
- Model / SKU
- SS-M6
- Brand
- SSOUNDS
- Condition
- new
- Type
- Passive
The M-6 is a compact 6.5″ full-range speaker that bridges discreet install and portable use — clean vocals and music with useful low-end, integrated handles and M8 rigging.
Acoustic
| Configuration | 2-way passive full-range |
| Frequency response | 90 Hz – 20 kHz |
| Coverage (H × V) | 100° × 100° |
| Maximum SPL | 122 dB peak |
| Frequency Response | 80 Hz – 20 kHz |
| Sensitivity | 91 dB (1W/1m) |
| Sensitivity | 91 dB (1W/1m) |
General
| Type | Passive 2-Way Coaxial Speaker |
| Driver Configuration | 6" woofer + 0.75" tweeter |
| Mounting | Surface / flush-mount |
Electrical
| Nominal Impedance | 8 Ω |
| Programme Power | 100 W |
| Power handling | 150 W AES / 600 W peak |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × Speakon NL4 |
Components
| Low–mid | 1 × 6.5″ driver |
| High frequency | 1 × 1″ compression driver |
Connections
| Connectors | Screw terminal |
Physical
| Dimensions (H×W×D) | 210 × 210 × 120 mm |
| Weight | 1.8 kg |
| Enclosure | Multi-laminate · textured paint |
| Finish | Textured paint + steel grille · M8 rigging |
| Dimensions (H×W×D) | 330 × 210 × 220 mm |
| Weight | 6 kg |
