SS-M8
SSOUNDS M-8

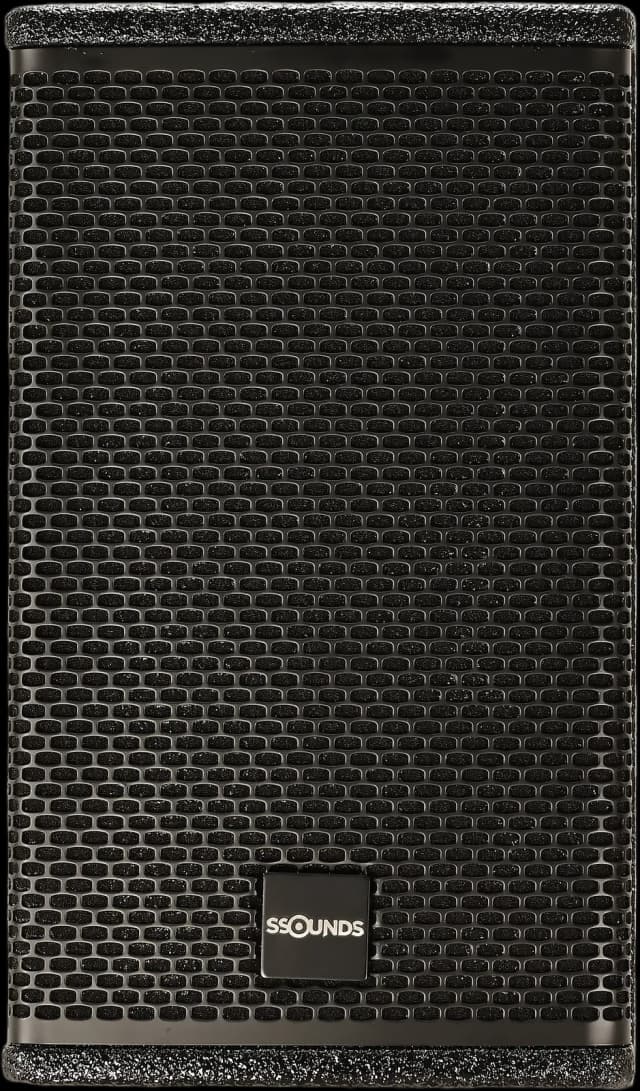

8″ full-range — high-output multipurpose box for portable PA, fill and install.
installportablecommercial
- Model / SKU
- SS-M8
- Brand
- SSOUNDS
- Condition
- new
- Type
- Passive
The M-8 is an 8″ full-range workhorse — a high-output multipurpose box for portable PA, monitor, delay and install duty, with handles and M8 rigging for fast deployment.
Acoustic
| Configuration | 2-way passive full-range |
| Frequency response | 70 Hz – 20 kHz |
| Coverage (H × V) | 90° × 90° |
| Maximum SPL | 126 dB peak |
| Frequency Response | 70 Hz – 18 kHz |
| Sensitivity | 94 dB (1W/1m) |
| Sensitivity | 94 dB (1W/1m) |
General
| Type | Passive 2-Way Speaker |
| Driver Configuration | 8" woofer + 1" compression tweeter |
| Mounting | Yoke bracket ±180° tilt |
Electrical
| Nominal Impedance | 8 Ω |
| Programme Power | 160 W |
| Power handling | 250 W AES / 1000 W peak |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × Speakon NL4 |
Components
| Low–mid | 1 × 8″ driver |
| High frequency | 1 × 1″ exit compression driver |
Connections
| Connectors | Screw terminal / NL4 Speakon |
Physical
| Dimensions (H×W×D) | 280 × 220 × 215 mm |
| Weight | 4.5 kg |
| Enclosure | 15 mm birch · Polyurea |
| Finish | Polyurea + steel grille · M8 rigging · 45° monitor |
| Dimensions (H×W×D) | 420 × 270 × 280 mm |
| Weight | 11 kg |
