Technical Data Sheet
Accessories
SSOUNDS
SS-WMB8
SSOUNDS Wall Mount Bracket
Tilt-adjustable wall and ceiling mount bracket for the M series and M3 column arrays. TÜV certified, rated to 80 kg.
At a glance
- Model / SKU
- SS-WMB8
- Category
- Accessories
- Brand
- SSOUNDS
- Drive
- Passive
- Condition
- New
Applications
Overview

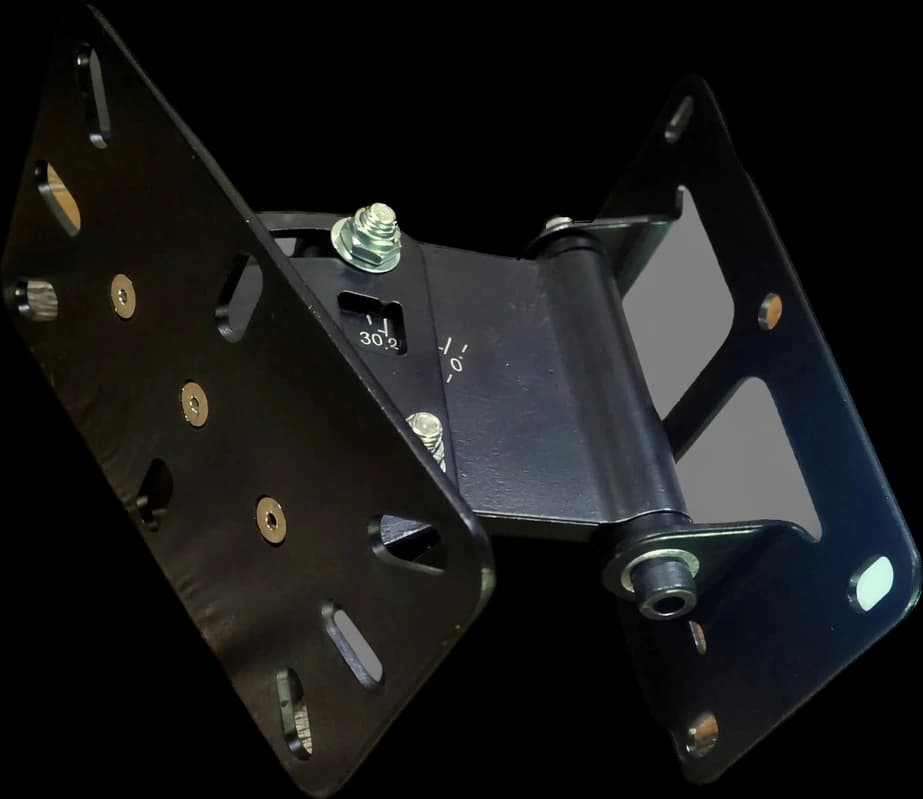

Steel wall and ceiling mount bracket for the compact SSOUNDS range, TÜV certified and rated to a maximum load of 80 kg. The hinged yoke sets tilt against an angle scale stamped on the bracket itself, from 0 degrees flat to 30 degrees, then locks with captive hardware so the aim cannot drift once the room is tuned. Slotted mounting holes on both plates give lateral adjustment during installation, and the same bracket serves the M-4, M-6 and M-8 point source cabinets and the M3.6P and M3.12P column arrays. Powder-coated steel throughout.
- TÜV certified, rated to a maximum load of 80 kg
- Fits M-4, M-6 and M-8 point source cabinets plus M3.6P and M3.12P column arrays
- Tilt set against an angle scale stamped on the bracket, 0 to 30 degrees
- Captive locking hardware holds the aim after tuning
- Slotted holes on both plates for lateral adjustment during installation
- Wall or ceiling mounting from the same part
- Powder-coated steel
Specifications
General
| Type | Tilt-adjustable wall and ceiling mount bracket |
| Compatibility | M-4, M-6, M-8, M3.6P, M3.12P |
| Certifications | TÜV |
Physical & construction
| Material | Powder-coated steel |
| Mounting | Wall or ceiling |
| Net weight1 | 7 kg / 15 lb |
Mechanical
| Maximum load | 80 kg / 176 lb |
| Tilt range | 0° to 30°, marked scale on the bracket |
| Adjustment | Slotted mounting holes on both plates |
| Locking | Captive locking hardware |
Notes
- 1.Net weight excludes packaging, flight case, accessories and optional rigging hardware.
- 2.All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.
Downloads & data files
- SSOUNDS Wall Mount Bracket: User Manualmanual
- SSOUNDS Wall Mount Bracket: Technical Data Sheetdatasheet
Loudspeaker data files for prediction software (GLL / CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Contact support@s-soundspro.com and we will send the current release for this model.
Architectural & engineering specification
The unit shall be of the SSOUNDS Wall Mount Bracket type, configured as a tilt-adjustable wall and ceiling mount bracket. The unit shall be constructed of Powder-coated steel, and shall weigh 7 kg / 15 lb. Rigging provision shall be Wall or ceiling. The unit shall be covered by the manufacturer's two (2) year limited warranty and shall be supplied by SSOUNDS or an SSOUNDS-authorised distributor. No alternate shall be accepted without prior written approval of the consultant or specifying engineer.
