SSOUNDS LC8.3
| Specification | SSOUNDS LC8.3 SS-LC83 |
|---|---|

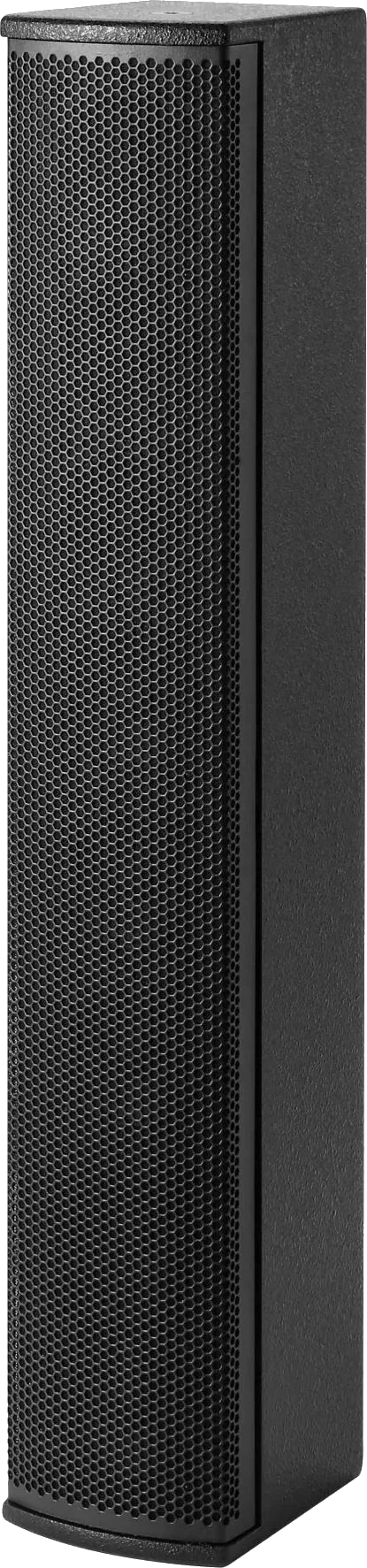

| Image |  |
| Brand | SSOUNDS |
| Type | Passive column array, full-range |
| Drivers | 8 × 3″ full-range, 0.75″ voice coil |
| Frequency response | 110 Hz – 18 kHz (−10 dB) |
| Coverage | 100° (H) × 18° (V) |
| Maximum SPL | 118 dB continuous · 124 dB peak @ 1 m |
| Sensitivity | 95 dB (1 W @ 1 m) |
| Power handling (AES / peak) | 200 W / 800 W |
| Nominal impedance | 4 Ω |
| Connectors | 4 × NL4 speakON |
| Mounting | Wall bracket |
| Dimensions (H × W × D) | 720 × 124 × 155 mm |
| Net weight | 8.6 kg / 19 lb |
| Datasheet | Download |
| Enquire | Request quote |
