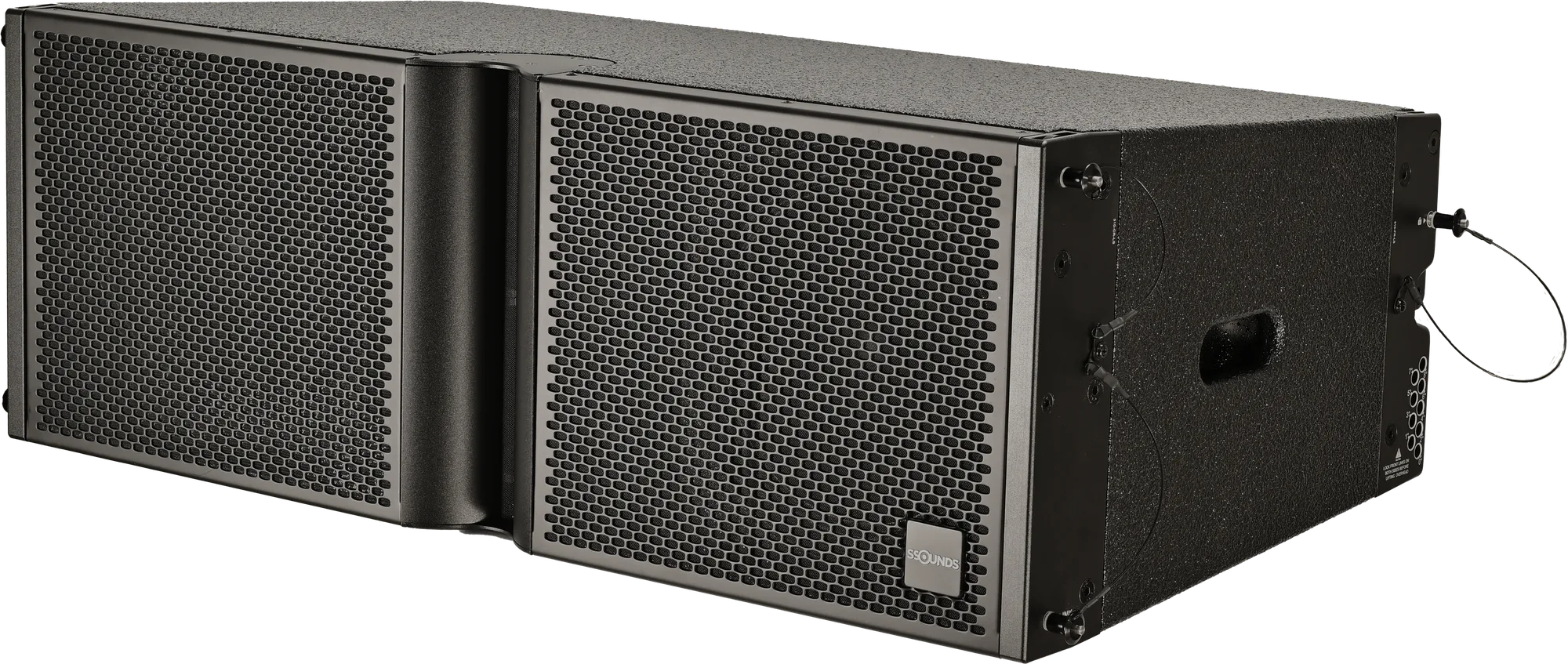

SSOUNDS LS310
| Specification | SSOUNDS LS310 SS-LS310 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 3-way line-array element · quad-amplified |
| Low frequency | 2 × 10″ cone drivers, dipolar arrangement · 8 Ω |
| Mid frequency | 1 × 8″ horn-loaded cone driver · 8 Ω |
| High frequency | 2 × 2.7″ diaphragm compression drivers on isophasic waveguide · 8 Ω |
| Frequency response | 46 Hz – 20 kHz (−10 dB) |
| Coverage | 110° × 8° |
| Directivity control | Nominal horizontal maintained to 300 Hz |
| Sensitivity | HF 112 dB · MF 106 dB · LF 102 dB (1 W @ 1 m) |
| Maximum SPL | 143 dB peak @ 1 m |
| Recommended amplifier power | 2,020 W |
| Nominal impedance | LF1 16 Ω · LF2 16 Ω · MF 16 Ω · HF 16 Ω |
| Crossover | 220 Hz · 900 Hz |
| Amplification | Quad-amplified by SSOUNDS D24X system DSP amplifier (D14X drives 2 cabinets) |
| Cabinets per amplifier | 2 per D14X · up to 4 per D24X · four 16 Ω sections in parallel present 4 Ω per channel |
| Connectors | 2 × NL8 speakON (in / link) |
| Pin map | 1+/1− LF1 · 2+/2− LF2 · 3+/3− MF · 4+/4− HF |
| System | High-grade titanium captive 3-point rigging · Fast-Set splay |
| Splay angles | 0° – 8° adjustable |
| Max per array | Up to 16 elements per hang |
| Dimensions (H × W × D) | 357 × 950 × 403 mm |
| Net weight | 39 kg / 86 lb |
| Enclosure | 12 mm and 18 mm Baltic birch combined · Polyurea finish |
| Grille | Powder-coated perforated steel with acoustic cloth backing |
| Handles | 2 side · 2 rear recessed |
| Colour | Black (custom RAL on request) |
| Certifications | CE · TÜV (rigging system) · EAC · WEEE |
