SSOUNDS · SS-LS310

SSOUNDS LS310

Flagship quad-amplified variable-directivity line array — the SSOUNDS reference for large-format touring and stadiums.

Request Quote

touringstadiumflagshipline-array

Request a Quote Talk to an Engineer Compare

The LS310 is the SSOUNDS flagship: a quad-amplified, variable-directivity line array engineered for the largest rooms and open-air productions. A three-way active acoustic core delivers reference-grade clarity with the headroom and long-throw control demanded by stadium-scale worship and touring, in the same class as the world's top-tier large-format systems. Every cabinet is modelled in our AI-assisted prediction software and tuned to ±1 dB before it ships.

Specifications

Engineering data — request the full datasheet for tender docs.

Acoustic

Configuration: 3-way active · quad-amplified line-array element
Frequency response: 40 Hz – 20 kHz (−10 dB)
Coverage (H × V): Variable directivity · 70°/90°/110° H × splay V
Maximum SPL: 147 dB peak
Frequency Response: 70 Hz – 18 kHz
Sensitivity: 100dB (1W/1m)
Sensitivity: —
Peak SPL: 132dB
Coverage (H×V): 90° × 15°

General

Type: Passive Line Array Element
Driver Configuration: 3× 10" LF + 2× 1.75" HF compression driver

Components

Low frequency: 2 × 10″ neodymium
Mid frequency: 4 × 6.5″ neodymium
High frequency: 2 × 3″ (1.4″ exit) compression drivers

Electrical

Nominal Impedance: 8Ω
Programme Power: 1200W
Power handling: LF 1200 W / MF 600 W / HF 240 W (AES)
Nominal impedance: LF 8 Ω · MF 8 Ω · HF 16 Ω
Crossover: Active 4-way DSP (external)
Connectors: 2 × Speakon NL8 (in / link)

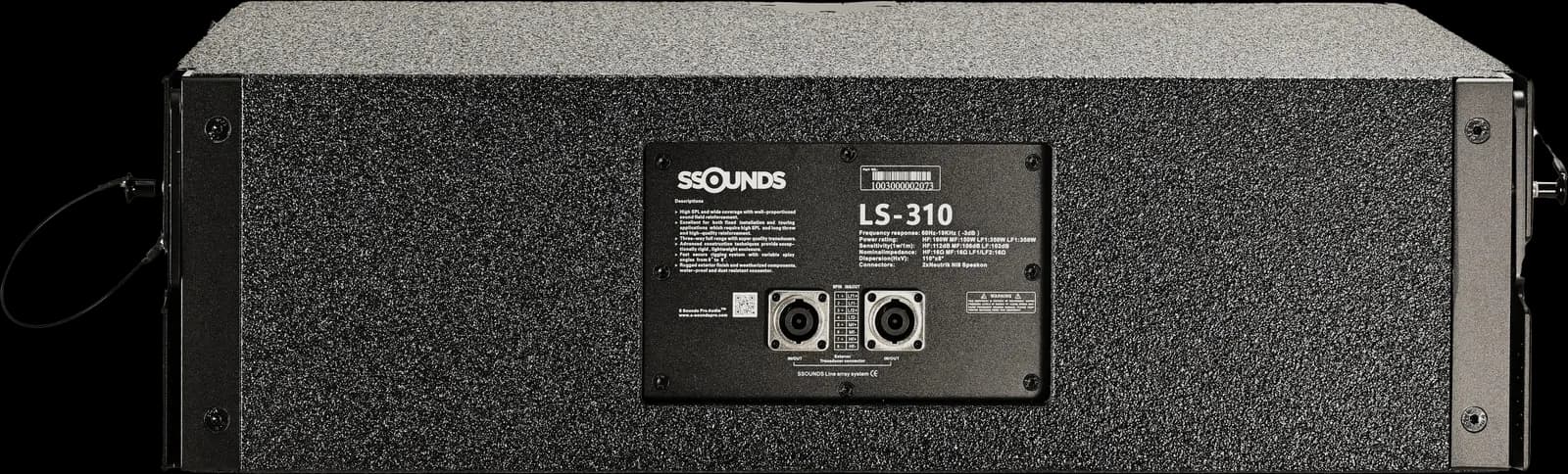

Connections

Connectors: 2× NL4 Speakon

Physical

Dimensions (H×W×D): 1120 × 280 × 390mm
Weight: 28kg
Enclosure: 18 mm Baltic birch · Polyurea
Finish: Polyurea + powder-coat steel grille
Dimensions (H×W×D): 390 × 1180 × 690 mm
Weight: 56 kg

Rigging

System: Captive 3-point quad-amp rigging · Fast-Set splay
Splay angles: 0° · 0.5° · 1° · 2° · 3° · 5° · 7° · 10°

Download datasheet (PDF)
