SSOUNDS M-12
| Specification | SSOUNDS M-12 SS-M12 |
|---|---|

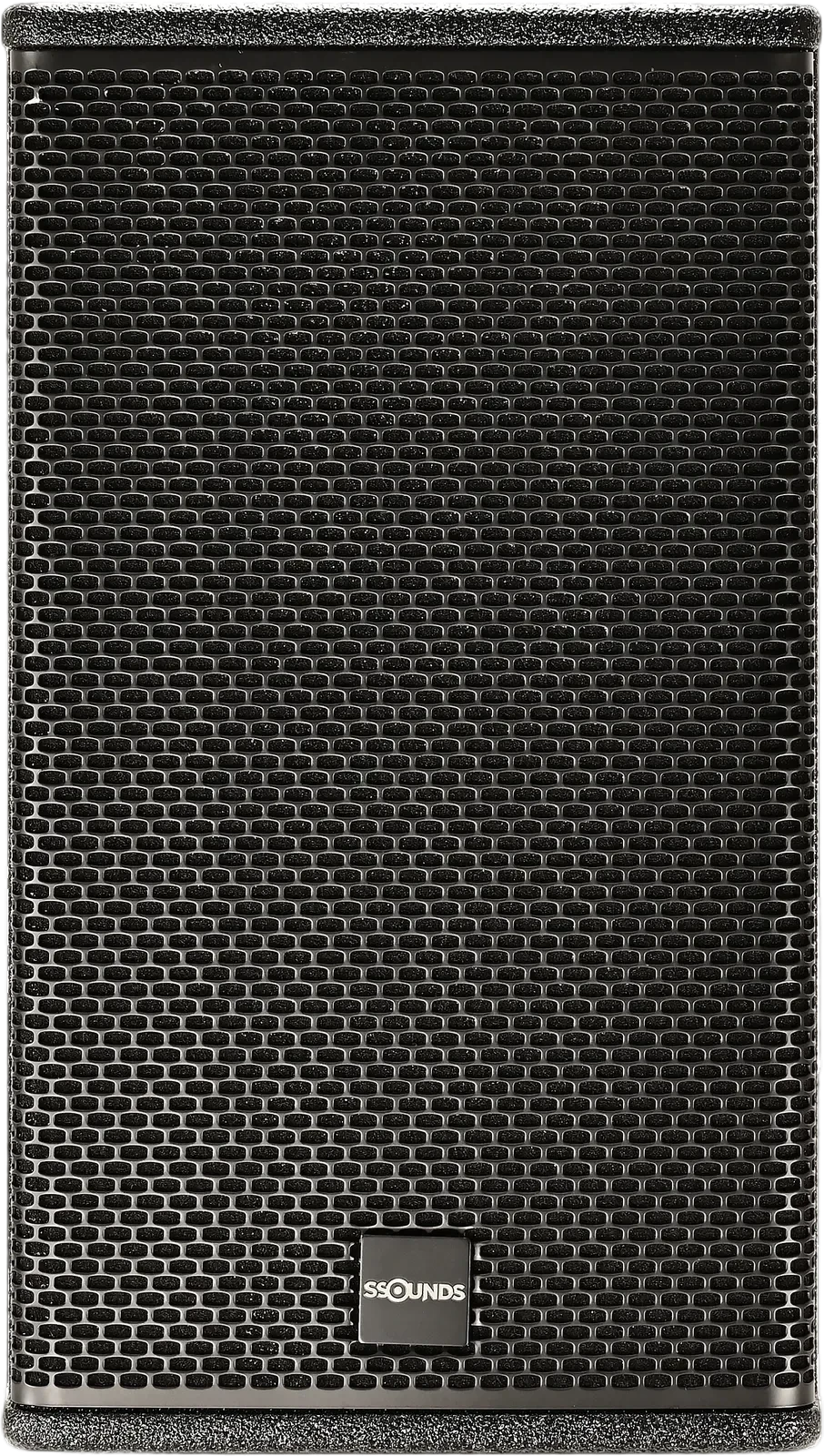

| Image |  |
| Brand | SSOUNDS |
| Type | Passive 2-way point source |
| Low frequency | 1 × 12″ driver |
| High frequency | 1 × 1.4″ exit compression driver |
| Frequency response | 55 Hz – 20 kHz (−10 dB) |
| Coverage | 90° × 60° (rotatable horn) |
| Maximum SPL | 131 dB peak @ 1 m |
| Sensitivity | 99 dB (1 W @ 1 m) |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 900 W |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Mounting | Yoke bracket ±180° · M10 inserts · 45° monitor angle |
| Dimensions (H × W × D) | 600 × 380 × 360 mm |
| Net weight | 20 kg / 44 lb |
| Enclosure | 15 mm birch · Polyurea · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
