SSOUNDS M-12SUB
| Specification | SSOUNDS M-12SUB SS-M12SUB |
|---|---|

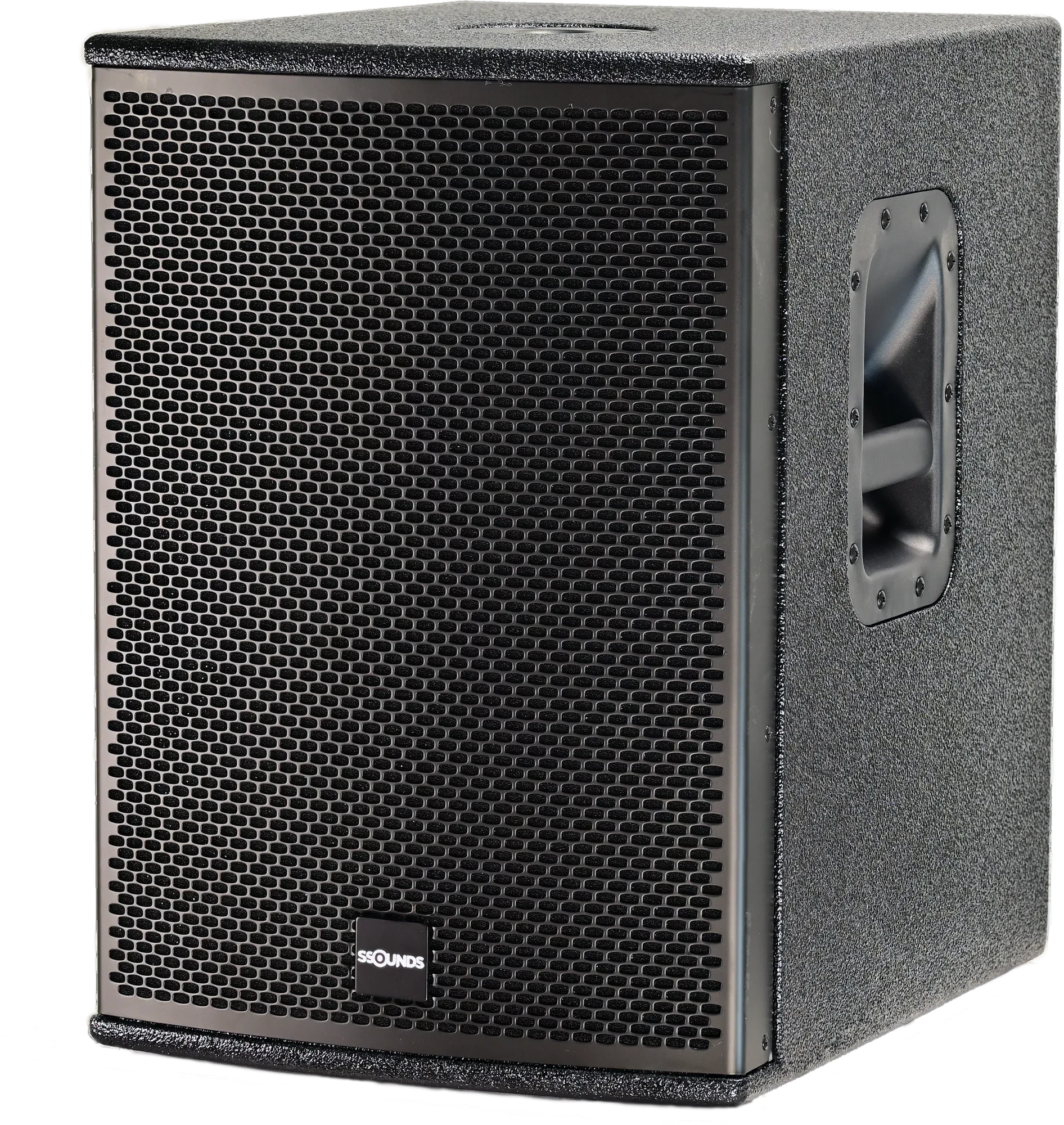

| Image |  |
| Brand | SSOUNDS |
| Type | Passive bass-reflex 12″ subwoofer |
| Low frequency | 1 × 12″ cone driver |
| Frequency response | 40 Hz – 300 Hz (−10 dB) |
| Sensitivity | 95 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 132 dB peak @ 1 m (half-space) |
| Amplification | Passive, one channel of a SSOUNDS D24X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 1,200 W |
| Nominal impedance | 8 Ω |
| Crossover | System low-pass 120 Hz (80 – 150 Hz selectable in the system DSP) |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− SUB · 2+/2− not linked |
| Mounting | M20 pole socket · recessed handles |
| Dimensions (H × W × D) | 430 × 500 × 500 mm |
| Net weight | 31.2 kg / 69 lb |
| Enclosure | 15 mm birch · Polyurea · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
| Datasheet | Download |
| Enquire | Request quote |
