SSOUNDS M-4
| Specification | SSOUNDS M-4 SS-M4 |
|---|---|

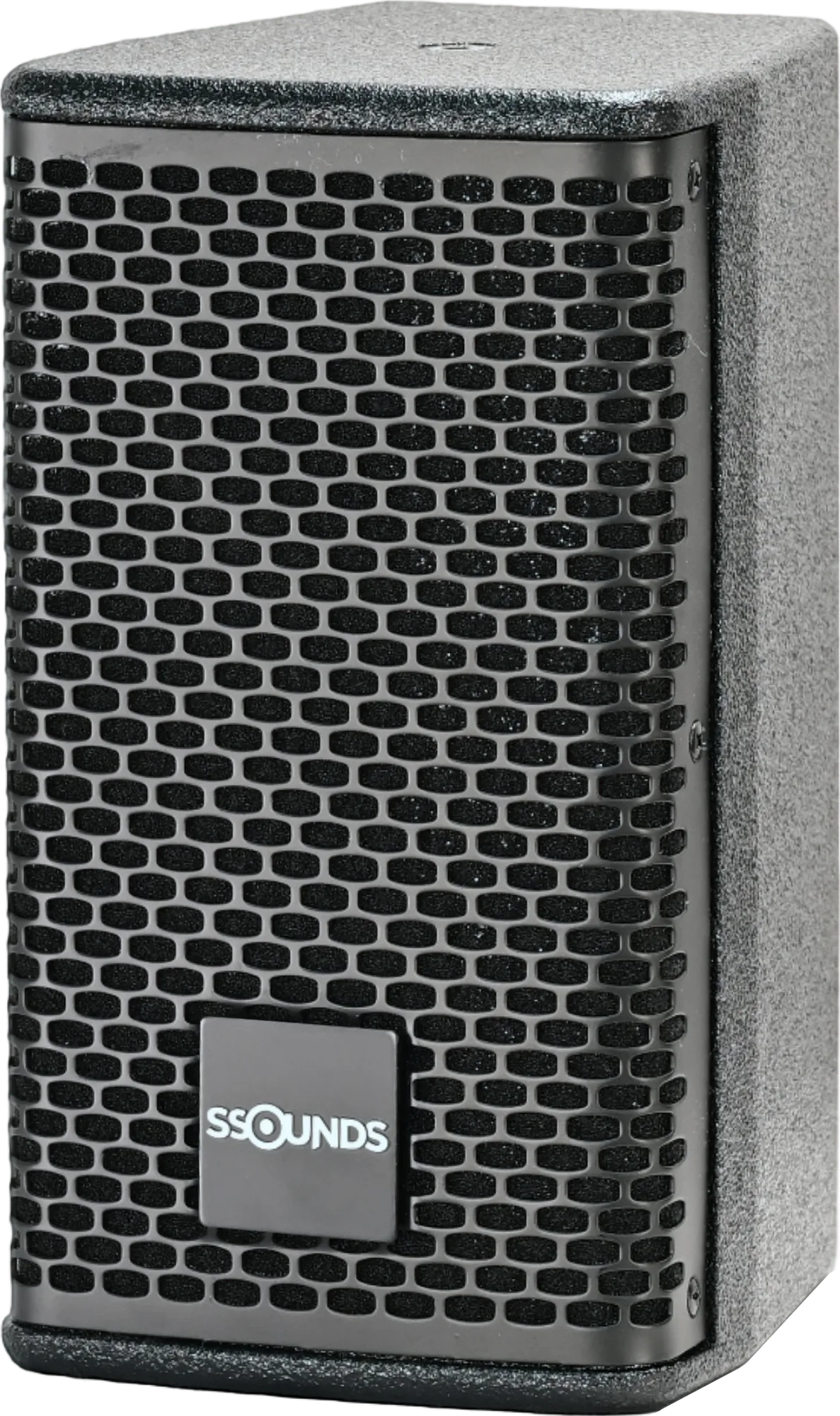

| Image |  |
| Brand | SSOUNDS |
| Configuration | 2-way passive full-range |
| Type | Passive 2-Way Coaxial Speaker |
| Frequency response | 120 Hz – 20 kHz |
| Driver Configuration | 4" woofer + 0.75" tweeter |
| Coverage (H × V) | 110° × 110° |
| Maximum SPL | 116 dB peak |
| Frequency Response | 100 Hz – 20 kHz |
| Sensitivity | 88dB (1W/1m) |
| Low–mid | 1 × 4″ driver |
| Nominal Impedance | 8Ω |
| High frequency | 1 × 0.75″ compression tweeter |
| Programme Power | 60W |
| Mounting | Surface / flush-mount (bracket included) |
| Power handling | 80 W AES / 320 W peak |
| Connectors | Screw terminal |
| Nominal impedance | 8 Ω / 16 Ω |
| Crossover | Passive |
| Dimensions (H×W×D) | 165 × 165 × 105mm |
| Weight | 1.2kg |
| Enclosure | Multi-laminate · textured paint |
| Finish | Textured paint + steel grille · M10 rigging |
