SSOUNDS · SS-M4
SSOUNDS M-4
Ultra-compact 4″ full-range — discreet fill and foreground audio with M-rigging.
Request Quote
installfillcompactcommercial

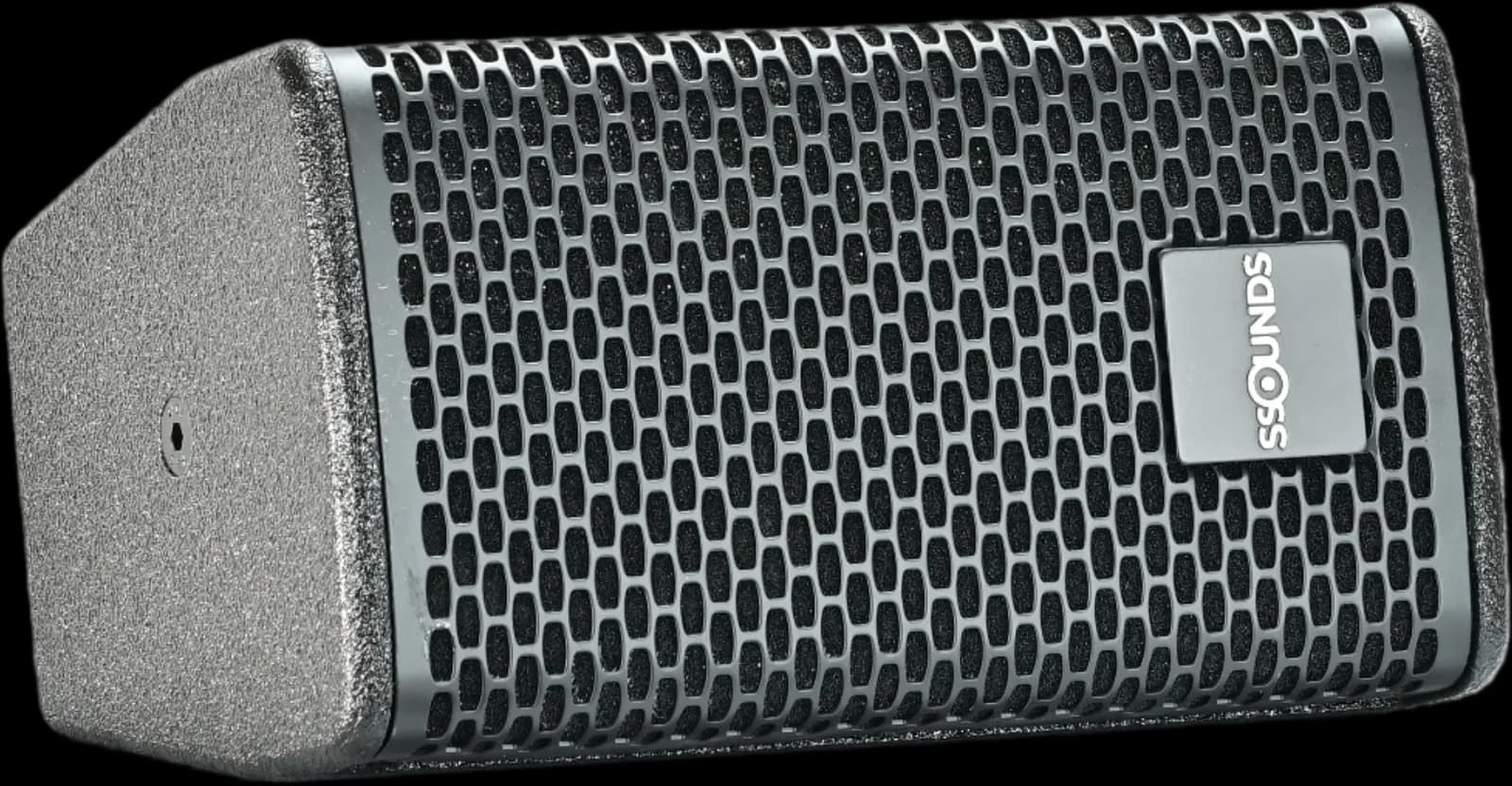

The M-4 is an ultra-compact 4″ full-range cabinet for discreet fill, delay and foreground music. Integrated handles and M-rigging make it fast to fly or pole-mount in retail, hospitality and worship spaces.
Specifications
Engineering data — request the full datasheet for tender docs.
Acoustic
- Configuration
- 2-way passive full-range
- Frequency response
- 120 Hz – 20 kHz
- Coverage (H × V)
- 110° × 110°
- Maximum SPL
- 116 dB peak
- Frequency Response
- 100 Hz – 20 kHz
- Sensitivity
- 88 dB (1W/1m)
- Sensitivity
- 88dB (1W/1m)
General
- Type
- Passive 2-Way Coaxial Speaker
- Driver Configuration
- 4" woofer + 0.75" tweeter
- Mounting
- Surface / flush-mount (bracket included)
Electrical
- Nominal Impedance
- 8Ω
- Programme Power
- 60W
- Power handling
- 80 W AES / 320 W peak
- Nominal impedance
- 8 Ω / 16 Ω
- Crossover
- Passive
- Connectors
- 2 × Speakon NL4
Components
- Low–mid
- 1 × 4″ driver
- High frequency
- 1 × 0.75″ compression tweeter
Connections
- Connectors
- Screw terminal
Physical
- Dimensions (H×W×D)
- 165 × 165 × 105mm
- Weight
- 1.2kg
- Enclosure
- Multi-laminate · textured paint
- Finish
- Textured paint + steel grille · M10 rigging
- Dimensions (H×W×D)
- 230 × 145 × 150 mm
- Weight
- 3.4 kg
