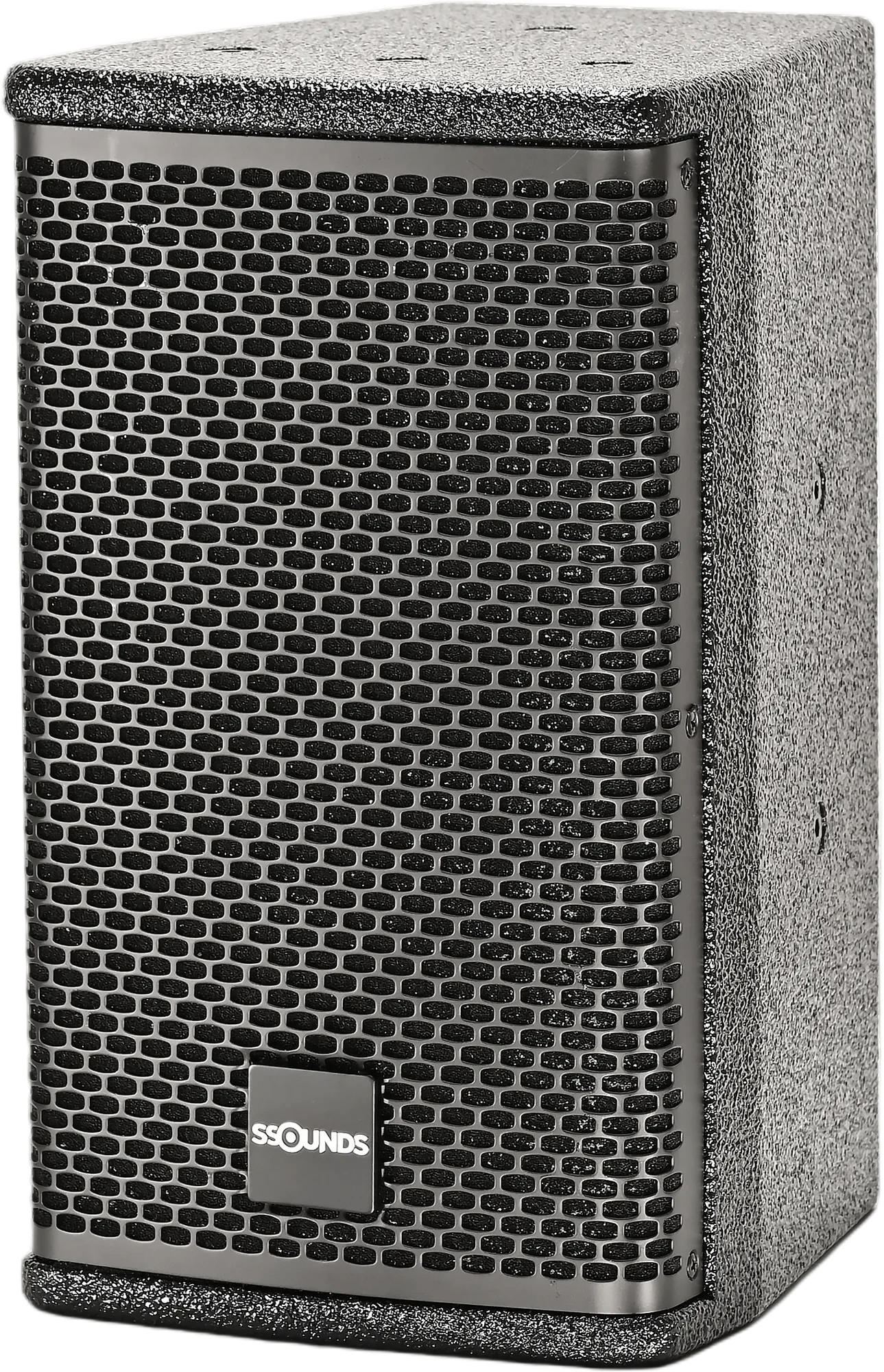

SSOUNDS M-6
| Specification | SSOUNDS M-6 SS-M6 |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | Passive 2-way full-range |
| Low frequency | 1 × 6.5″ driver |
| High frequency | 1 × 1″ compression driver |
| Frequency response | 75 Hz – 20 kHz (−10 dB) |
| Coverage | 100° × 100° |
| Maximum SPL | 119 dB peak @ 1 m |
| Sensitivity | 93 dB (1 W @ 1 m) |
| Amplification | Passive, one channel of a SSOUNDS D14X system DSP amplifier per cabinet (4 cabinets per amplifier) |
| Recommended amplifier power | 300 W |
| Nominal impedance | 8 Ω |
| Crossover | Passive |
| Connectors | 2 × NL4 speakON (in / link) |
| Pin map | 1+/1− full range · 2+/2− not linked |
| Mounting | M8 inserts · wall bracket |
| Dimensions (H × W × D) | 330 × 210 × 220 mm |
| Net weight | 6 kg / 13 lb |
| Enclosure | Multi-laminate · textured paint · steel grille |
| Certifications | CE · TÜV · EAC · WEEE |
| Datasheet | Download |
| Enquire | Request quote |
