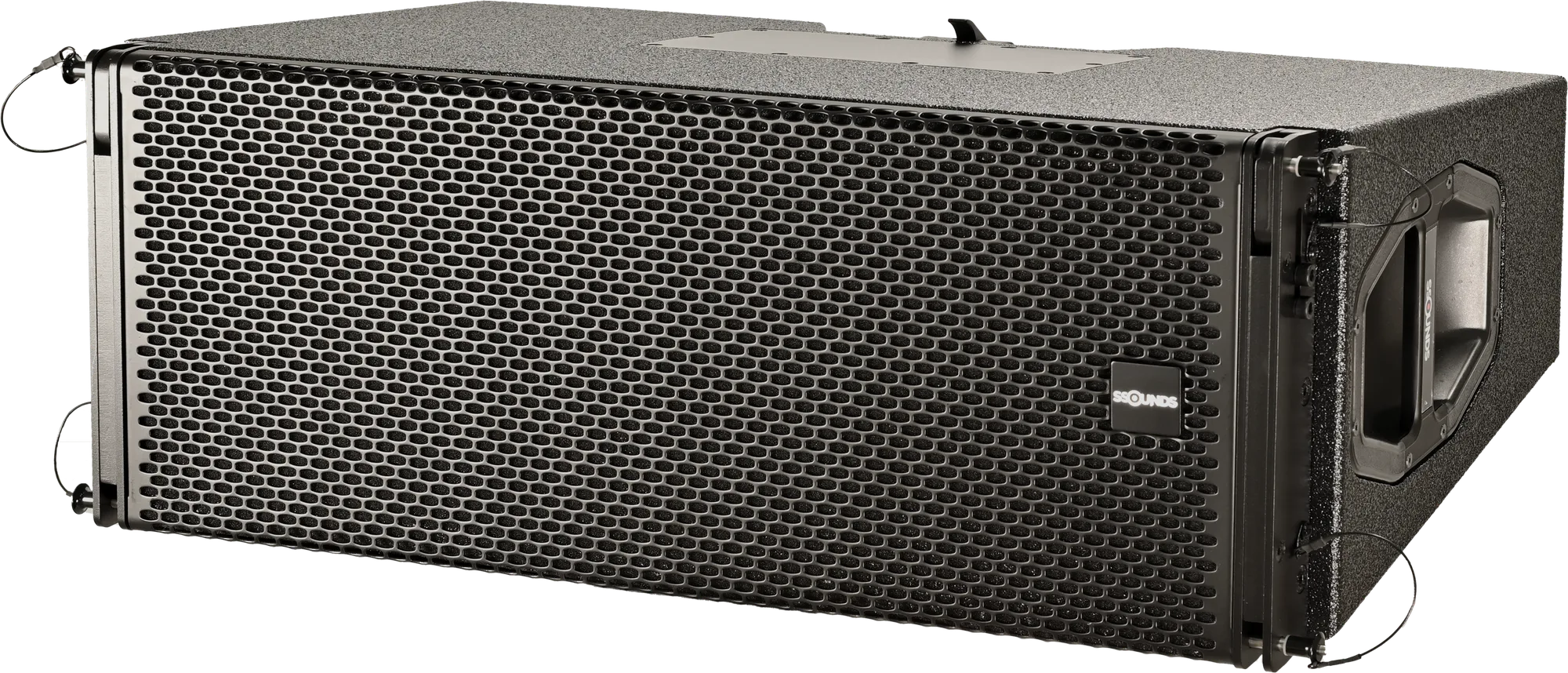

SSOUNDS XTO 10P
| Specification | SSOUNDS XTO 10P SS-XTO-10P |
|---|---|
| Image |  |
| Brand | SSOUNDS |
| Type | 3-way line-array element · quad-amplified |
| Low frequency | 2 × 10″ cone drivers, dipolar arrangement · 16 Ω |
| Mid frequency | 1 × 8″ horn-loaded cone driver · 16 Ω |
| High frequency | 2 × 2.7″ diaphragm compression drivers on isophasic waveguide · 16 Ω |
| Frequency response | 48 Hz – 20 kHz (−10 dB) |
| Coverage | 100° × 8° |
| Directivity control | Nominal horizontal maintained to 370 Hz |
| Sensitivity | 105 dB SPL nominal (1 W @ 1 m) |
| Maximum SPL | 144 dB peak @ 1 m |
| Recommended amplifier power | 2,320 W |
| Nominal impedance | LF1 16 Ω · LF2 16 Ω · MF 16 Ω · HF 16 Ω |
| Crossover | 220 Hz · 900 Hz |
| Amplification | Quad-amplified by SSOUNDS D24X system DSP amplifier (D14X drives 2 cabinets) |
| Cabinets per amplifier | 2 per D14X · up to 4 per D24X · four 16 Ω sections in parallel present 4 Ω per channel |
| Connectors | 2 × NL8 speakON (in / link) |
| Pin map | 1+/1− LF1 · 2+/2− LF2 · 3+/3− MF · 4+/4− HF |
| System | High-grade titanium 3-point captive rigging · colour-coded splay pins |
| Splay angles | 0° – 14° adjustable |
| Array compatibility | Shares cabinet dimensions and rigging with XTO 8P, locks directly as far-throw and downfill; locks with XTO 12P via transition hardware |
| Max per array | Up to 24 elements per hang |
| Dimensions (H × W × D) | 320 × 780 × 560 mm |
| Net weight | 38 kg / 84 lb |
| Enclosure | 15 mm Baltic birch · Polyurea finish |
| Grille | Powder-coated perforated steel with acoustic cloth backing |
| Handles | 2 side · 2 rear recessed |
| Colour | Black (custom RAL on request) |
| Certifications | CE · TÜV (rigging system) · EAC · WEEE |
