SSOUNDS · SS-XTO-10P
SSOUNDS XTO 10P
Compact 3-way, quad-amplified 10″ line array — 100° constant directivity, 144 dB+ peak SPL.

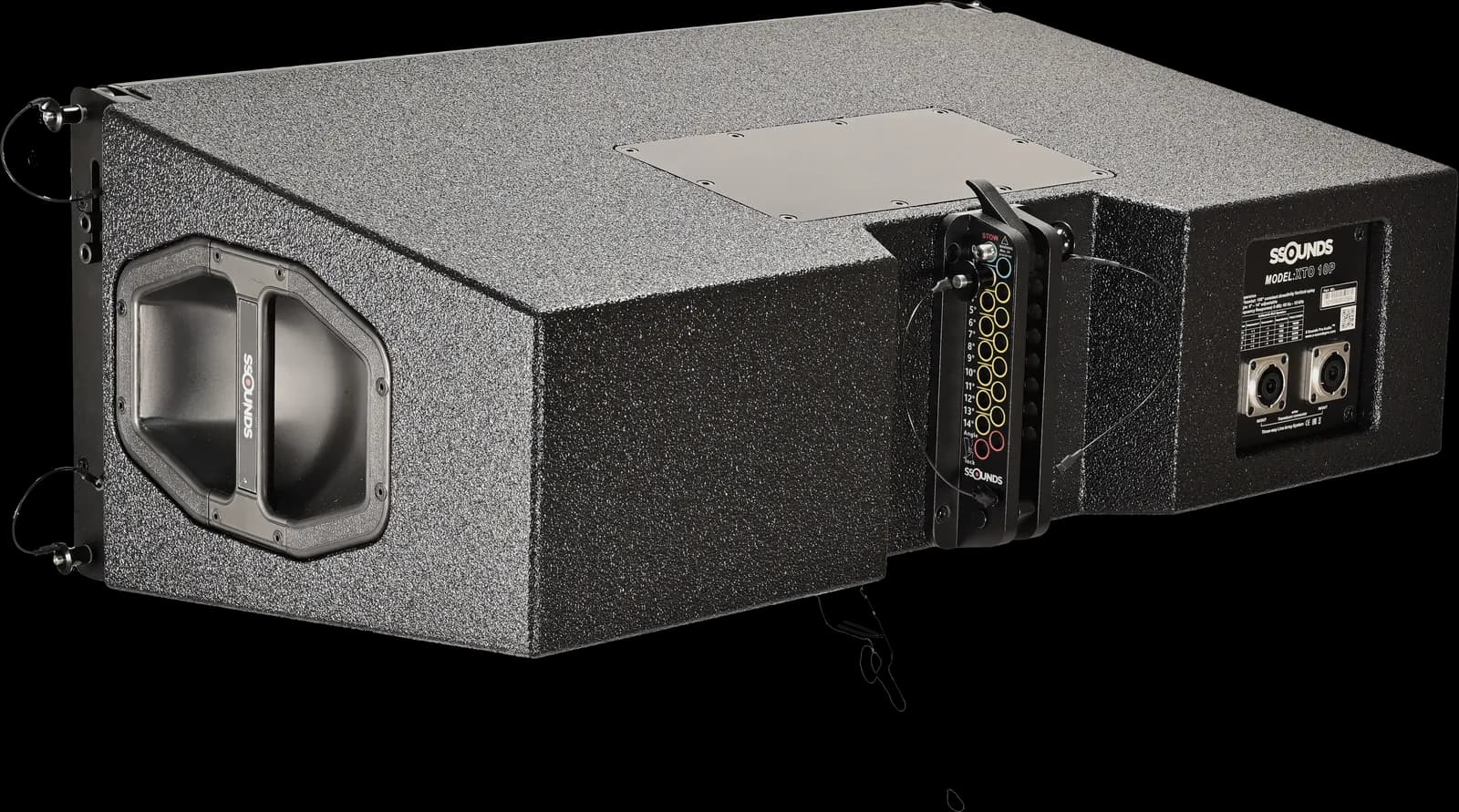

The XTO 10P is SSOUNDS' compact three-way, quad-amplified line-array element with fixed 100° constant-directivity coverage — the same engineering and rigging as the flagship XTO 12P in a lighter package. Dual 10″ neodymium LF drivers, a midrange section and a 3″ (1.4″ exit) HF compression driver deliver 144 dB+ peak SPL across 45 Hz – 18 kHz (−5 dB), with 0°–7° adjustable vertical splay. Program power totals 2,100 W (peak 4,200 W); LF/MF 8 Ω, HF 16 Ω. 8-pole-in / 8-pole-out Socapex multicore.
Specifications
Engineering data — request the full datasheet for tender docs.
Acoustic
- Configuration
- 3-way, quad-amplified line-array element
- Frequency response
- 45 Hz – 18 kHz (−5 dB)
- Coverage (H × V)
- 100° constant directivity (H) · 0°–7° adjustable splay (V)
- Frequency Response
- 80 Hz – 20 kHz
- Maximum SPL
- 144 dB+ peak
- Sensitivity
- 105 dB (1W/1m)
- Sensitivity
- 98dB (1W/1m)
- Peak SPL
- 129dB
- Coverage (H×V)
- 100° × 10°
General
- Type
- Passive Line Array Element
- Driver Configuration
- 1× 10" LF + 1× 1.4" HF compression driver
Components
- Low frequency
- 2 × 10″ neodymium
- Mid frequency
- 1 × 6.5″ neodymium
- High frequency
- 1 × 3″ (1.4″ exit) compression driver
Electrical
- Nominal Impedance
- 8Ω
- Programme Power
- 800W
- Program power
- 2,100 W (LF 2 × 480 W · MF 700 W · HF 440 W)
- Nominal impedance
- LF 8 Ω · MF 8 Ω · HF 16 Ω (quad-amp)
- Peak power
- 4,200 W (LF 2 × 960 W · MF 1,400 W · HF 880 W)
- Crossover
- Quad-amplified — external DSP/amplifier (LF1 · LF2 · MF · HF)
- Connectors
- 8-pole input + 8-pole output · Socapex multicore

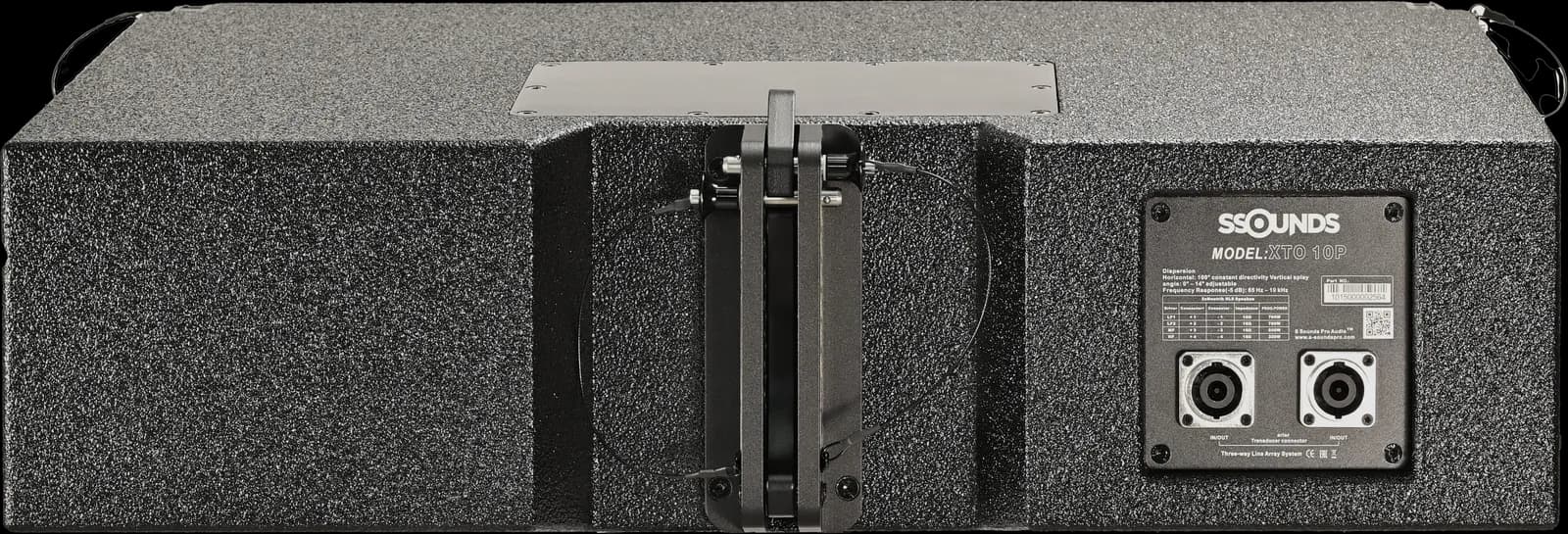

Connections
- Connectors
- 2× NL4 Speakon
- Input / output
- 8-pole input · 8-pole output (Socapex)
- Multicore
- Socapex compatible (quad-amp loom)
- Pin map A–H
- LF1 ± (A/B) · LF2 ± (C/D) · MF ± (E/F) · HF ± (G/H)
- Per-section
- LF 8 Ω / 480 W · MF 8 Ω / 700 W · HF 16 Ω / 440 W
Physical
- Dimensions (H×W×D)
- 580 × 200 × 300mm
- Weight
- 13.5kg
- Enclosure
- 15 mm Baltic birch · Polyurea
- Finish

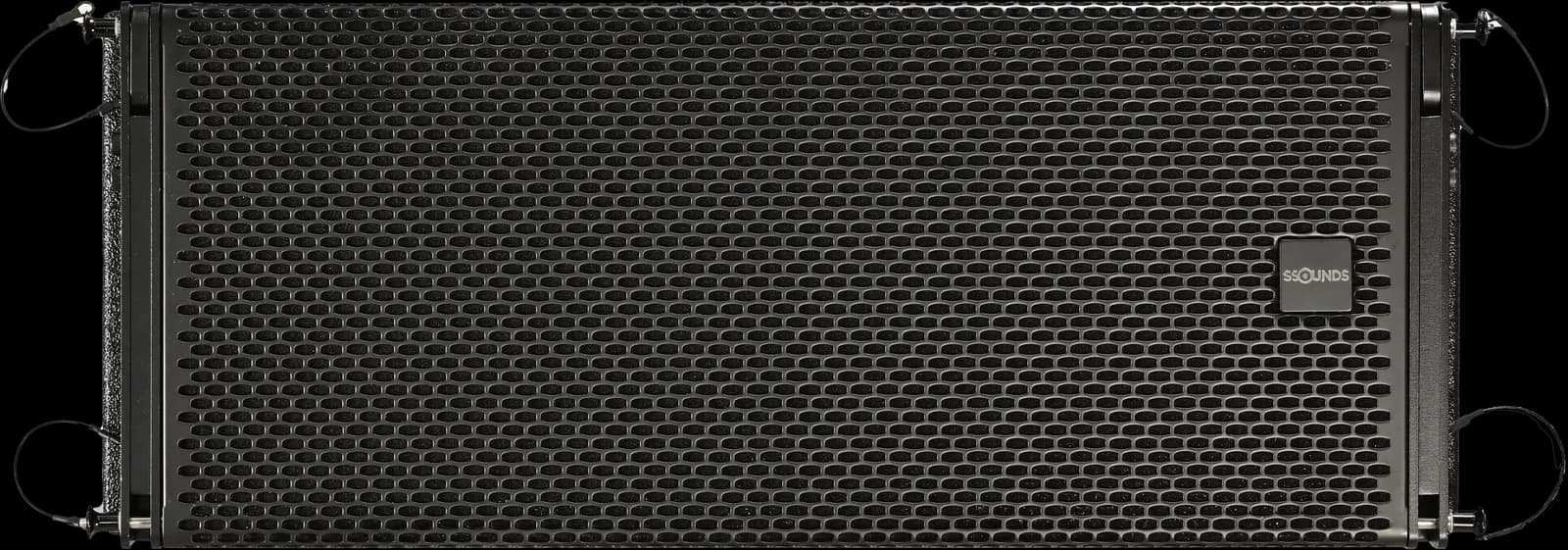

- Polyurea + powder-coat steel grille
- Dimensions (H×W×D)
- 320 × 780 × 560 mm
- Weight
- 38 kg

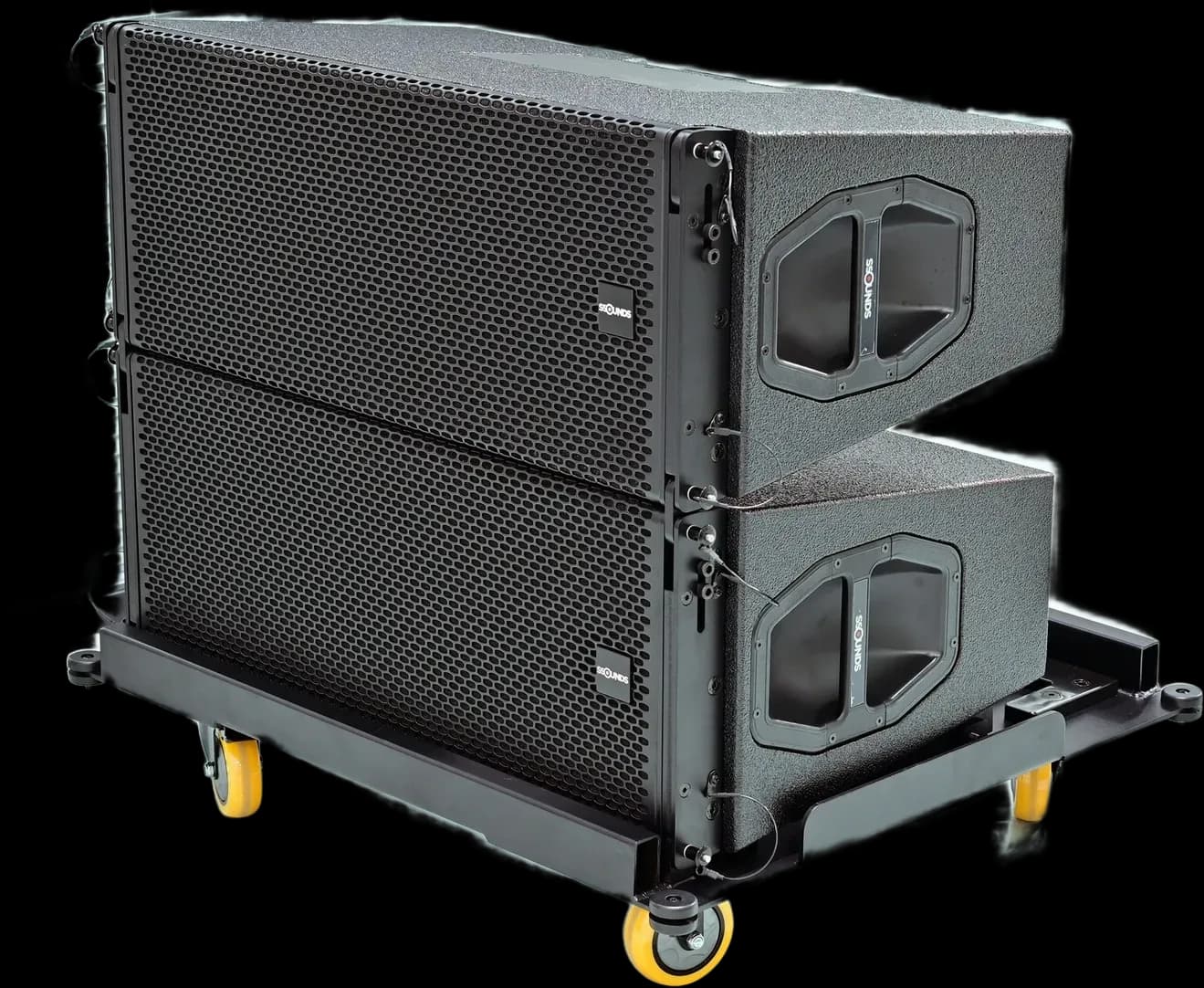

Rigging
- System
- Integrated 3-point flown frame · Fast-Set splay
- Splay angles
- 0° – 7° adjustable
