SSOUNDS XTO 14X
Elemento cardioide dual de 14″ de grande formato, 3 vias com quatro amplificadores, pico de 153 dB, um D34X por caixa.

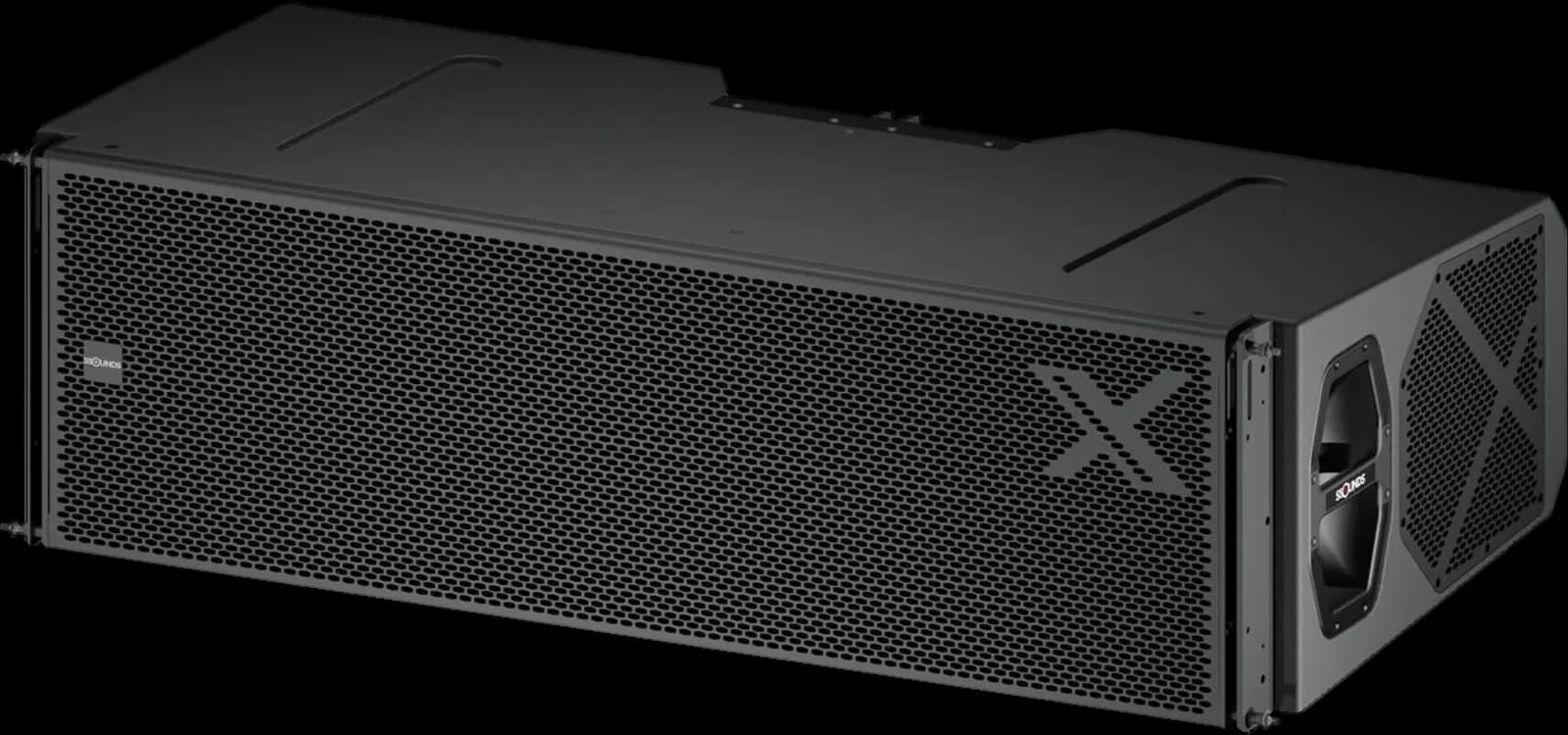

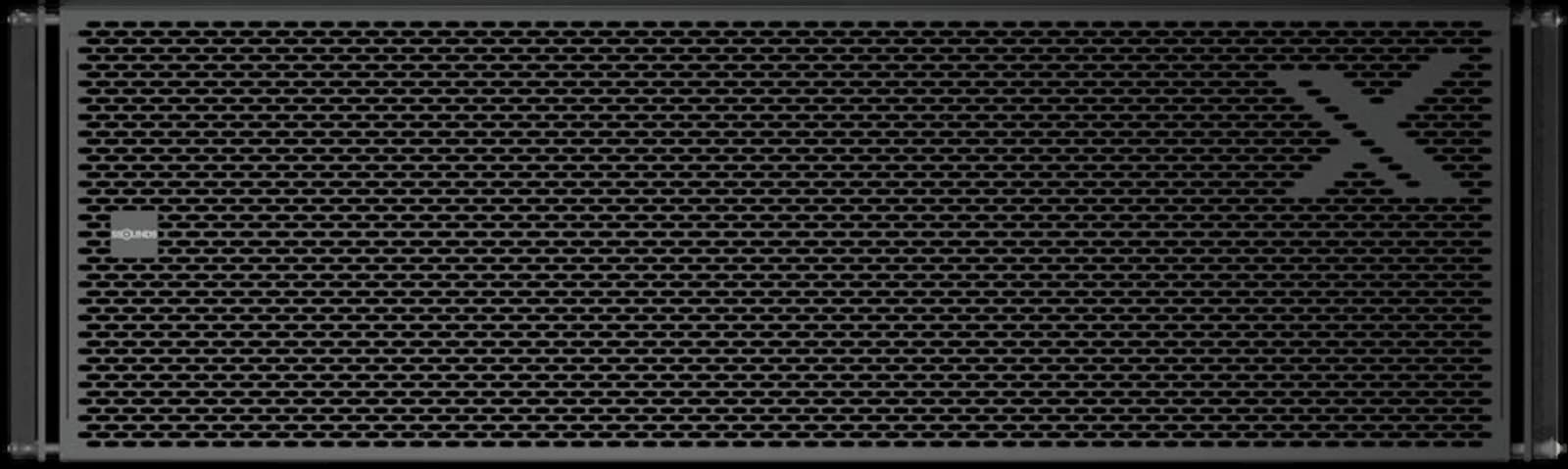

O XTO 14X é o maior elemento do Sistema XTO e a caixa para a qual a gama foi construída a terminar. Dois drivers de 14″ tratam das baixas frequências. O controlo cardioide vem de dois drivers de 10″ que disparam para o lado, cancelando a radiação traseira para que a parte de trás do palco se mantenha limpa sem uma segunda coluna apontada para trás. Um terceiro driver de 10″ com carga de corneta trata das médias frequências, e três drivers de compressão com bobina de 4″ funcionam em paralelo para a corneta. 153 dB de pico a partir de uma única caixa. Nada está em paralelo. Cada 14X leva o seu próprio D34X, quatro secções accionadas de forma independente, o que faz com que o shading de uma suspensão longa seja uma questão de preset e não de cablagem. Transporta o mesmo rigging de titânio de três pontos, o mesmo splay Fast-Set, o mesmo loom Socapex e a mesma biblioteca de presets que o resto do sistema, pelo que uma suspensão principal 14X e um outfill 12P são uma única decisão de design, não duas. Esta é uma caixa de estádio. Abaixo de 18.000 de capacidade, o 12P é normalmente a resposta certa.
Part of the XTO System
The largest element. Stadium main hangs, side-firing 10" cardioid cancellation, one D34X per box.
XTO stands for Xtended Touring Output. The large-format touring platform: the elements built for the longest throws and the highest output in the range, rigged and amplified as one system.
Key features
- Cardioid by design: 2 × 10″ side-firing drivers for rear cancellation
- 2 × 14″ low frequency drivers
- 1 × 10″ horn-loaded midrange
- 3 × 4″-coil compression drivers in parallel
- 153 dB peak @ 1 m
- 70° or 110° × 8° coverage
- One D34X per element: four sections, nothing paralleled
- Titanium 3-point captive rigging with Fast-Set splay
- 18 mm and 15 mm Baltic birch with Polyurea finish
Specifications
Engineering data. The conditions each figure is specified under are stated below the table.
General
- Type
- 3-way line-array element · quad-amplified · cardioid
- Certifications
- CE · TÜV (rigging system) · EAC · WEEE
Components
- Low frequency
- 2 × 14″ rear-loaded in angled end chambers
- Mid frequency
- 2 × 10″ at 45° plus 1 × 10″ horn-loaded
- High frequency
- 3 × 4″-coil compression drivers, parallel
Acoustic
Electrical
- Recommended amplifier power4
- 24,000 W (one D34X, 4 × 6,000 W @ 4 Ω)
- Crossover
- 220 Hz · 1,100 Hz
- Amplification
- Quad-amplified by SSOUNDS D34X system DSP amplifier (LF · MF-direct · MF-horn · HF) · one D34X per element · nothing paralleled
- Cabinets per amplifier
- 1 · every element shaded independently
Connections
- Connectors
- 8-pole Socapex input + link output
Rigging
- System
- High-grade titanium 3-point captive rigging · Fast-Set splay
- Splay angles
- 0° – 6° adjustable (estimated, pending rigging test data)
- Array compatibility
- Locks with XTO 12P, XTO 10P and XTO 8P via transition hardware
Physical
Measurement conditions
- Maximum SPL is the peak level at 1 m, driven with pink noise at crest factor 4 to the clipping point of the recommended amplifier, with the SSOUNDS system preset applied. Full-range enclosures are specified under free-field conditions; figures marked half-space are specified over a reflecting plane, the condition subwoofers are deployed in, which adds approximately 6 dB.
- Frequency response is specified on axis at 1 m in a free field. The tolerance the figure is referenced to is stated alongside it; where no tolerance is given, the figure is the −6 dB bandwidth.
- Coverage angles are nominal −6 dB values averaged across the pass band. Per-octave directivity data is available from SSOUNDS system design support for prediction and modelling.
- Recommended amplifier power is the amplifier output SSOUNDS specifies for this enclosure, driven with the SSOUNDS system preset. It guides amplifier selection and is not an AES power-handling rating for the transducers.
- Net weight excludes packaging, flight case, accessories and optional rigging hardware.
- Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
- All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.
System operation
Recommended: one SSOUNDS D34X per XTO 14P. The amplifier's four channels drive the four sections of a single cabinet and nothing is paralleled, so every element in a hang can be gain- and HF-shaded on its own. That is the difference between the 14P and the rest of the range. On XTO 12P two cabinets share a D24X, which is ample resolution for most hangs. On a stadium-length 14P hang the extra resolution is the point: the top of the array and the bottom of the array are doing different jobs. Load the XTO 14P preset and run the 8-pole Socapex loom carrying the four sections. The 14P locks to XTO 12P, 10P and 8P through the standard transition hardware, so a 14P main section can carry a 12P outfill or a 10P downfill in the same hang.
