1 / 5SSOUNDS · SS-LS208

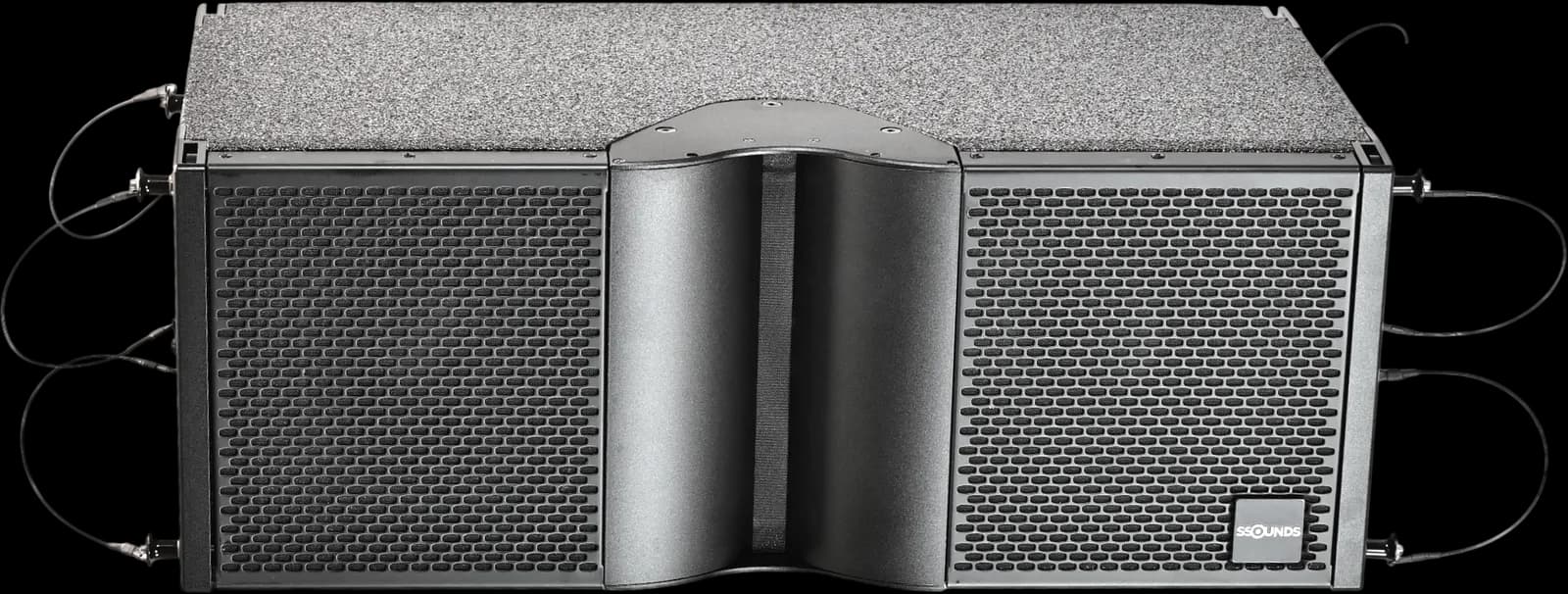

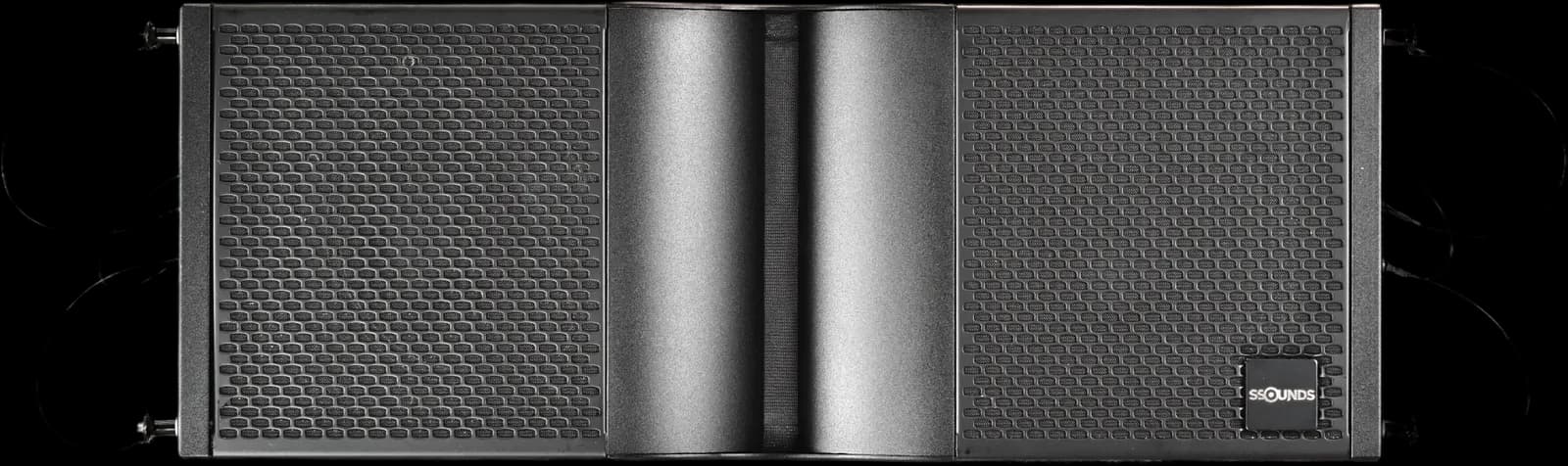

SSOUNDS LS208
컴팩트한 듀얼 8인치 라인 어레이 요소로, 141dB 피크, 55Hz 도달 범위, 100° 커버리지를 26kg 박스에서 제공합니다.
LS208은 SSOUNDS 라인 어레이 성능을 컴팩트한 듀얼 8인치 요소에 담아 극장, 예배당, 기업 AV 및 클럽 설치에 적합합니다. 100° 수평 커버리지와 0°~10° 스플레이는 짧은 걸이에서도 일관된 청중 커버리지를 제공하며, 통합 리깅으로 빠른 배치가 가능합니다. LS 시리즈 서브우퍼와 완벽하게 확장되며, 패밀리의 보이싱을 공유하여 시스템 설계가 용이합니다.
Part of the LS System
Compact two-way element for shorter arrays, downfill and delay positions.
LS stands for Line Source. A line source, in the acoustic sense: coupled elements radiating as one continuous source, so vertical pattern is set by the length of the array rather than by the individual cabinet.
Key features
- 2 × 8″ LF and a 3″ compression driver on an isophasic waveguide
- 141 dB peak SPL, 55 Hz – 20 kHz (−10 dB), from a 26 kg cabinet
- 100° × 8° nominal dispersion
- Bi-amplified over NL4, crossed at 900 Hz
- High-grade titanium captive rigging with 0°–10° splay
- Up to 16 elements per hang
Specifications
Engineering data. The conditions each figure is specified under are stated below the table.
General
- Type
- 2-way compact line-array element · bi-amplified
- Certifications
- CE · TÜV (rigging system) · EAC · WEEE
Components
- Low frequency
- 2 × 8″ cone drivers with phase plug, dipolar arrangement · 8 Ω
- High frequency
- 1 × 1.4″ exit compression driver, 3″ coil · 16 Ω
Acoustic
Electrical
Connections

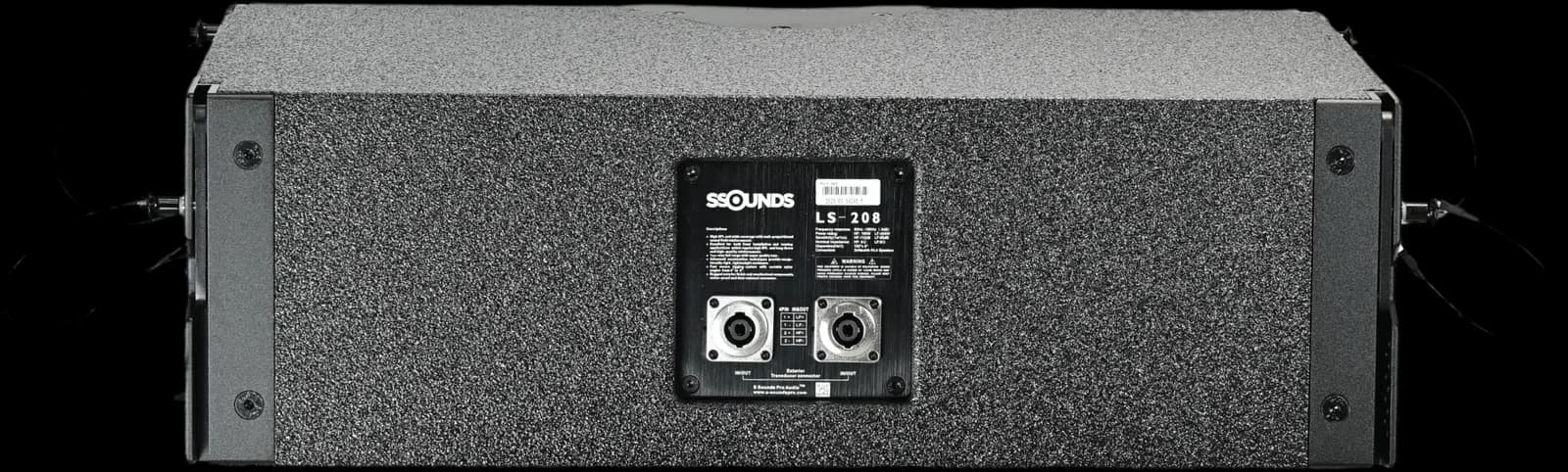

- Connectors
- 2 × NL4 speakON (in / link)
- Pin map
- 1+/1− LF · 2+/2− HF

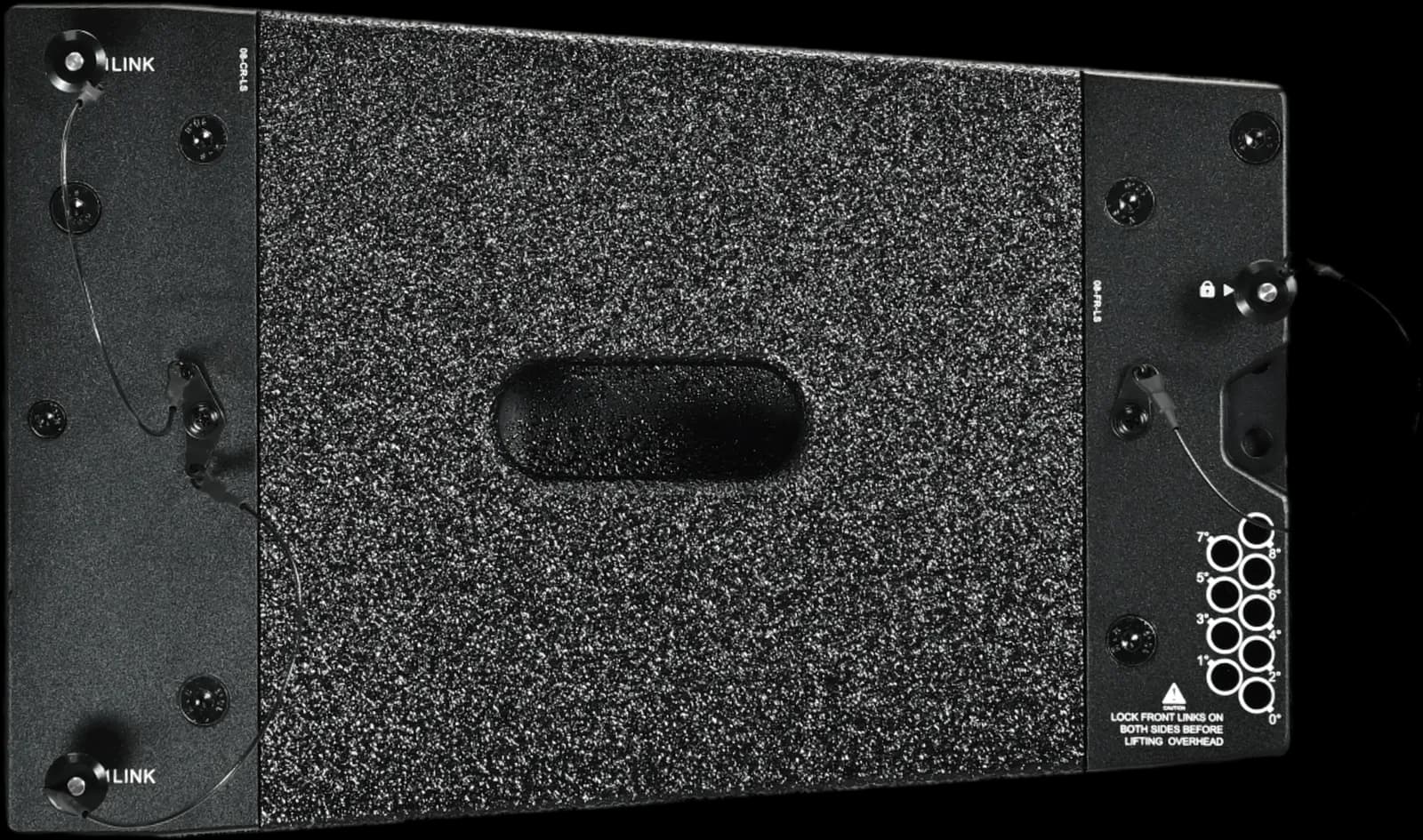

Rigging
- System
- High-grade titanium captive 3-point rigging
- Splay angles
- 0° – 10° adjustable
- Max per array
- Up to 16 elements per hang
Physical
Measurement conditions
- Maximum SPL is the peak level at 1 m, driven with pink noise at crest factor 4 to the clipping point of the recommended amplifier, with the SSOUNDS system preset applied. Full-range enclosures are specified under free-field conditions; figures marked half-space are specified over a reflecting plane, the condition subwoofers are deployed in, which adds approximately 6 dB.
- Frequency response is specified on axis at 1 m in a free field. The tolerance the figure is referenced to is stated alongside it; where no tolerance is given, the figure is the −6 dB bandwidth.
- Sensitivity is specified at 1 W into the nominal impedance at 1 m on axis, averaged across the pass band of the enclosure.
- Coverage angles are nominal −6 dB values averaged across the pass band. Per-octave directivity data is available from SSOUNDS system design support for prediction and modelling.
- Recommended amplifier power is the amplifier output SSOUNDS specifies for this enclosure, driven with the SSOUNDS system preset. It guides amplifier selection and is not an AES power-handling rating for the transducers.
- Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
- Net weight excludes packaging, flight case, accessories and optional rigging hardware.
- Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
- All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.
Directivity
Directivity computed by the SSOUNDS system prediction engine from this product's driver complement, the same dataset the printed data sheet uses. 1/24-octave band-power resolution; values are dB relative to on-axis.
System operation
Recommended: SSOUNDS D14X, one channel pair per LS208 in bi-amplified mode with the LS208 preset loaded.
Downloads
Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.
- Technical data sheetFull specification set with the measurement conditions for each figure, modelled response curves, safety notices and warranty terms.PDF · SS-DS-LS208-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
- Technical data sheet, in your browserThe same document as a page, if you would rather read it here or print it yourself.HTML print view · SS-DS-LS208-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
- Architectural and engineering specificationThe “shall be” paragraph for tender documents and bills of quantities, written from this product’s own specification rows. Section of the data sheet.HTML section · SS-DS-LS208-EN-A4
- User manualUnpacking, connection, installation, operating limits, maintenance schedule and troubleshooting for this model.HTML print view · SS-UM-LS208-EN-A4 · Rev. 2608 · Issued 21 Aug 2026
- Directivity table, horizontal axisPolar data in dB relative to on axis, in the layout a measurement rig exports, for prediction and modelling. Computed by the SSOUNDS prediction engine, not measured in an anechoic chamber.CSV download
- Directivity table, vertical axisPolar data in dB relative to on axis, in the layout a measurement rig exports, for prediction and modelling. Computed by the SSOUNDS prediction engine, not measured in an anechoic chamber.CSV download
Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
