SSOUNDS · SS-NF6

SSOUNDS NF6

Active two-way near-field studio monitor, 6″ woofer and 1.5″ tweeter, 45 Hz to 45 kHz, bi-amplified.

Request a Quote

StudioMonitorActiveNear-field

Request a Quote Talk to an Engineer Compare

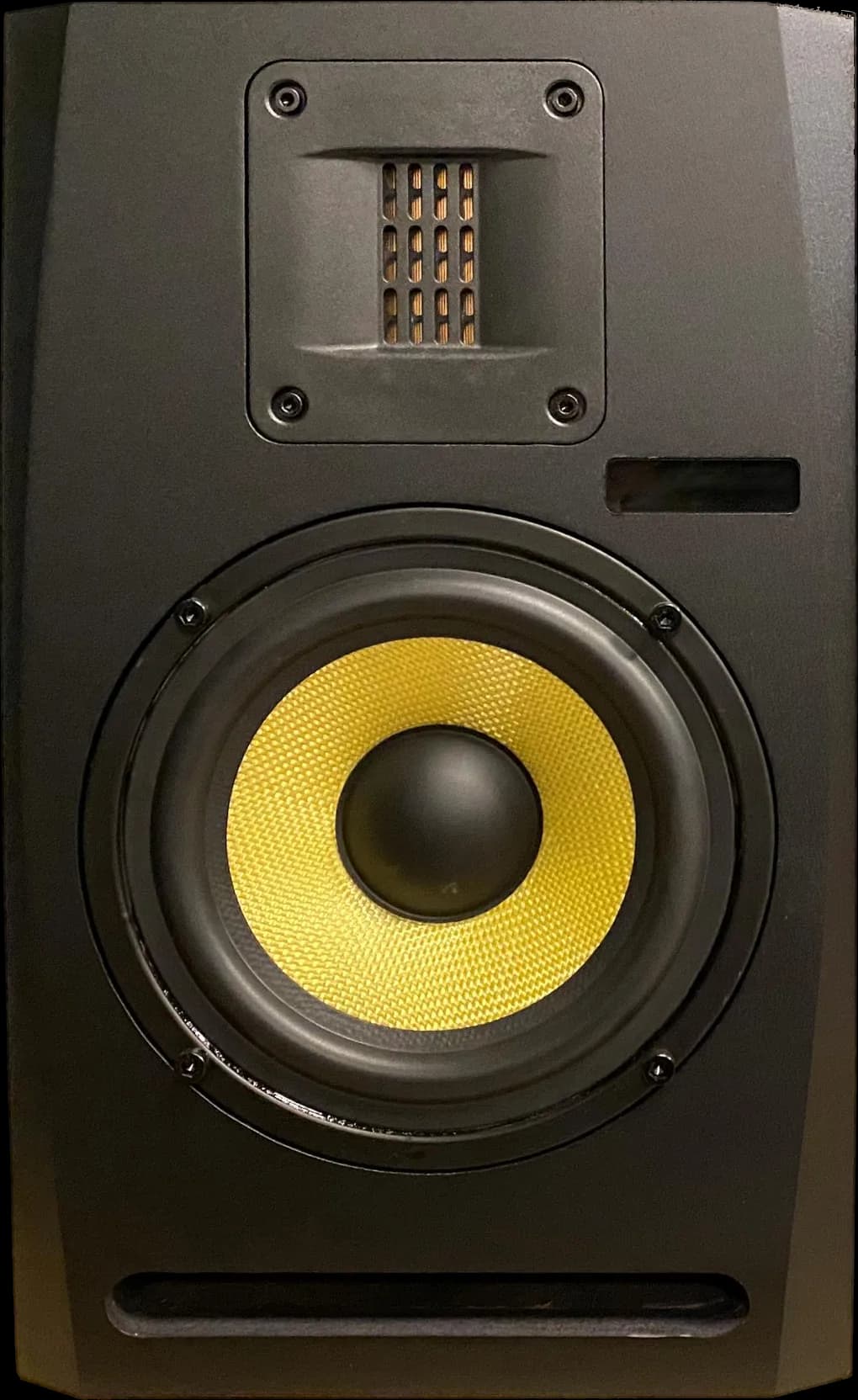

A mix only translates if the monitor tells the truth at the listening position. The NF6 is an active two-way near-field monitor: a 6″ woofer and a 1.5″ high-frequency driver, each with its own amplifier, 70 W for the low end and 60 W for the top, in an MDF cabinet. It reaches 45 Hz to 45 kHz with a 100 dB A-weighted signal-to-noise ratio and takes a balanced XLR or ¼″ TRS input. We specify it for project studios, edit suites, broadcast and podcast rooms, and the engineer's position in a church or venue control room.

NF stands for Near-Field. Active monitors voiced for the listening position a metre or two away, where an engineer judges a mix, with an amplifier for each driver built in.

Key features

1 × 6″ woofer plus 1 × 1.5″ high-frequency driver
45 Hz to 45 kHz frequency response
Bi-amplified: 70 W LF, 60 W HF
100 dB signal-to-noise ratio (A-weighted)
XLR and ¼″ TRS inputs
MDF cabinet, 8.5 kg

Specifications

Engineering data. The conditions each figure is specified under are stated below the table.

General

Type: Active 2-way near-field studio monitor

Components

Drivers: 1 × 6″ woofer · 1 × 1.5″ high-frequency driver

Acoustic

Frequency response: 45 Hz – 45 kHz
Frequency range: 40 Hz – 45 kHz

Electrical

Amplifier (RMS): LF 70 W · HF 60 W
Mains: 220 V ~ 50/60 Hz

Performance

Signal-to-noise ratio: 100 dB (A-weighted)

Connections

Inputs: XLR · ¼″ TRS
Input impedance¹: 20 kΩ balanced · 10 kΩ unbalanced

Physical

Dimensions (H × W × D)³: 370 × 220 × 260 mm
Net weight²: 8.5 kg / 19 lb
Enclosure: MDF, vinyl finish

Measurement conditions

Nominal impedance is the manufacturer's rating for amplifier load calculation; minimum impedance across the operating band may be lower.
Net weight excludes packaging, flight case, accessories and optional rigging hardware.
Dimensions are stated in millimetres and exclude protruding rigging hardware, handles and connector panels unless noted.
All figures are typical values for production units specified under the conditions above. Individual units may vary within published tolerances.

Downloads

Product documentation, free to open. No registration, no form. The data sheet is a PDF rendered from the page below it; the manual is a print page, so use your browser to print it or save it as PDF.

Loudspeaker data files for prediction software (GLL and CLF for EASE), 2D and 3D drawings and certification documents are issued on request. Email support@s-soundspro.com and we will send the current release for this model.
